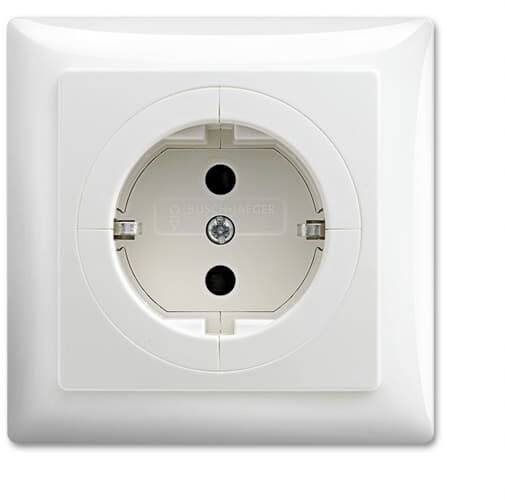

Busch-Jaeger Insert PG socket Pure white (RAL 9010), White 2CKA002011A6244
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Busch-Objectsocket®
- Busch & Jaeger Switch Product Range
Technical specifications
- Number of units: 1
- Text Box/Label Area: No.
- Impact strength: IK03
- With hinged lid: No.
- Fastening method: Claw/screw fastening
- Halogen-free: Yes
- Transparent: No.
- Material quality: Thermoplastic
- RAL number (similar): 9010
- Surface type: Glossy
- Surface: Untreated
- Colour: white
- Material: Plastic
- Min Depth of the appliance socket: 40
- Suitable for protection class (IP): IP20
- Mounting type: Flush-mounted
- Design: SCHUKO
- Nominal voltage 250
- Nominal current 16
- Antibacterial treatment: No.
- Ejection mechanism: Yes
- Rated fault current: 0
- Number of sockets switchable: 0
- With function lighting: No.
- With orientation lighting: No.
- With built-in USB power supply: No.
- Protective conductor contact round: No.
- For "difficult conditions" (according to VDE): No.
- Insulated mounting: Yes
- With loop-through function: Yes
- With increased touch protection: Yes
- Earthing contact: Yes
- Special power supply: Without special power supply
- Twisted central insert: No.
- With on/off switch: No.
- Number of active contacts (round): 2
- Number of active contacts (flat): 0
- Fault current protection: No.
- With micro fuse: No.
- Surge protection: No.
- Frequency: 50;;50
- Connection type: Plug-in terminal
- With signal lamp: No.
- Number of phases: 1
- Lockable: No.
- Printed/labeled: Without printed text
- Number of modules (for modular design): 1
- Device width 71
- Device height: 12
- Device depth: 32
- Type
Busch-Objectsocket®
- Switch type function
PG socket
- Product type
Switch product range
- Switch type component
Insert
- Factory colour
Pure white (RAL 9010)
White
- Nominal voltage
250 V
IP20
- Content
1 pc(s)
- Motif
without pressing
- Material
Thermoplastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2333339 Busch-Jaeger Insert PG socket Pure white (RAL 9010), White 2CKA002011A6244
User & Safety Instructions
User & Safety Instructions 2333339 Busch-Jaeger Insert PG socket Pure white (RAL 9010), White 2CKA002011A6244
Description
With plug connection.2-pin (2 P + E)Complete cover.Incl. Central disc with pull-out mechanism.
This text is machine translated.
This text is machine translated.
