Name: Busch-Jaeger Insert Surge protection Impuls 2CKA002011A3889 1 pc(s)
Brand: Busch-Jaeger
SKU: 3543247

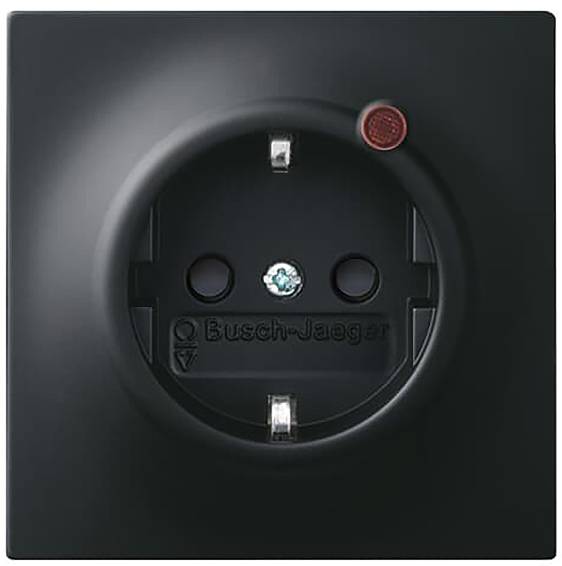

A black electrical outlet with two round holes and a grounding pin slot, featuring a red indicator light on the top right corner.

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger socket insert us, black mat 2310EUGL/VA-775-11

Busch & Jaeger Switch Product Range

Technical specifications

Design: Socket CEE 7/3 (type F)
Mounting type: Flush-mounted
Material: Plastic
Colour, black
Surface protection: Painted
Impact strength: IK03
Transparent: No.
Surface design: Glossy
Number of phases: 1
Nominal voltage: 250 V
Nominal current: 16 A
Type of connection: Screw terminal
With hinged cover: No.
Halogen-free: Yes
With signal lamp: Yes
Imprint/marking: Without
Min Depth of the device socket 32 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
Mounting type: Claw / screw attachment
Antibacterial treatment: No.
RAL number (similar): 9005
Suitable for protection class (IP): IP20
Number of units: 1
Text field/label area: No.
With orientation light: No.
Device width 71 mm
Device height 71 mm
Device depth 45 mm
Insulated installation: Yes
For "difficult conditions" (according to VDE): No.
Lockable: No.
Earthed: Earth clips
Number of active contacts (round): 2
With increased protection against accidental contact: No.
Metallic color: No.
Ejection mechanism: No.
With function light: No.
Voltage surge protection: Yes
Fault current protection: No.
With micro-fuse: No.
Special power supply: Without special power supply
With loop-through function: Yes
With On / Off switch: No.
Turned central insert: No.

Type: Busch-Jaeger socket insert us, black mat 2310EUGL/VA-775-11

Switch type function: Surge protection

Product type: Recessed sockets

Switch type component: Insert

Type series: Impuls

Content: 1 pc(s)

Similar RAL: 9005

Material: Thermoplastic

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3543247 Busch-Jaeger Insert Surge protection Impuls 2CKA002011A3889 1 pc(s)

Description

2-pin (2 P + E) With integrated and external signal contact. ISN = 5 kA Device protection for technically sensitive devices such as computers, entertainment electronics and building technology. Reduces effective voltage surges between sub-distribution and protective contact® socket inserts. Surge arrester test category: Classification of type 2 terminals according to VDE 0620-1 approved as connection terminals.
Design line: Impulse
