Name: Busch-Jaeger Metal 2CKA006800A3044 1 pc(s)
Brand: Busch-Jaeger
SKU: 3546412

Highlights & Details

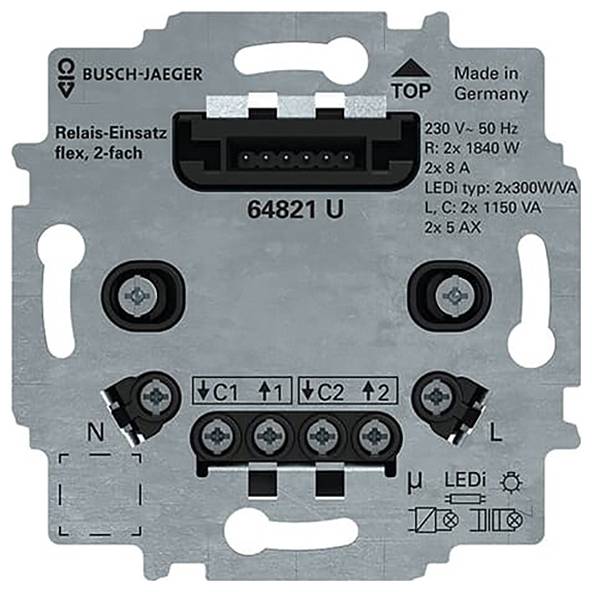

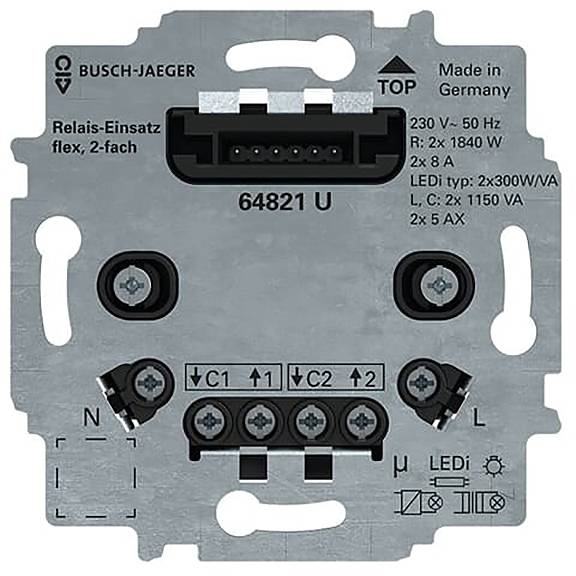

Busch-Jaeger series relay insert Flex 64821 U

Busch & Jaeger Switch Product Range

Technical specifications

Rated current 8 A
Design: Relay and HVAC relay
Mounting type: Flush-mounted
Material: Plastic
Colour, black
Surface protection: Galvanised
Transparent: Yes
Surface design: Glossy
Nominal voltage: 230 V
Frequency: 50 Hz
Power loss: 0.3 W
Number of channels: 2
Min Depth of the device socket 28 mm
Compatible with Apple home kit: Yes
Compatible with Google Assistant: Yes
Compatible with Amazon Alexa: Yes
IFTTT support available: Yes
Material quality: Other
Mounting type: Claw / screw attachment
RAL number (similar): 9005
Extension input: Yes
Assembly: Base element
Switching power 0..1150 W
Load start: Other
Can be used with button: Yes
Suitable for use with motion detectors: Yes
Can be used with presence detectors: Yes
Can be used with timer/timer: Yes
Can be used with the IR button: Yes
Light value storage: Yes
Can be used with radio button: Yes
Breaking capacity 0..1150 W

Type: Busch-Jaeger series relay insert Flex 64821 U

Product type: Switch product range

Factory colour: Metal

Dim: (W x H x D) 50 x 100 x 150 mm

Content: 1 pc(s)

Depth: 150 mm

Height: 100 mm

Width: 50 mm

Mounting type: Flush mount

Weight: 130 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3546412 Busch-Jaeger Metal 2CKA006800A3044 1 pc(s)

Description

3-conductor connection technology (neutral conductor required).
For switching lighting systems.
For switching two independent load circuits.
For controlling light and ventilation systems.
Operation in toggle switching via button extension is possible.
Operation also possible via conventional buttons (2020 US, 2021/6 UK).
Without control element.
For control element Flex, 1-way, 64711 and wireless, 62711-WL.
For control element Flex, 2-way, 64721 and wireless, 62721-WL.
For control element Busch-Trevion® keypad KK/U4.xx.11.
For Busch Comfort Switch® Flex control element 64765-...
For Busch-Wächter® 180 Flex sensors 6476x-... .
For Busch-Wächter® 180 Flex sensors, wireless, 6276x -WL.
For Busch presence detector Flex sensors 6475x-...
Can be combined with extension insert Flex, 64891 U.
The application can be used via a wireless sensor in Busch-Flextronics® wireless or Busch-free@home® wireless.
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-balance® SI, Reflex SI, Busch-Duro 2000® SI, Busch-art linear®, future® linear, Busch-aXcent®, pure stainless steel, solo®, karat®, Busch-dynasty®, Busch-Trevion®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
Product line: Busch-Flextronics®, Busch-Flextronics® Wireless, Busch-free@home® Wireless, Busch-free@home®

This text is machine translated.
