Name: Busch-Jaeger Multicolour 2CDG510025R0021 1 pc(s)
Brand: Busch-Jaeger
SKU: 3546765

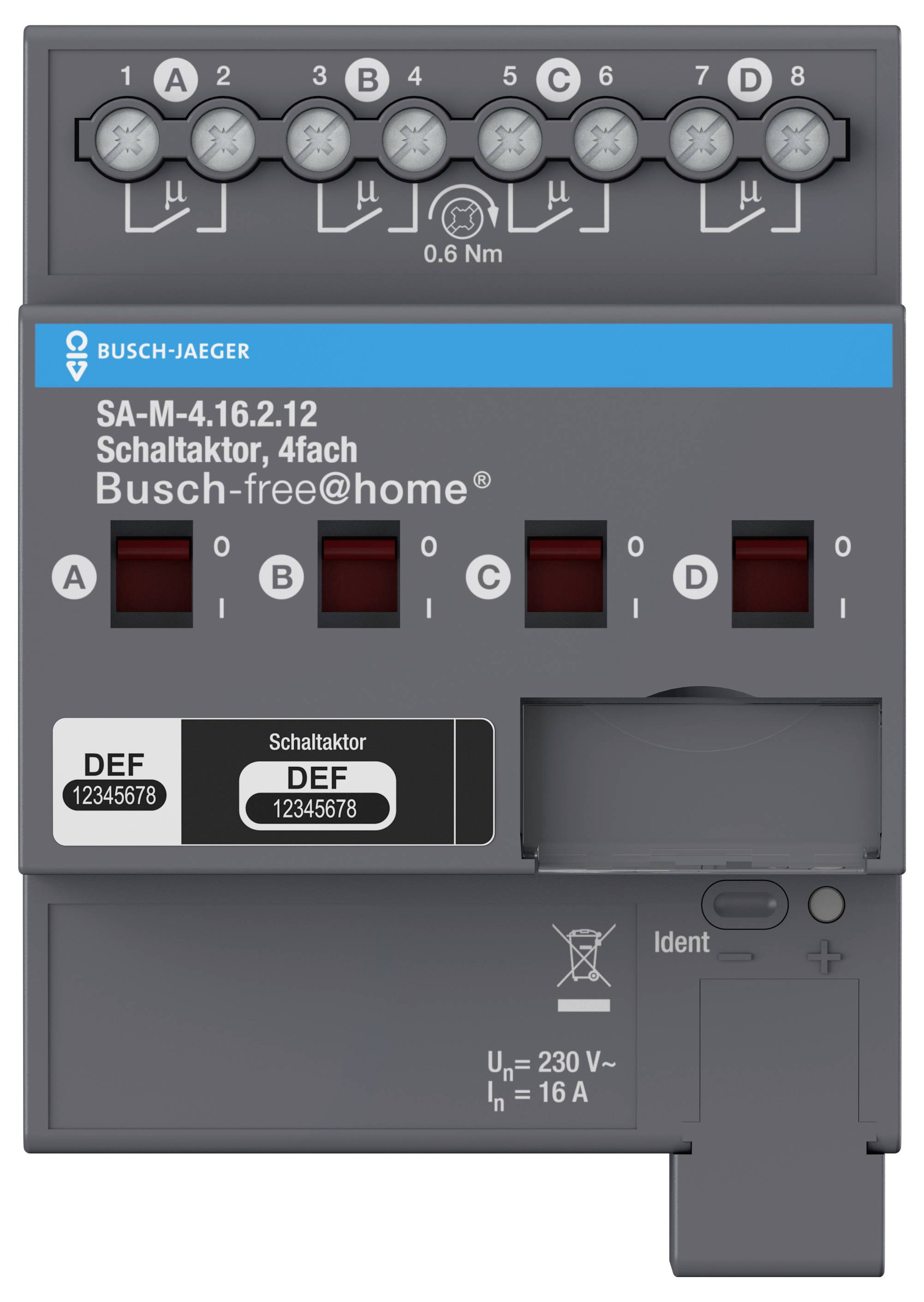

'Busch-Jaeger SA-M-4.16.2.12' four-channel actuator with labeled connection points and indicator slots, part of 'Busch-free@home' system.

Image similar

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger switching actuator, 4-way 16 A reg SA-M-4.16.2.12

Busch & Jaeger Switch Product Range

Technical specifications

Rated current 16 A
Mounting type: REG
Protection class (IP) IP20
Width in division units: 4
KNX bus system: No.
Bus system LON: No.
Bus system Powernet: No.
Other bus systems: Other
Rated operating voltage: 230 V
Bus system KNX radio: No.
Bus system wireless bus: No.
With LED display: Yes
Max. breaking capacity 2500 W
Power output: 2500 W
Suitable for C-Load: No.
Max. Number of switching outputs: 4
Max. switching current 16 A
Different phases can be connected: Yes
With bus connection: No.
Bus module removable: No.
Modular expansion option: No.
Min Depth of the device socket 63.5 mm

Type: Busch-Jaeger switching actuator, 4-way 16 A reg SA-M-4.16.2.12

Product type: Switch product range

Factory colour: Multicolour

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3546765 Busch-Jaeger Multicolour 2CDG510025R0021 1 pc(s)

Description

Switch actuator 4-fold for Busch-free@home®
With 4 independent potential-free contacts switches electrical consumers via Busch-free@home®.
For each output the manual operation of the contact is possible.
The switch state of the contact is displayed.
The 16A standard series is suitable for switching resistive loads (AC1).
Product line: Busch-free@home®
