Name: Busch-Jaeger Multicolour 2CKA001032A0527 1 pc(s)
Brand: Busch-Jaeger
SKU: 3543815

Highlights & Details

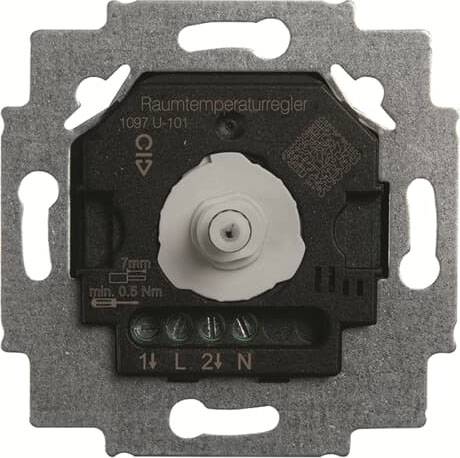

Busch-Jaeger room temperature controller insert 1097 U-101

Busch & Jaeger Switch Product Range

Technical specifications

Height: 71 mm
Width 71 mm
Depth: 46 mm
Version: On/off
Mounting type: Flush-mounted
Protection class (IP) IP20
Explosion-proof: No.
Contact version: Change-over (NO/NC)
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
With display: Yes
External sensor: No.
Type of power supply: Other
Connection: Three-/four-wire
With receiver: No.
Measuring range 5 - .30 ° C
Control characteristics: P
Suitable for heating: Yes
Number of Heating Outputs: 1
Suitable for cooling: No.
Difference value:0 K
Adjustable difference: No.
Sensor/sensor type: Resistance sensor
Temperature reading: Yes
With drinking water circuit: No.
Operation: Rotation
Thermal feedback: Series
With noise level indicator: No.

Type: Busch-Jaeger room temperature controller insert 1097 U-101

Product type: Switch product range

Factory colour: Multicolour

Content: 1 pc(s)

Mounting type: Flush mount

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3543815 Busch-Jaeger Multicolour 2CKA001032A0527 1 pc(s)

Description

With potential-bound change-over contact.
Switch contact changes when the set temperature is reached.
Without snap fastener
Class 1:
For the connection with hot-water heaters are for the regulator
Control valves needed closed and disconnected.
When connecting the NC contact, an adjustment valve is required that is open and without current.
After commissioning the switching point accuracy is after approx. 1-2 h operating duration
helicopter.
Mounting required in UP sockets according to DIN 49073.

Nominal current NC contact 10 A.
Nominal current closing contact: 5 A.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
