Name: Busch-Jaeger Multicolour 2CKA001032A0533 1 pc(s)
Brand: Busch-Jaeger
SKU: 3543138

Highlights & Details

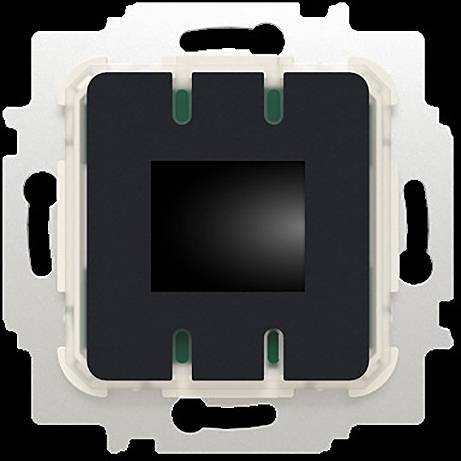

Busch-Jaeger Room temp.-regulator insert 1095 UTA-BT

Busch & Jaeger Switch Product Range

Technical specifications

Height: 71 mm
Width 71 mm
Depth: 39 mm
Mounting type: Flush-mounted
Protection class (IP) IP20
Explosion-proof: No.
Contact type: Closer (NO)
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
With display: Yes
External sensor: Yes
Connection: Other
With receiver: No.
Measuring range 5 - .30 ° C
Control characteristics: P
Suitable for heating: Yes
Number of Heating Outputs: 1
Suitable for cooling: No.
Difference value:0.5 K
Difference adjustable: Yes
Sensor type: Other
Temperature reading: Yes
With drinking water circuit: No.
Operation: Key
With noise level indicator: No.
Hidden operation: No.

Type: Busch-Jaeger Room temp.-regulator insert 1095 UTA-BT

Product type: Switch product range

Factory colour: Multicolour

Dim: (W x H x D) 150 x 100 x 150 mm

Content: 1 pc(s)

Depth: 150 mm

Height: 100 mm

Width: 150 mm

Mounting type: Flush mount

Weight: 130 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3543138 Busch-Jaeger Multicolour 2CKA001032A0533 1 pc(s)

Description

With Display, Bluetooth.
Manual on-site operation via 6-keys Touch operation.
Display: Indication temperature set value
Also allows querying of the ACTUAL temperature on the display.
With snap fastener
With separate connection for time-controlled night reduction
With connection possibility for a remote sensor (e.g. 6226/T)

Convenient configuration of the technical setting via APP, such as:
-Heating type (floor heating, radiator heating,..)
Function of the extension (comfort, ECO, night reduction.)
-Regulator type (PWM regulator, 2-point controller,..)
Display settings
-Lock on-site operation
Comfortable operation via APP such as:
Timer
-Operating mode

Only mount in conjunction with standard UP equipment boxes to DIN 49073.
25mm particularly low installation depth
Matching central disc: 1794 MDRT-xxx
For the controller, adjusting valves are in the " version
closed without current"
Recommended E.G. article no. 6164/10-102, TSA/K230.2.
Adjustable valve type can be selected in the APP.
Switching temperature difference ± 0.5 K.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
