Name: Busch-Jaeger Multicolour 2CKA002084A0704 1 pc(s)
Brand: Busch-Jaeger
SKU: 3545372

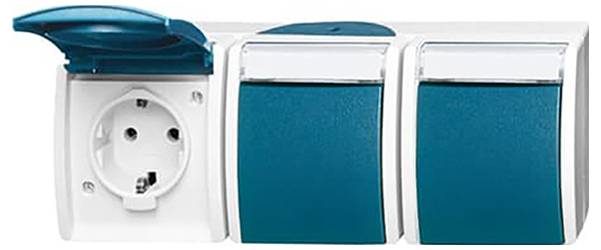

Electrical outlet and two blank switches with teal covers, wall-mounted. Left section has a European-style socket with open cover.

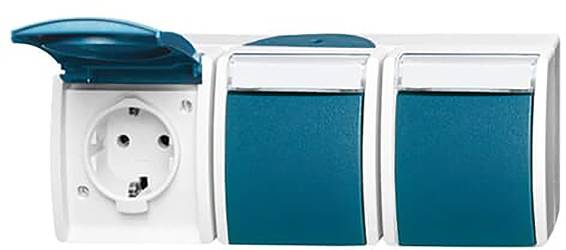

An image shows a white and teal electrical outlet panel with two covered switches and one uncovered socket. The socket is a European type with two round holes.

1/2

Image similar

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger Schuko socket 3 f Horizontal 2300/3 EWN-53

Busch & Jaeger Switch Product Range

Technical specifications

Design: Socket CEE 7/3 (type F)
Mounting type: Surface-mounted
Material: Plastic
Colour : blue
Surface protection: Untreated
Impact strength: IK04
Transparent: No.
Design of surface: Matt
Number of phases: 1
Nominal voltage: 250 V
Nominal current: 16 A
Type of connection: Screw terminal
With hinged cover: No.
Halogen-free: Yes
Rated fault power: 0 mA
With signal lamp: No.
Imprint/marking: Without
Min Depth of the device socket 0 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
Mounting method: Fixing with screw
Antibacterial treatment: No.
RAL number (similar): 7035
Suitable for protection class (IP): IP44
Number of units: 3
Text field/label area: Yes
With orientation light: No.
Number of modules (for modular design): 1
Device width 223 mm
Device height 83 mm
Device depth 55 mm
Insulated installation: Yes
Lockable: No.
Earthed: Earth clips
Number of active contacts (round): 2
With increased protection against accidental contact: No.
Metallic color: No.
Ejection mechanism: No.
With function light: No.
Surge protection: No.
Fault current protection: No.
With micro-fuse: No.
Special power supply: Without special power supply
With loop-through function: Yes
With On / Off switch: No.
Turned central insert: No.
For ""difficult conditions""" (according to VDE): No.

Type: Busch-Jaeger Schuko socket 3 f Horizontal 2300/3 EWN-53

Product type: Switch product range

Factory colour: Multicolour

Dim: (W x H x D) 100 x 100 x 150 mm

Content: 1 pc(s)

Depth: 150 mm

Height: 100 mm

Width: 100 mm

Weight: 1000 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3545372 Busch-Jaeger Multicolour 2CKA002084A0704 1 pc(s)

Description

For connecting electrical consumers.
For horizontal mounting.
With screw terminal.
Pre-wired.
Labelling area 57.8 x 9.8 mm.
In place of the earthing contact® sockets, switches, buttons, light signals or earthing contact® sockets with lock can also be used.
Design line: Ocean®
Dimensions of the label field 57.8 x 9.8 mm
