Name: Busch-Jaeger Multicolour 2CKA002099A0306 1 pc(s)
Brand: Busch-Jaeger
SKU: 3545920

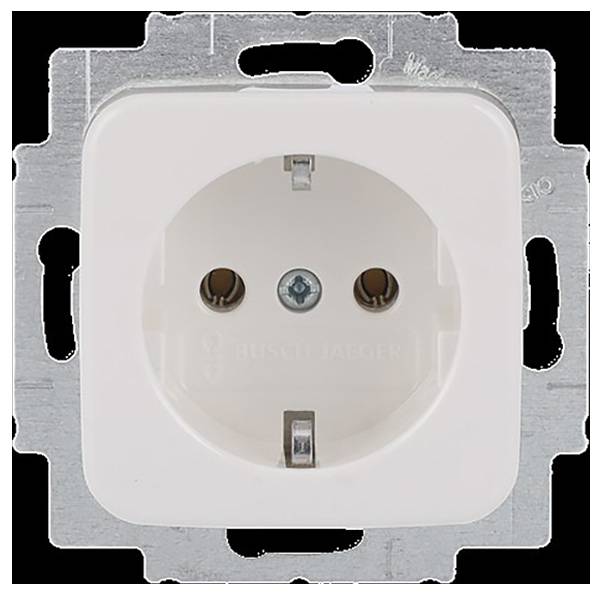

A white electrical wall socket with two circular holes for a plug, set in a metallic mounting frame.

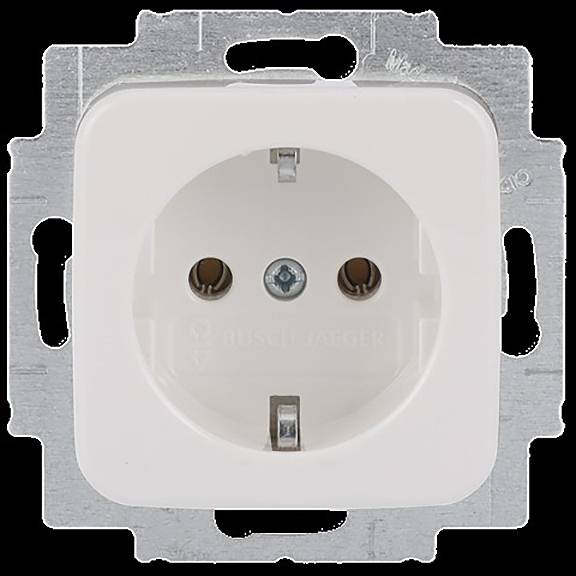

A white European-style electrical outlet with two round holes and a grounding pin, mounted on a metal frame for installation.

1/2

Image similar

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger 100-p Schuko sockets large packaging 20 EUC-214 bulk

Busch & Jaeger Switch Product Range

Technical specifications

Design: Socket CEE 7/3 (type F)
Mounting type: Flush-mounted
Material: Plastic
Colour: white
Surface protection: Untreated
Impact strength: IK03
Surface design: Glossy
Number of phases: 1
Nominal voltage: 250 V
Nominal current: 16 A
With hinged cover: No.
Halogen-free: No.
With signal lamp: No.
Imprint/marking: Without
Min Depth of the device socket 31 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
Mounting type: Claw / screw attachment
Antibacterial treatment: No.
RAL number (similar): 9010
Suitable for protection class (IP): IP20
Number of units: 1
Text field/label area: No.
With orientation light: No.
Device width 400 mm
Device height 270 mm
Device depth 600 mm
Lockable: No.
Earthed: Earth clips
Number of active contacts (round): 2
With increased protection against accidental contact: No.
Metallic color: No.
Ejection mechanism: No.
With function light: No.
With micro-fuse: No.
Special power supply: Without special power supply
With loop-through function: No.
With On / Off switch: No.
Turned central insert: No.

Type: Busch-Jaeger 100-p Schuko sockets large packaging 20 EUC-214 bulk

Product type: Recessed sockets

Factory colour: Multicolour

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3545920 Busch-Jaeger Multicolour 2CKA002099A0306 1 pc(s)

Description

Large packaging - contains:
100pcs 20 EUC-214 Safety contact® Socket-inserts
Reflex SI
Socket inserts and covers are packed separately in the set and can be used separately according to the progress of construction.
Reflex SI design line
Design line version: Reflex SI, Reflex SI linear

This text is machine translated.
