Name: Camdenboss Easy Assembly CBEAC-01-GY Casing 90 x 60 x 40 Acrylonitrile butadiene styrene Grey 50 pc(s)
Brand: Camdenboss
SKU: 2694460
Availability: BackOrder

White rectangular box with rounded edges and a small opening on the side.

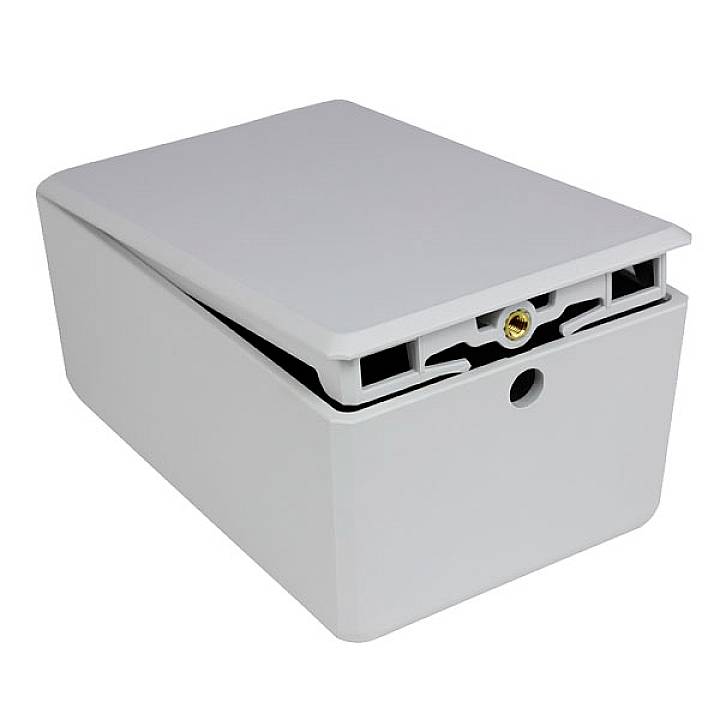

A rectangular, white fuse box with a slightly raised lid and a visible screw hole at the front.

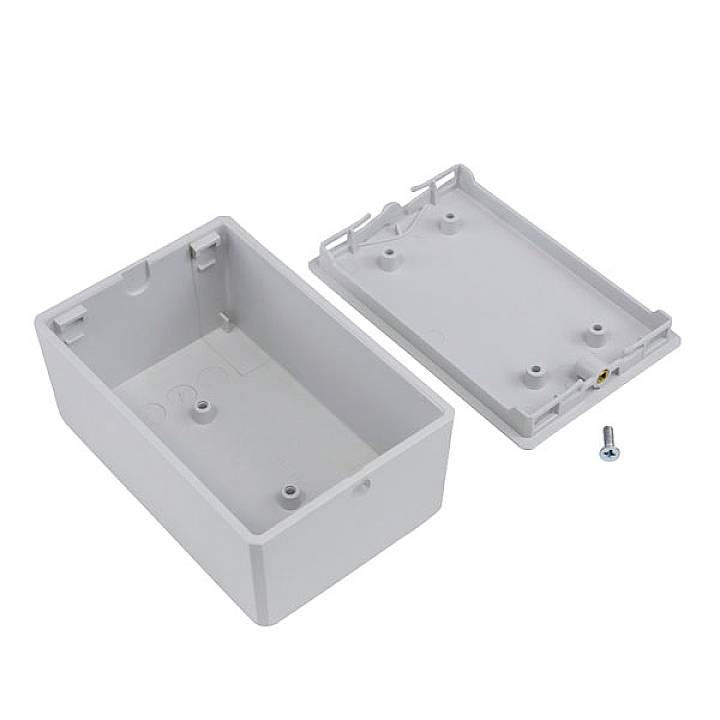

Rectangular grey plastic enclosure with a removable lid and screws. Suitable for housing electronic components.

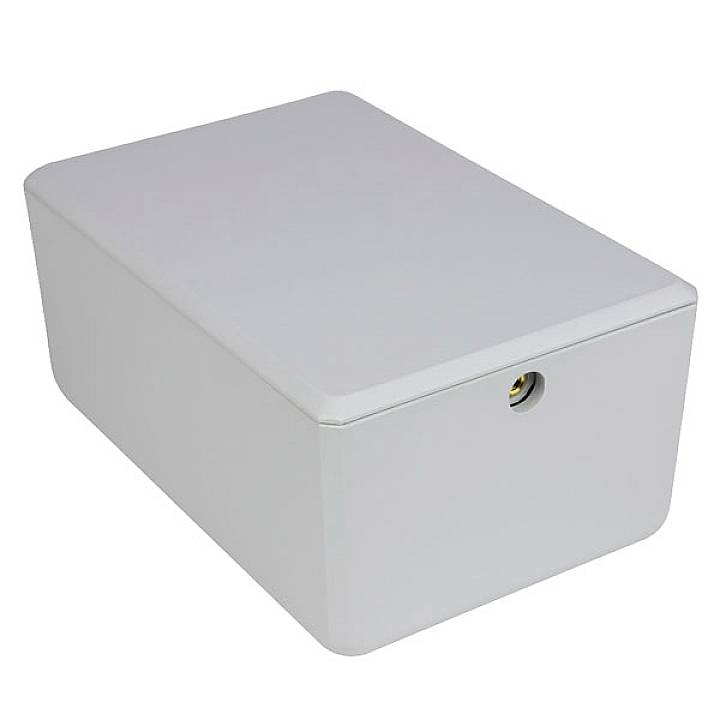

A rectangular, grey enclosure with rounded edges and a small round hole on the front, mountable or usable as a cover.

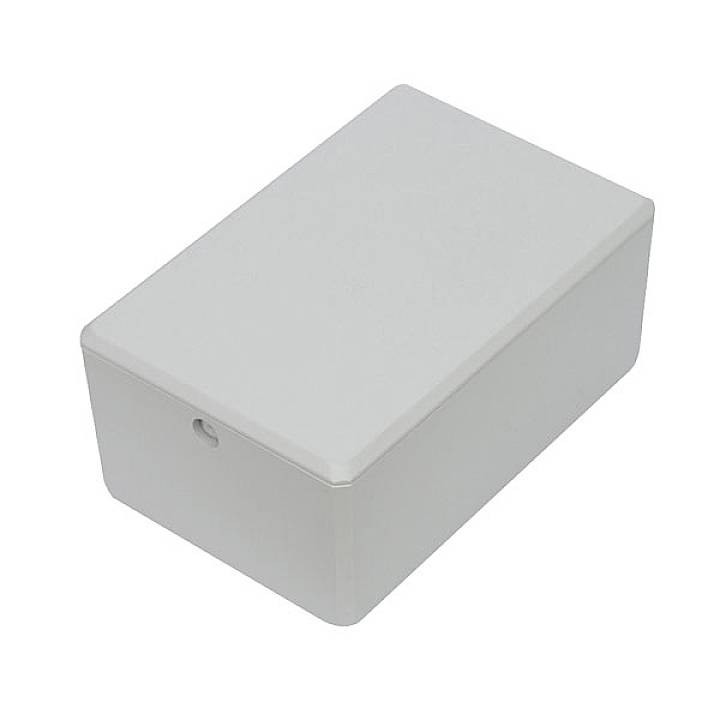

Rectangular white casing with rounded edges, possibly an electronic device or a protective box.

1/6

Product type

Casing

Material

Acrylonitrile butadiene styrene

IP rating

IP40

Width

60 mm

Height

40 mm

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 4.70 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

CamdenBoss Ltd CBEAC-01-GY Easy Assembly Enclosure Size 1 90x60x40mm Grey

High quality universal housing with cost saving mounting features
Made of ABS
No cornerstones maximize PCB area and edge-to-edge capability
Several PCB mounting points in lid and base
Unique spring element in the lid holds your PCB securely in position
The 'Easy Assembly' strip holds the PCB in place without the need for screws
Protection class IP40
Operating temperature -10 °C to + +80°C
UL94-V0 approval

Our service for you

Technical specifications

Product type: Casing

Material: Acrylonitrile butadiene styrene

: IP40

Factory colour: Grey

Length: 90 mm

Width: 60 mm

Height: 40 mm

Content: 50 pc(s)

Dim: (L x W x H) 90 x 60 x 40 mm

RoHS-compliant: Yes

Weight: 61 g

Type: Easy Assembly

Variants(All information include VAT, plus shipping costs)

Dim

Factory colour

Height

Length/depth

Width

Camdenboss Easy Assembly CBEAC-01-GY Casing 90 x 60 x 40 Acrylonitrile butadiene styrene Grey 50 pc(s)

Item no:2694460

Available soon

Conrad Electronic

This article

(L x W x H) 90 x 60 x 40 mm

Grey

40 mm

90 mm

60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Camdenboss Easy Assembly CBEAC-01-BK Casing 90 x 60 x 40 Acrylonitrile butadiene styrene Black 50 pc(s)

Item no:2694649

Available soon

Conrad Electronic

(L x W x H) 90 x 60 x 40 mm

Black

40 mm

90 mm

60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Camdenboss Easy Assembly CBEAC-01-WH Casing 90 x 60 x 40 Acrylonitrile butadiene styrene White 50 pc(s)

Item no:2685750

Available soon

Conrad Electronic

(L x W x H) 90 x 60 x 40 mm

White

40 mm

90 mm

60 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Camdenboss Easy Assembly CBEAC-02-BK Casing 110 x 70 x 45 Acrylonitrile butadiene styrene Black 50 pc(s)

Item no:2694298

Available soon

Conrad Electronic

(L x W x H) 110 x 70 x 45 mm

Black

45 mm

110 mm

70 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

Camdenboss Easy Assembly CBEAC-02-GY Casing 110 x 70 x 45 Acrylonitrile butadiene styrene Grey 50 pc(s)

Item no:2694650

Available soon

Conrad Electronic

(L x W x H) 110 x 70 x 45 mm

Grey

45 mm

110 mm

70 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

Camdenboss Easy Assembly CBEAC-03-BK Casing 130 x 80 x 45 Acrylonitrile butadiene styrene Black 50 pc(s)

Item no:2694651

Available soon

Conrad Electronic

(L x W x H) 130 x 80 x 45 mm

Black

45 mm

130 mm

80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

Camdenboss Easy Assembly CBEAC-02-WH Casing 110 x 70 x 45 Acrylonitrile butadiene styrene White 50 pc(s)

Item no:2694461

Unavailable

Conrad Electronic

(L x W x H) 110 x 70 x 45 mm

White

45 mm

110 mm

70 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 265.00^*

Camdenboss Easy Assembly CBEAC-03-GY Casing 130 x 80 x 45 Acrylonitrile butadiene styrene Grey 50 pc(s)

Item no:2685751

Unavailable

Conrad Electronic

(L x W x H) 130 x 80 x 45 mm

Grey

45 mm

130 mm

80 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 305.00^*

Camdenboss Easy Assembly CBEAC-04-GY Casing 150 x 90 x 50 Acrylonitrile butadiene styrene Grey 50 pc(s)

Item no:2685753

Unavailable

Conrad Electronic

(L x W x H) 150 x 90 x 50 mm

Grey

50 mm

150 mm

90 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 395.00^*

Camdenboss Easy Assembly CBEAC-04-WH Casing 150 x 90 x 50 Acrylonitrile butadiene styrene White 50 pc(s)

Item no:2694652

Unavailable

Conrad Electronic

(L x W x H) 150 x 90 x 50 mm

White

50 mm

150 mm

90 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

Description

This universal casing was developed to offer flexibility and increased functionality. A unique, two-sided lid and mounting points for your circuit board shorten the assembly time and offer the end user a high quality, modern product. Shaped of ABS UL94-V0 material, in different sizes and colors, with optional DIN rails / wall brackets available. If you are looking for a housing that can hold your electronic accessories and looks good at the same time, don't look further!

Cover used on both sides
The cover that can be used on both sides can be fixed either by a push button or with a single screw.

Spring function in lid
If the PCB is held firmly in place without the need for screws, WAS significantly shortens the assembly time.

No corner supports
Maximized PCB dimensions that lead from edge to edge.

PCB corner bracket in base
Sizes 3 & 4 have four additional half-board brackets that can be removed to create space for solder points on the bottom of the circuit board.

PCB holder for easy installation
Together with the spring function in the lid the strip holds the PCB in place without screws for a quick and easy mounting.

Several PCB mounting points in base and lid
Mounting domes in central position support the place capacitance of the conducting board.

Flat surfaces
All sides of the case have a smooth surface which is suitable for easy editing.

Raspberry Pi compatible
Sizes 3 & 4 fit Raspberry Pi 3 and 4, and size 1 match those of Raspberry Pi Zero.

This text is machine translated.
