Buy Camdenboss Easy Assembly CBEAC-03-BK Casing 130 x 80 x 45 Acrylonitrile butadiene styrene Black 50 pc(s)

Black, rectangular enclosure box with rounded edges and a small, central opening on the front.

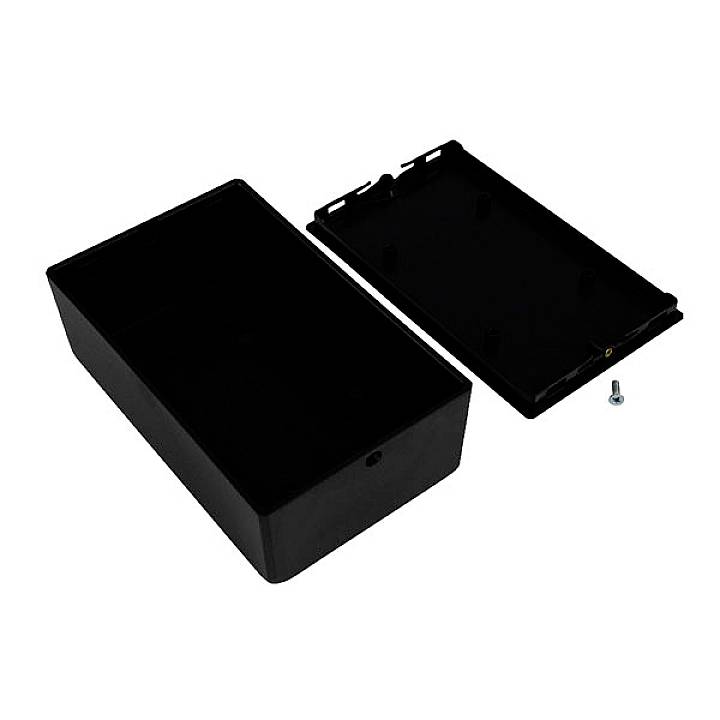

Black plastic enclosure, rectangular, with removable lid and screw. Used for electronics assembly or as a protective housing.

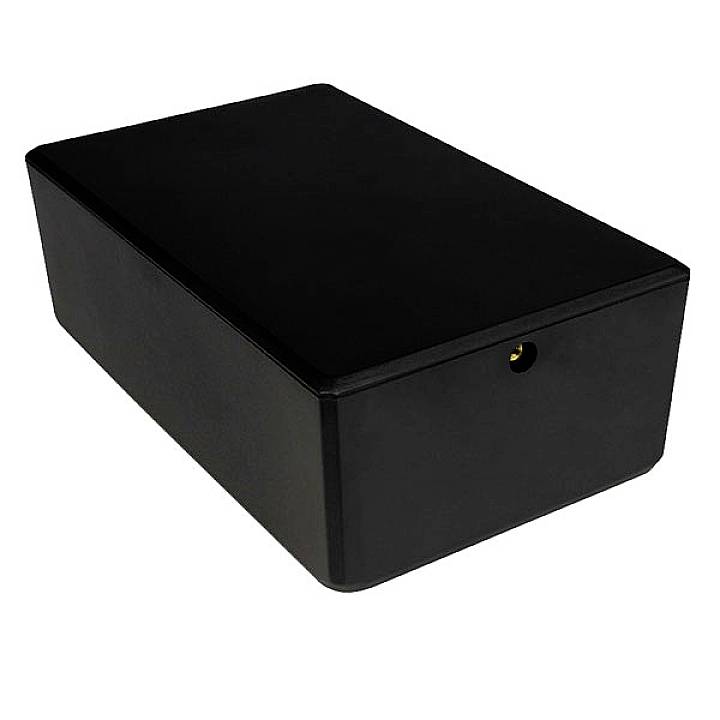

Black rectangular enclosure with rounded edges and a small round opening on the front.

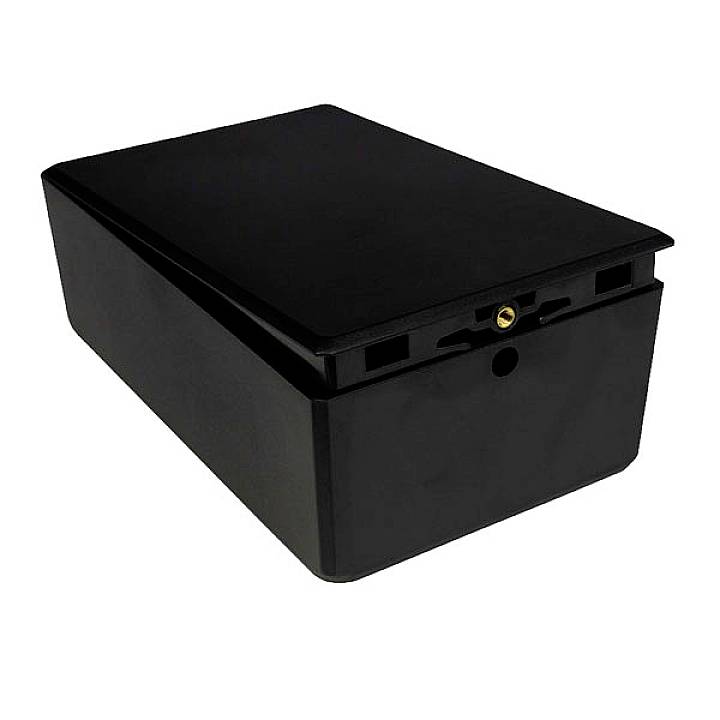

Black plastic storage box with lid, suitable for storage or housing electronic devices.

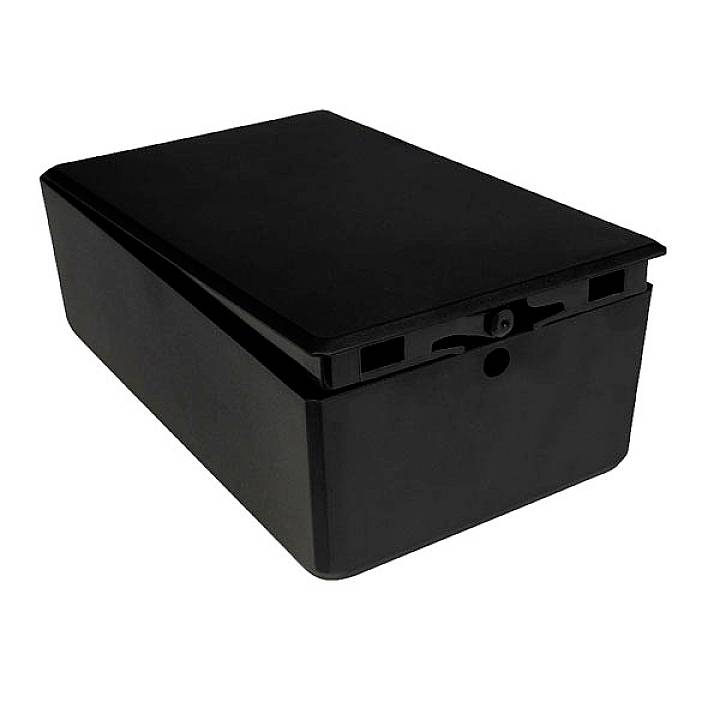

Black, rectangular box with a removable lid, presumably a storage container.

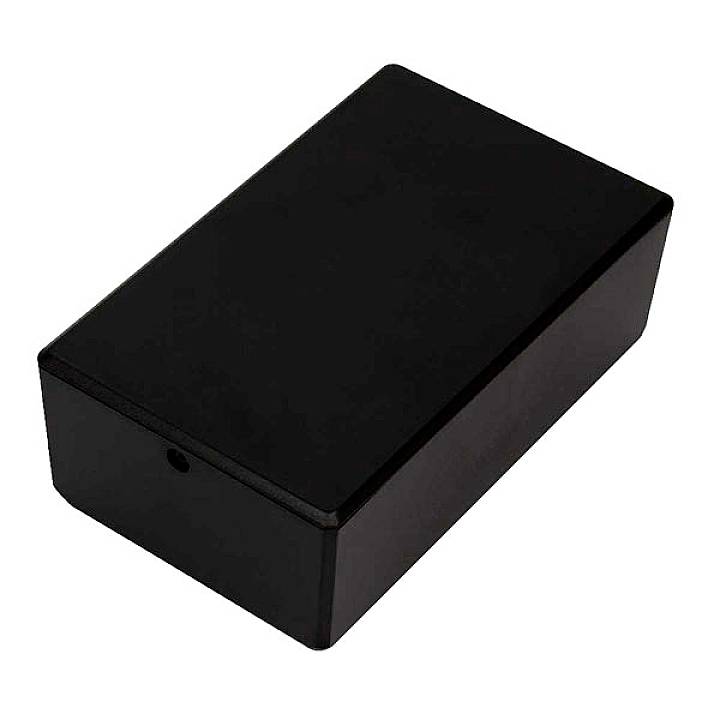

Black, rectangular plastic enclosure with a smooth surface, suitable for electronic construction or storing small components.

1/6

Product type

Casing

Material

Acrylonitrile butadiene styrene

IP rating

IP40

Width

80 mm

Height

45 mm

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 50 pc(s))

Set(s)

Total (€ 5.13 / piece)

€ 256.30

plus VAT.

Report legal concerns

Highlights & Details

CamdenBoss Ltd CBEAC-03-BK Easy Assembly Enclosure Size 3 130x80x45mm Black

High quality universal housing with cost saving mounting features
Made of ABS
No cornerstones maximize PCB area and edge-to-edge capability
Several PCB mounting points in lid and base
Unique spring element in the lid holds your PCB securely in position
The 'Easy Assembly' strip holds the PCB in place without the need for screws
Protection class IP40
Operating temperature -10 °C to + +80°C
UL94-V0 approval

Our service for you

Technical specifications

Product type: Casing

Material: Acrylonitrile butadiene styrene

: IP40

Factory colour: Black

Length: 130 mm

Width: 80 mm

Height: 45 mm

Content: 50 pc(s)

Dim: (L x W x H) 130 x 80 x 45 mm

RoHS-compliant: Yes

Weight: 107 g

Type: Easy Assembly

Description

This universal casing was developed to offer flexibility and increased functionality. A unique, two-sided lid and mounting points for your circuit board shorten the assembly time and offer the end user a high quality, modern product. Shaped of ABS UL94-V0 material, in different sizes and colors, with optional DIN rails / wall brackets available. If you are looking for a housing that can hold your electronic accessories and looks good at the same time, don't look further!

Cover used on both sides
The cover that can be used on both sides can be fixed either by a push button or with a single screw.

Spring function in lid
If the PCB is held firmly in place without the need for screws, WAS significantly shortens the assembly time.

No corner supports
Maximized PCB dimensions that lead from edge to edge.

PCB corner bracket in base
Sizes 3 & 4 have four additional half-board brackets that can be removed to create space for solder points on the bottom of the circuit board.

PCB holder for easy installation
Together with the spring function in the lid the strip holds the PCB in place without screws for a quick and easy mounting.

Several PCB mounting points in base and lid
Mounting domes in central position support the place capacitance of the conducting board.

Flat surfaces
All sides of the case have a smooth surface which is suitable for easy editing.

Raspberry Pi compatible
Sizes 3 & 4 fit Raspberry Pi 3 and 4, and size 1 match those of Raspberry Pi Zero.
