Name: CasaFan SPEED2PROTECT IP54 SL Free standing fan 120 W (Ø x H) 495 mm x 1215 mm White Winter-proof
Brand: CasaFan
SKU: 2436086
Availability: BackOrder

A white, freestanding fan with a round base and adjustable height. The rotor blades are enclosed by a protective grille.

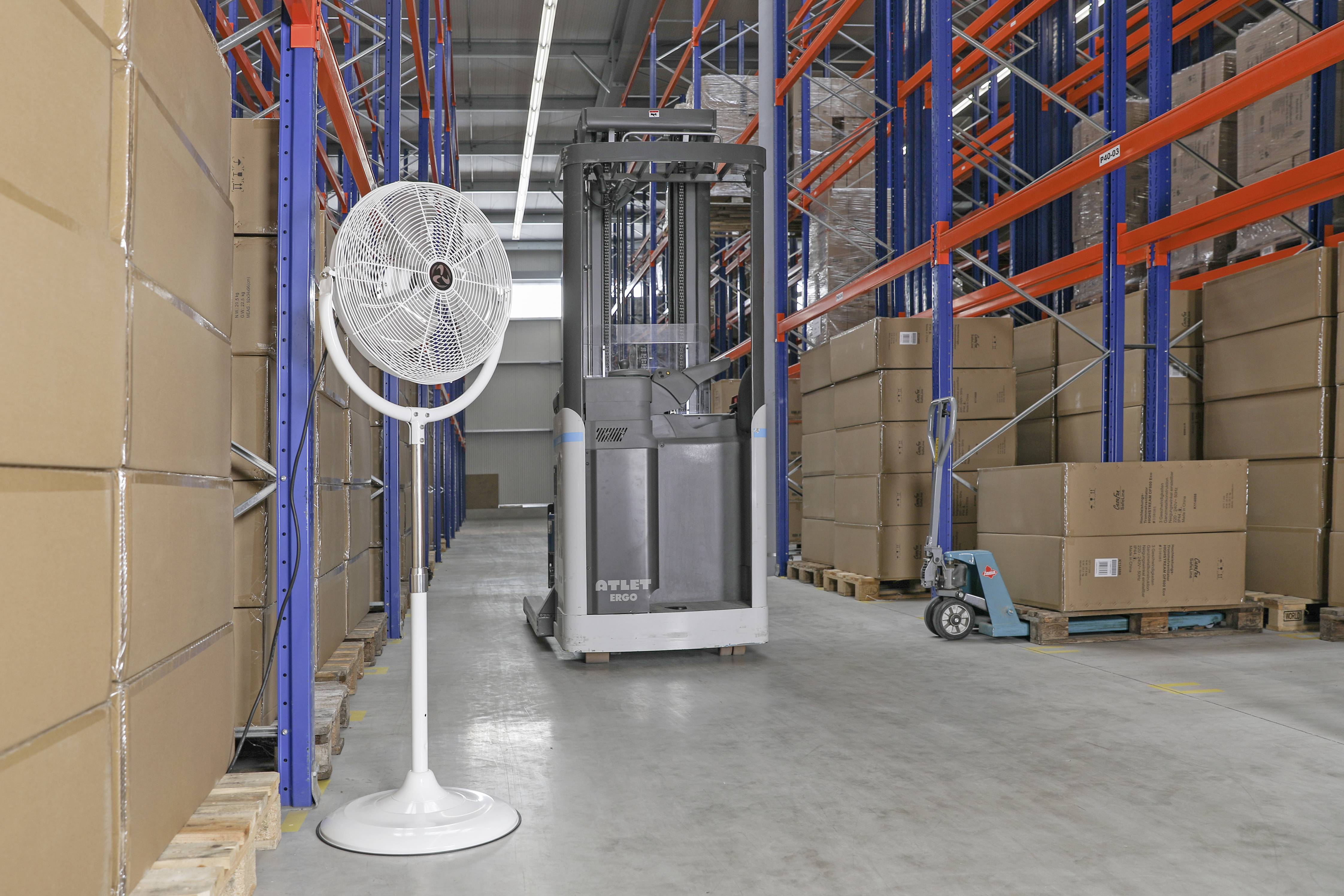

A forklift truck in a large warehouse aisle with high shelves stacked full of cardboard boxes. A standing fan is positioned to the left of the boxes.

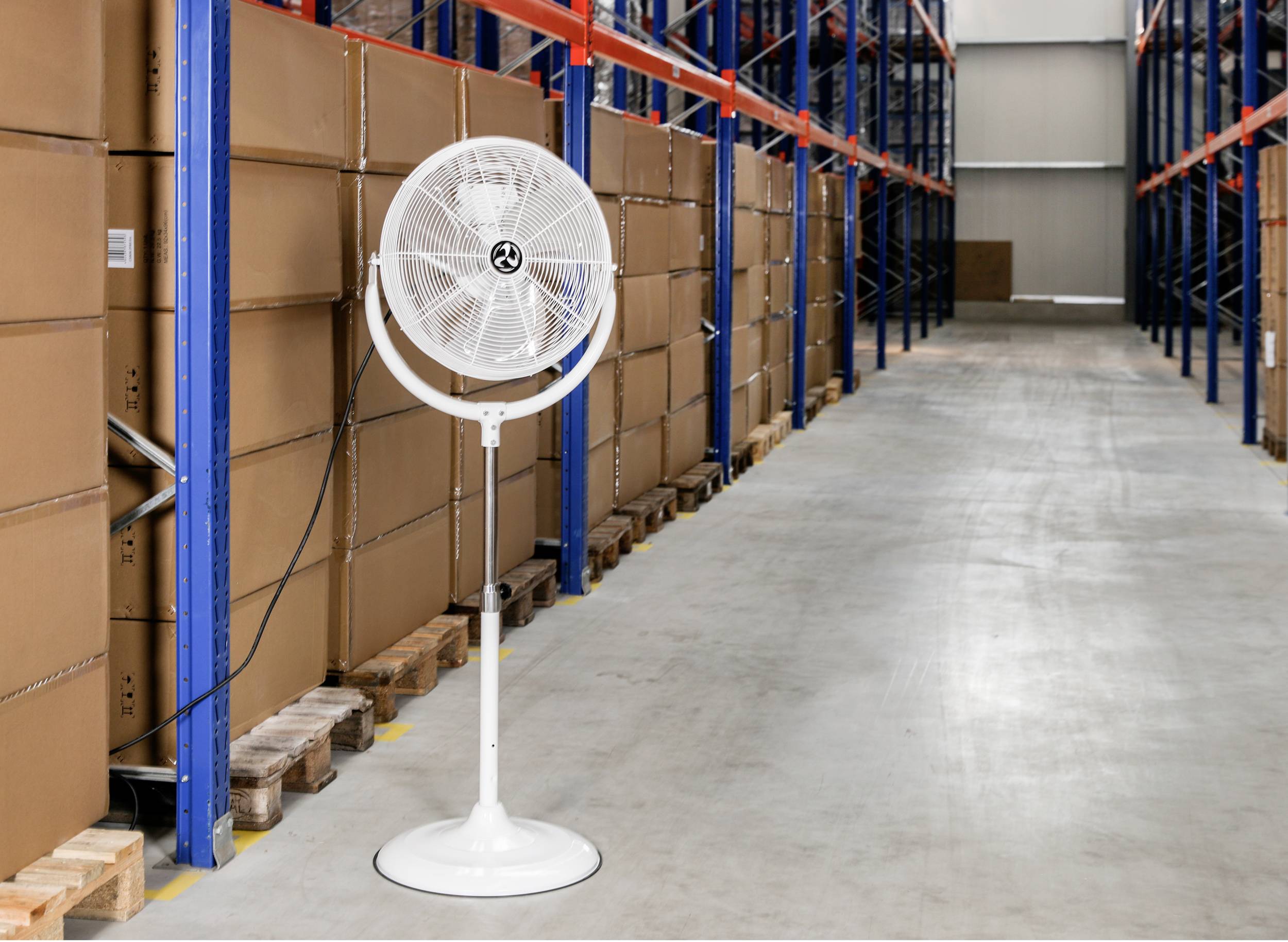

A white fan stands in a large warehouse next to tall shelves stacked with brown boxes. The warehouse floor is grey and clean.

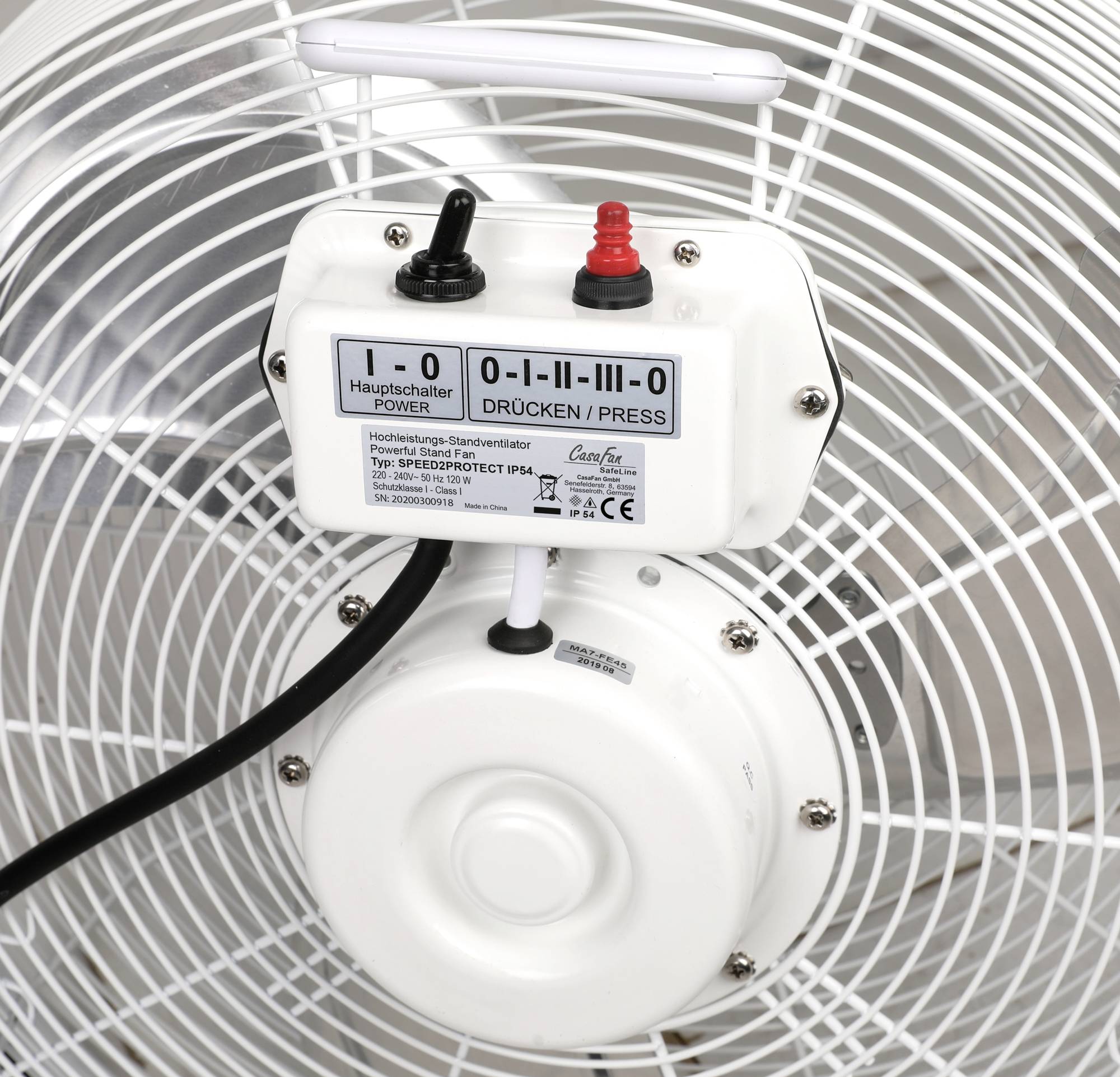

Close-up of a fan. The control panel is visible with a switch and the label 'PUSH/PRESS'.

Black network cable with Euro plug, suitable for use in household appliances.

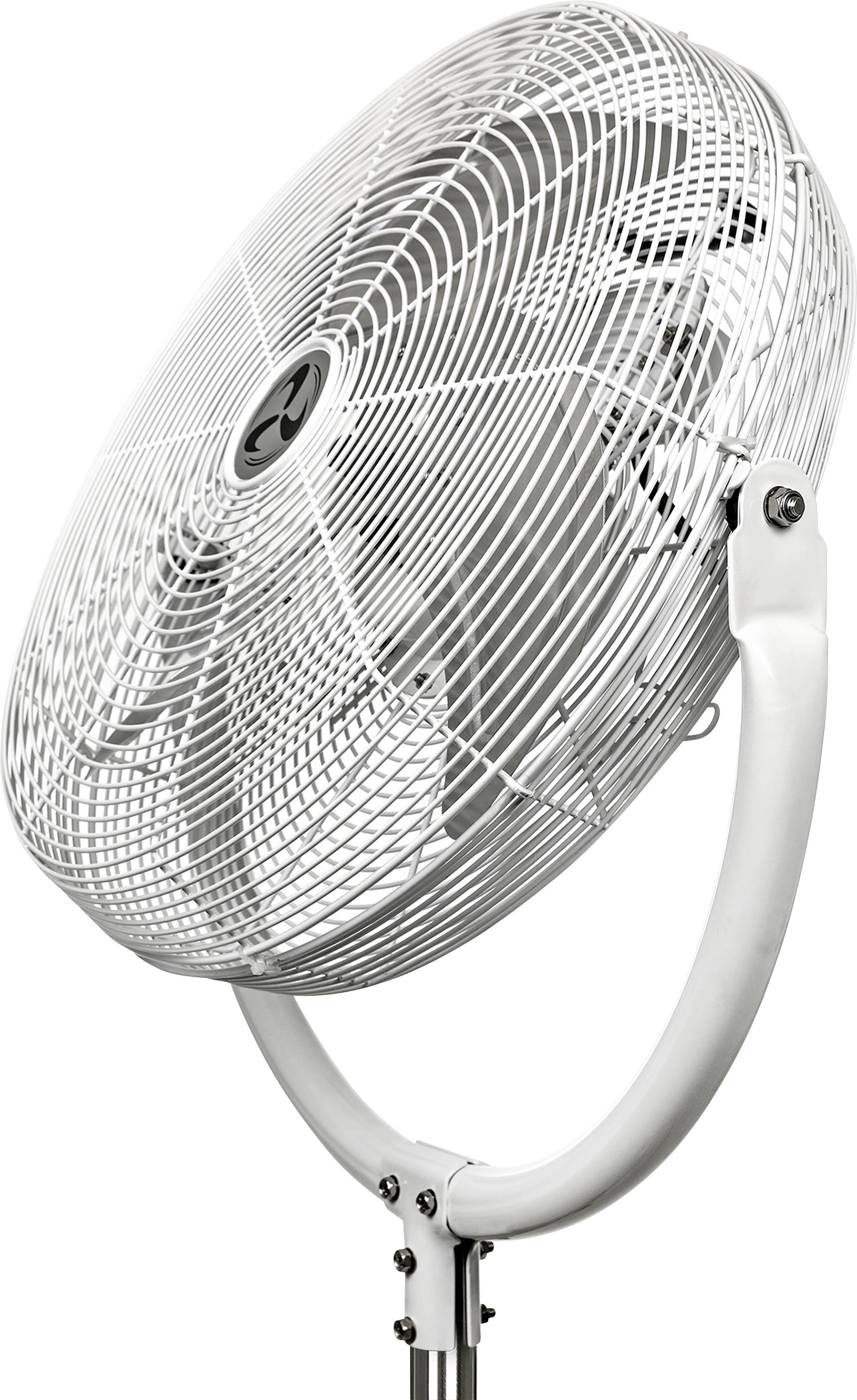

A white pedestal fan with a protective grille, photographed at an angle from the side, mounted on a stand.

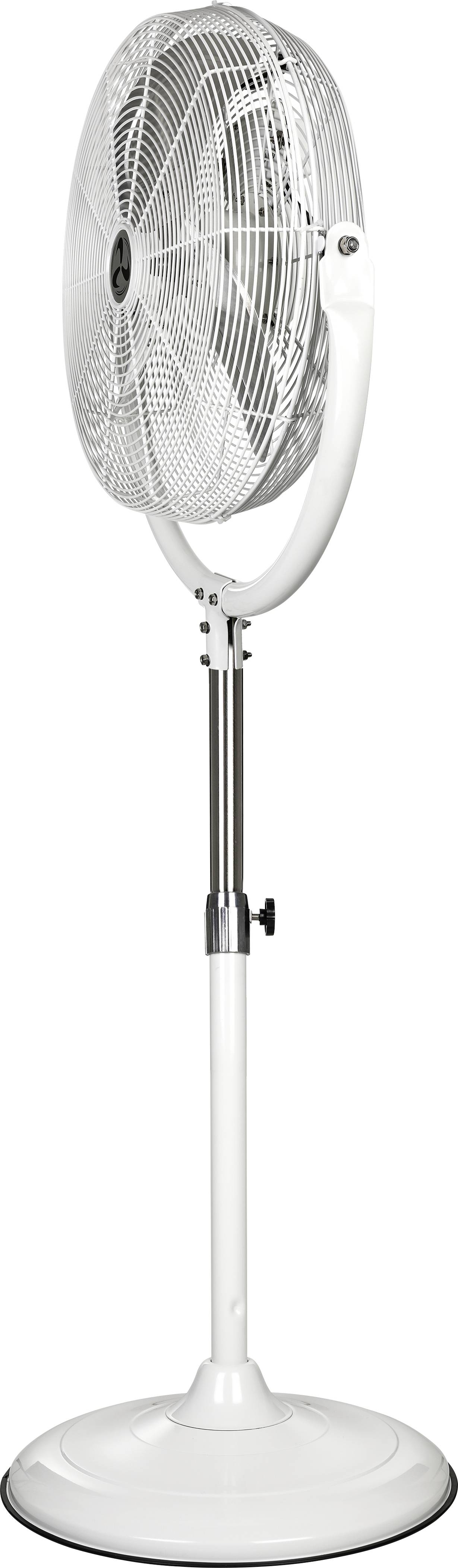

White pedestal fan with adjustable stand and large, round protective grille. Perfect for cooling rooms on hot days.

1/8

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 365.00 / piece)

€ 365.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SPEED2PROTECT IP54 SL STANDING FAN

Also for wall mounting
For commercial use
Protection class IP54, 10,700 m³/h in accordance with EN 60879
This text is machine translated.

Technical specifications

Protection class IP54
For commercial use
Two-pole on/off switch
Protection class: I

Product type: Free standing fan

Operating voltage: 230 V

Switching stages: 3

(Ø): 495 mm

: 120 W

Air flow rate: 10700 m³/h

Rotational speed: 1250 U/min

Noise emission: 72 dB

Grid diameter: 495 mm

Wing colour: White

Case colour: White

Swivel range (max.): 130°

Fan features: Winter-proof

Dim: (Ø x H) 495 mm x 1215 mm

Weight: 14.2 kg

Feed length: 2.5 m

: n.rel.

Rotor blades: 3

Rotational speed (max.): 1300 U/min

Speed levels: 3

Air discharge: 10700 m³/h

Material: Plastic

Height: 1215 mm

Length: 50 mm

Depth: 300 mm

Power supply (LOV): via mains outlet

Height-adjustable: Yes

Width: 50 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2436086 CasaFan SPEED2PROTECT IP54 SL Free standing fan 120 W (Ø x H) 495 mm x 1215 mm White Winter-proof

Features

CasaFan Safeline standing fan
Also for wall mounting
For commercial use
123 W, 220 - 240 V ~ 50 Hz
Protective basket 495 mm
height adjustable from 1315 - 1500 mm
Protection class IP54, 10,700 m³/h in accordance with EN 60879
Protective grillee, housing, frame and stand Steel with double anti-corrosion coating, color white
2-pin power switch
3 stages by means of encapsulated pressure switch
Vertical inclination of 130° adjustable
Sturdy design with carrying handle
Enclosed, ball bearing motor
Delivery temperature: - 10° to +45 °C.
Cable 2.5 m rubber hose line for high mechanical load H07RN-F 3 x 1.0 mm² with earthing contact plug
Certified according to Machinery Directive 2006/42/EC Part 1 for commercial use

Scope of delivery

SPEED2PROTECT IP54 SL STANDING FAN

Description

Features

CasaFan Safeline standing fan
Also for wall mounting
For commercial use
123 W, 220 - 240 V ~ 50 Hz
Protective basket 495 mm
height adjustable from 1315 - 1500 mm
Protection class IP54, 10,700 m³/h in accordance with EN 60879
Protective grillee, housing, frame and stand Steel with double anti-corrosion coating, color white
2-pin power switch
3 stages by means of encapsulated pressure switch
Vertical inclination of 130° adjustable
Sturdy design with carrying handle
Enclosed, ball bearing motor
Delivery temperature: - 10° to +45 °C.
Cable 2.5 m rubber hose line for high mechanical load H07RN-F 3 x 1.0 mm² with earthing contact plug
Certified according to Machinery Directive 2006/42/EC Part 1 for commercial use
