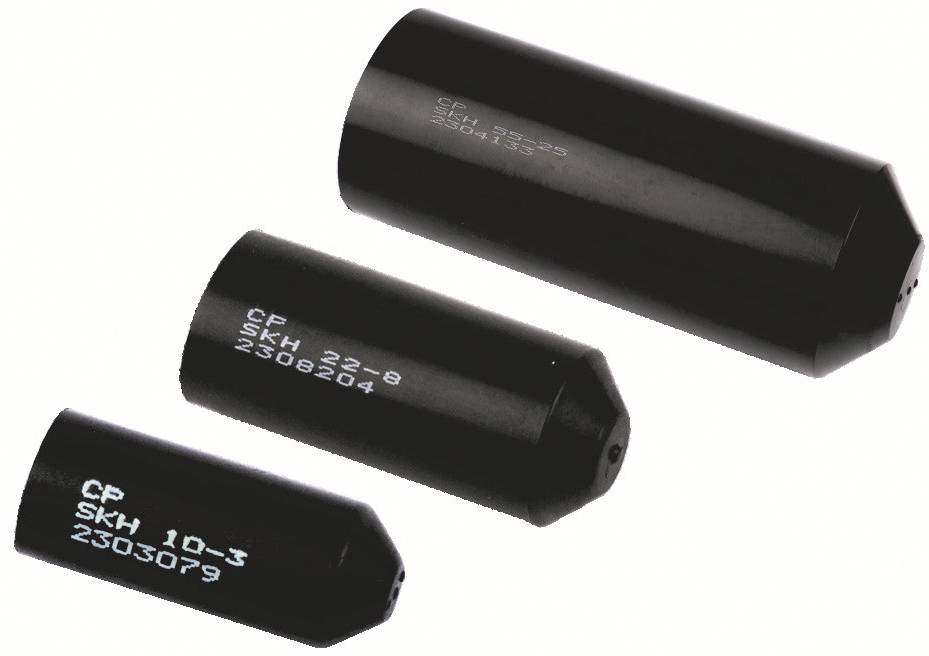

CellPack 125345 Heatshrink end cap Nominal inside diameter (pre-shrinkage): 10 mm 1 pc(s)
Product type
Heatshrink end cap
Nominal inside diameter (pre-shrinkage)
10 mm
Nominal diameter (post-shrinkage)
4 mm
Adhesive (yes/no)
Yes
Shrinkage
3:1
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Heatshrink end cap
- Nominal inside diameter (pre-shrinkage)
10 mm
- Nominal diameter (post-shrinkage)
4 mm
- Adhesive (yes/no)
Yes
- Factory colour
Black
- Shrinkage
3:1
- Heatshrink features
Thick-walled
incl. adhesive
Printable
- Halogen-free
Yes
- Material
Polyolefin
- Length
45 mm
- Max. temperature
135 °C
- Min. temperature
-30 °C
- Manufacturer part #
125345
- Content
1 pc(s)
- Type
SKH/10-4/schwarz
- Wall thickness (post-shrinkage)
2.9 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3785567 CellPack 125345 Heatshrink end cap Nominal inside diameter (pre-shrinkage): 10 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3785567 CellPack 125345 Heatshrink end cap Nominal inside diameter (pre-shrinkage): 10 mm 1 pc(s)
Description
Heat shrink end caps SKH with adhesive, as pressure and humidity protection for cables, pipes and tubes of 5 - 105 mm diameter.
