Name: CellPack 127406 Heatshrink w/o adhesive Black 75 mm 22 mm Shrinkage:3:1 5 pc(s)
Brand: CellPack
SKU: 3784101

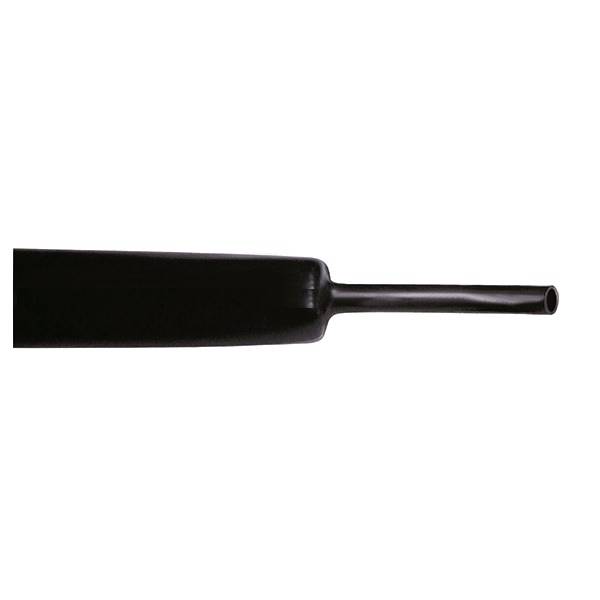

Black cylindrical heat-shrink tubing with a narrow extension, shown isolated on a white background.

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

75 mm

Nominal diameter (post-shrinkage)

22 mm

Heatshrink features

with partition

Printable

Content

5 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shrink hose W/O adhesive,in 1m ABSR2 75-22/1000 SW

5 pc(s)
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 75 mm

Technical specifications

Product type: Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage): 75 mm

Nominal diameter (post-shrinkage): 22 mm

Factory colour: Black

Shrinkage: 3:1

Heatshrink features: with partition
Printable

Content: 5 pc(s)

Material: Polyolefin

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 127406

Halogen-free: Yes

Length: 1 m

Type: SR2 75-22/1000 sw

Wall thickness (post-shrinkage): 3 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3784101 CellPack 127406 Heatshrink w/o adhesive Black 75 mm 22 mm Shrinkage:3:1 5 pc(s)

Security datasheet

Security datasheet 3784101 CellPack 127406 Heatshrink w/o adhesive Black 75 mm 22 mm Shrinkage:3:1 5 pc(s)

Description

The SR2 heat-shrinkable tubes are medium-walled, without thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.
