Name: CellPack 127490 Heatshrink w/o adhesive Black 45 mm 12 mm Shrinkage:3:1 1 m
Brand: CellPack
SKU: 3784157

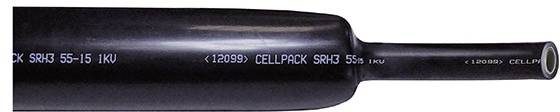

Black heat-shrink tubing labeled CELLPACK SRH3 55-15 1KV, shown in close-up on a white background.

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

45 mm

Nominal diameter (post-shrinkage)

12 mm

Heatshrink features

Thick-walled

Printable

Content

1 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shrink hose W/O adhesive,in 1m ABSCH SR3 45-12/1000 SW

1 m
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 45 mm

Technical specifications

Product type: Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage): 45 mm

Nominal diameter (post-shrinkage): 12 mm

Factory colour: Black

Shrinkage: 3:1

Heatshrink features: Thick-walled
Printable

Content: 1 m

Material: Polyolefin

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 127490

Halogen-free: Yes

Length: 1 m

Type: SR3 45-12/1000 sw

Wall thickness (post-shrinkage): 4.4 mm

Documents & Downloads

Datasheet

Datasheet 3784157 CellPack 127490 Heatshrink w/o adhesive Black 45 mm 12 mm Shrinkage:3:1 1 m

Security datasheet

Security datasheet 3784157 CellPack 127490 Heatshrink w/o adhesive Black 45 mm 12 mm Shrinkage:3:1 1 m

Description

The SR3 heat-shrinkable sleeves are thick-walled, without thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.

This text is machine translated.
