Name: CellPack 127522 Heatshrink + adhesive Black 75 mm 20 mm Shrinkage:3:1 1 m
Brand: CellPack
SKU: 3784006

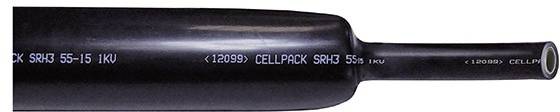

Black heat-shrink tubing labeled 'CELLPACK SRH3 55-15 1KU' in white text, shown cut to reveal the hollow end.

Product type

Heatshrink + adhesive

Nominal inside diameter (pre-shrinkage)

75 mm

Nominal diameter (post-shrinkage)

20 mm

Heatshrink features

Thick-walled

incl. adhesive

Printable

Content

1 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shrink hose W. adhesive, in 1m Abch SRH3 75-20/1000 BLK

1 m
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 75 mm

Technical specifications

Product type: Heatshrink + adhesive

Nominal inside diameter (pre-shrinkage): 75 mm

Nominal diameter (post-shrinkage): 20 mm

Factory colour: Black

Shrinkage: 3:1

Heatshrink features: Thick-walled
incl. adhesive
Printable

Content: 1 m

Material: Polyolefin

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 127522

Halogen-free: Yes

Length: 1 m

Type: SRH3 75-20/1000 sw

Wall thickness (post-shrinkage): 4.4 mm

Documents & Downloads

Datasheet

Datasheet 3784006 CellPack 127522 Heatshrink + adhesive Black 75 mm 20 mm Shrinkage:3:1 1 m

User & Safety Instructions

User & Safety Instructions 3784006 CellPack 127522 Heatshrink + adhesive Black 75 mm 20 mm Shrinkage:3:1 1 m

Description

The SRH3 type heat shrink tubing is thick walled, with thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.

This text is machine translated.
