Name: CellPack 143764 Heatshrink w/o adhesive Black 22 mm 6 mm Shrinkage:3:1 30 m
Brand: CellPack
SKU: 3784109

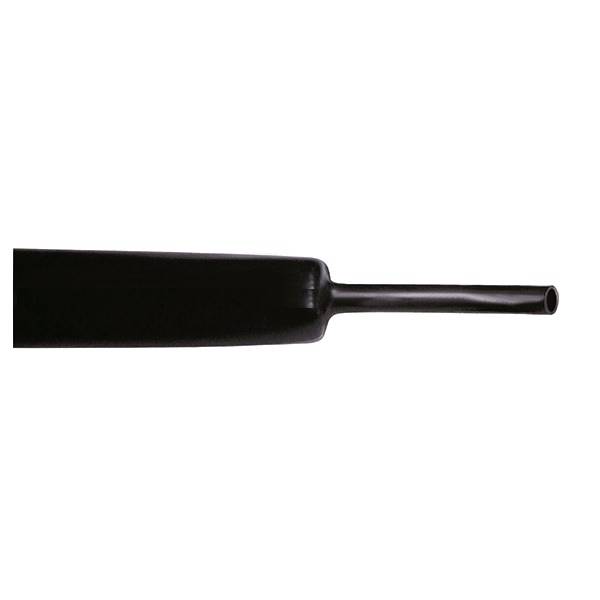

Black heat-shrink tubing sleeve with a narrow tube end, shown on a white background.<br>

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

22 mm

Nominal diameter (post-shrinkage)

6 mm

Heatshrink features

with partition

Printable

Content

30 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shrink tubing without adhesive SR2/22-6/black/30m

30 m
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 22 mm

Technical specifications

Product type: Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage): 22 mm

Nominal diameter (post-shrinkage): 6 mm

Factory colour: Black

Shrinkage: 3:1

Heatshrink features: with partition
Printable

Content: 30 m

Material: Polyolefin

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 143764

Halogen-free: Yes

Length: 30 m

Type: SR2/22-6/schwarz/30m

Wall thickness (post-shrinkage): 2.6 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3784109 CellPack 143764 Heatshrink w/o adhesive Black 22 mm 6 mm Shrinkage:3:1 30 m

Security datasheet

Security datasheet 3784109 CellPack 143764 Heatshrink w/o adhesive Black 22 mm 6 mm Shrinkage:3:1 30 m

Description

The SR2 heat-shrinkable tubes are medium-walled, without thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.

This text is machine translated.
