Name: CellPack 144527 Heatshrink + adhesive Black 30 mm 8 mm Shrinkage:3:1 1 pc(s)
Brand: CellPack
SKU: 3783903

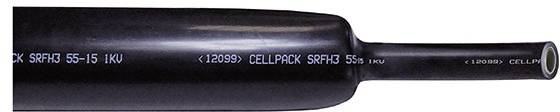

Black heat shrink tubing labeled 'CELLPACK SRFH3 55-15 1KV' shown in close-up against a white background.

Product type

Heatshrink + adhesive

Nominal inside diameter (pre-shrinkage)

30 mm

Nominal diameter (post-shrinkage)

8 mm

Heatshrink features

Thick-walled

incl. adhesive

Printable

Content

1 pc(s)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shrink hose flame-retardant with adhesive. SRFH3 H1 30-8/1000 black

1 pc(s)
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 30 mm

Technical specifications

Product type: Heatshrink + adhesive

Nominal inside diameter (pre-shrinkage): 30 mm

Nominal diameter (post-shrinkage): 8 mm

Factory colour: Black

Shrinkage: 3:1

Heatshrink features: Thick-walled
incl. adhesive
Printable

Content: 1 pc(s)

Material: Polyolefin

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 144527

Halogen-free: No

Length: 1 m

Type: SRFH3 30-8/1000 sw

Wall thickness (post-shrinkage): 3.5 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3783903 CellPack 144527 Heatshrink + adhesive Black 30 mm 8 mm Shrinkage:3:1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3783903 CellPack 144527 Heatshrink + adhesive Black 30 mm 8 mm Shrinkage:3:1 1 pc(s)

Description

The heat shrink tubes of the type SRFH3 are thick walled, with thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.
