Name: CellPack 144596 Heatshrink w/o adhesive Black 75 mm 20 mm Shrinkage:3:1 5 pc(s)
Brand: CellPack
SKU: 3783889

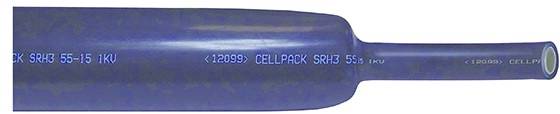

Blue insulated cable with a thicker center section narrowing to a smaller cylindrical end, labeled with white text.

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

75 mm

Nominal diameter (post-shrinkage)

20 mm

Heatshrink features

Thick-walled

Printable

Content

5 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shrink hose thick-walled SR3 75-20/1000 BLK

5 pc(s)
Shrinkage: 3:1
Black
Nominal inside diameter (pre-shrinkage): 75 mm

Technical specifications

Product type: Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage): 75 mm

Nominal diameter (post-shrinkage): 20 mm

Factory colour: Black

Shrinkage: 3:1

Heatshrink features: Thick-walled
Printable

Content: 5 pc(s)

Material: Polyolefin

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 144596

Halogen-free: Yes

Length: 1 m

Type: SR3 75-20/1000 sw

Wall thickness (post-shrinkage): 4.5 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3783889 CellPack 144596 Heatshrink w/o adhesive Black 75 mm 20 mm Shrinkage:3:1 5 pc(s)

Security datasheet

Security datasheet 3783889 CellPack 144596 Heatshrink w/o adhesive Black 75 mm 20 mm Shrinkage:3:1 5 pc(s)

Description

The SR3 heat-shrinkable sleeves are thick-walled, without thermoplastic adhesive with a shrink ratio of 3:1. Typical areas of application are the pressure and moisture protection of cables as well as the use in shrink sleeves and shrink sleeves.

This text is machine translated.
