Name: CellPack 144884 Heatshrink w/o adhesive Brown 19 mm 6 mm Shrinkage:3:1 30 m
Brand: CellPack
SKU: 3784183

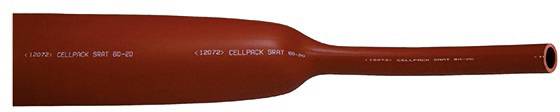

Red industrial pipe or hose with a wider curved section on the left narrowing to a long tube on the right, labeled with small white text.

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

19 mm

Nominal diameter (post-shrinkage)

6 mm

Heatshrink features

Thick-walled

Printable

Content

30 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Heat shrink tubing Thick walled SRAT 19-6/m

30 m
Shrinkage: 3:1
Brown
Nominal inside diameter (pre-shrinkage): 19 mm

Technical specifications

Product type: Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage): 19 mm

Nominal diameter (post-shrinkage): 6 mm

Factory colour: Brown

Shrinkage: 3:1

Heatshrink features: Thick-walled
Printable

Content: 30 m

Material: Polyolefin

Min. temperature: -40 °C

Max. temperature: 120 °C

Manufacturer part #: 144884

Halogen-free: Yes

Length: 30 m

Type: SRAT 19-6/m

Wall thickness (post-shrinkage): 3 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3784183 CellPack 144884 Heatshrink w/o adhesive Brown 19 mm 6 mm Shrinkage:3:1 30 m

User & Safety Instructions

User & Safety Instructions 3784183 CellPack 144884 Heatshrink w/o adhesive Brown 19 mm 6 mm Shrinkage:3:1 30 m

Description

The heat shrink tubes of the type SRAT are thick-walled, without thermoplastic adhesive with a shrink ratio of 3:1. Typical application areas are wire insulation hoses in case of end closures from 3.6 to 42 kV as well as protection against corrosion.

This text is machine translated.
