Name: CellPack 145106 Heatshrink w/o adhesive Black 4.8 mm 2.4 mm Shrinkage:2:1 300 m
Brand: CellPack
SKU: 3784111

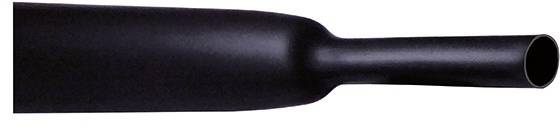

Black tapered cylindrical pipe or nozzle with a wider end on the left and narrow open tip on the right, shown on a white background.

Product type

Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage)

4.8 mm

Nominal diameter (post-shrinkage)

2.4 mm

Heatshrink features

Thin-walled

Printable

Content

300 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Shrink hose W/O adhesive SRC1 4.8-2.4/m SW

300 m
Shrinkage: 2:1
Black
Nominal inside diameter (pre-shrinkage): 4.8 mm

Technical specifications

Product type: Heatshrink w/o adhesive

Nominal inside diameter (pre-shrinkage): 4.8 mm

Nominal diameter (post-shrinkage): 2.4 mm

Factory colour: Black

Shrinkage: 2:1

Heatshrink features: Thin-walled
Printable

Content: 300 m

Material: Polyolefin

Min. temperature: -30 °C

Max. temperature: 105 °C

Manufacturer part #: 145106

Halogen-free: Yes

Length: 300 m

Type: SRC1 4.8-2.4/m sw

Wall thickness (post-shrinkage): 0.52 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3784111 CellPack 145106 Heatshrink w/o adhesive Black 4.8 mm 2.4 mm Shrinkage:2:1 300 m

User & Safety Instructions

User & Safety Instructions 3784111 CellPack 145106 Heatshrink w/o adhesive Black 4.8 mm 2.4 mm Shrinkage:2:1 300 m

Description

The SRC1 type heat shrink tubing is thin-walled, without thermoplastic adhesive with a shrink ratio of 2:1. Typical applications include protection for cables against chemical influences, as well as good mechanical protection.

This text is machine translated.
