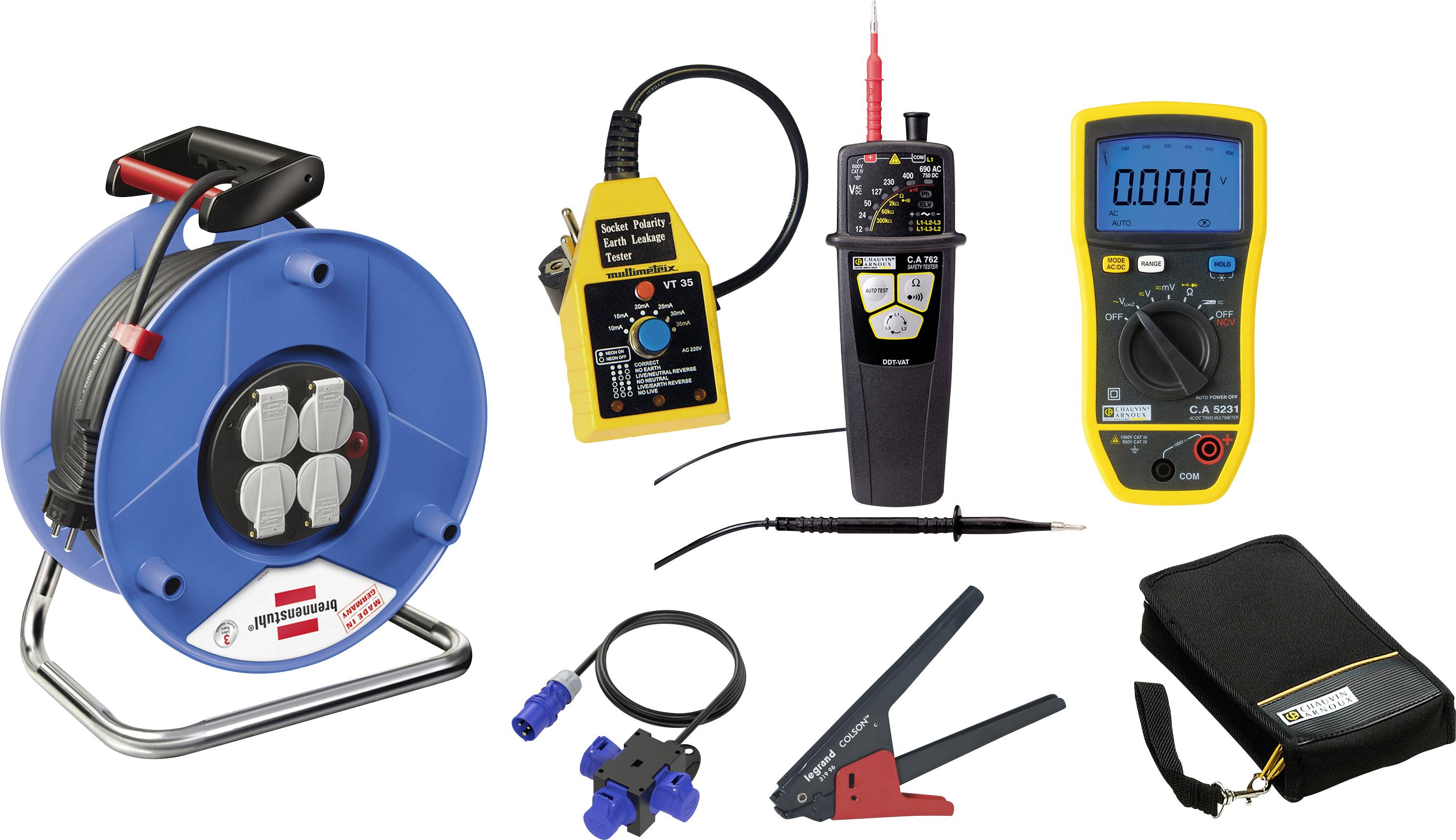

Name: Chauvin Arnoux KIT - MONTAGE Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Brand: Chauvin Arnoux
SKU: 3410151

Highlights & Details

KIT - MONTAGE

CAT III 1000 V, CAT IV 600 V

Technical specifications

CA 762 Voltage tester
Voltage testing
Voltages:
12 V ≤ U ≤ 690 VAC
12 V ≤ U ≤ 750 VDC
Frequencies: DC, 16 2/3 Hz to 800 Hz
400 kΩ input impedance
Max. Peak current 3.5 mARMS
Polarity indicator: Yes
Display of dangerous voltages:
The red LED (extra low voltage) lights up as soon as the voltage is transmitted via a non-hazardous extra-low voltage
And blinks the faster the higher the connected voltage
Display of external conductor / neutral conductor:
At more than 50 V (45 - 65 Hz)
At more than 150 V (16 2/3 Hz - 45 Hz)
Acoustic continuity test
Response threshold: 100 Ω typical (150 Ω max.)
Extended continuity test: 2 kΩ, 60 kΩ, 300 kΩ
Test current: ≤ 1 mA
Open circuit voltage ≤ 3.3 V
Protection: Up to 1000 V.
Rotating field direction display: 2-wire method
VOLTAGE L-L 50 V ≤ U ≤ 690 VAC
Frequency: Between 45 Hz and 400 Hz
Acoustic signal: Interrupted sound when voltage is detected, continuous tone when continuity test is performed
Standards and electrical safety:
IEC 61010 600 V CAT IV.
IEC 61243-3 for voltage tester
IEC 61326-1, Emissions and Immunity in Industrial Environments
Enclosure rating:
Housing IP65
Test probes (depending on option and item no.): IP2X
Climate conditions Use from -15 °C to +45 °C / 20% to 95% relative. Humidity
Power supply 2 batteries 1.5 V (AAA or LR3)
Battery life: 7 000 measurements each of 10 sec.

Product type: Handheld multimeter

Voltage DC reading range (max.): 1000 V

V AC reading range (max.): 1000 V

A DC reading range (max.): 600 A

Amperage reading range AC (max.): 600 A

Basic accuracy: 0.2 %

Interfaces: none

Power supply (details): Battery 9 V

Height: 155 mm

Width: 75 mm

Length: 75 mm

Weight: 320 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC
DC

Current reading: AC/DC

Type: KIT - MONTAGE

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 75 x 75 x 155 mm

Documents & Downloads

Datasheet

Datasheet 3410151 Chauvin Arnoux KIT - MONTAGE Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

User & Safety Instructions

User & Safety Instructions 3410151 Chauvin Arnoux KIT - MONTAGE Handheld multimeter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

Description

CA 5231 Multimeter (TRMS)
This compact digital multimeter meets all the requirements of craftsmen in the electrical industry excellent.
This easy-to-use device offers optimum readability with 6,000-point bar graph and backlight.
The two off positions allow faster working, with non-contact voltage detection possible in an off position. The screen turns red when the device is held near a live conductor.
You can measure voltages up to 600 A with the supplied clamp-on ammeter compliance with all safety regulations.

CA 762 Voltage tester
The voltage tester (VAT) CA 762 is an essential tool for any electrician to check if there is enough power before any interference into an electrical system connected to the mains. It meets the standard IEC 61243-3 output 3 and can therefore be used in all outdoor and indoor systems of category 600 V CAT IV. In order to comply with certain standards and regulations applicable in some countries, there are two order numbers - with and without IP2X accessories. The CA 762 has a redundant safety system with the ELV LED, which flashes when a voltage of more than 50 VAC or 120 VDC is present.
A comprehensive self-test of the CA 762 tests the electrical circuits, the power supply, the displays and the correct condition of the test leads. The test tip and the cables can be removed. With the optional adapter CA 753, you can test on earthing-contact sockets quickly and easily.

Garant cable reel 50 m
Drum body made of special plastic on galvanized carry frame
Ergonomic hand grip with axle for perfect cable guide with winding and unrolling
PLUG 2P+T 16 A/230 V
4 sockets tested according to CEBEC, with increased protection against accidental contact and with overheating protection and overload

CEE-Cara-distributor 16 A 1.5m cable
Mobile plastic distributor type ST.ANTON with 1.5m cable H07RN-F 3G1,5mm² and CEE caravan plug 16A 3 pin 230V. Output: 3x CEE-Cara-Socket 16A 3 pin 230V unsecured. Distributor is connected ready for operation.

Cable-tie gun
Legrand collet chucks, for cable ties Colson and Colring up to max. 9 mm wide, for tightening the cable ties and burr-free cutting off the excess lengths in one operation.

VT 35 socket and FI tester
The Multimatrix VT 35 is a very easy to use tester for sockets and FI-protection switch (10 mA and 30 mA).

It can test FI circuit-breaker from 10 to 35 mA. The connection is done quickly and easily via the socket.

In addition, the following tests can be carried out:
No phase, no earth, no neutral wire
Reverse phase/neutral conductor and phase/earth
