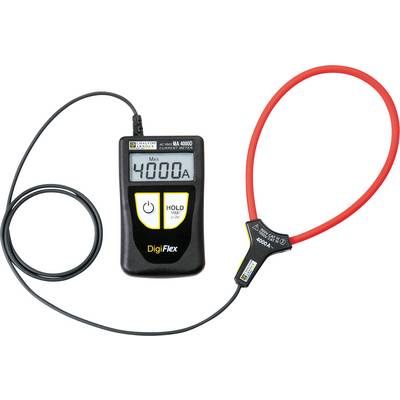

A digital clamp ammeter with a red flexible sensor and display shows '4000A'. Suitable for measuring high alternating currents.

A digital clamp ammeter with a red flexible sensor and display shows '4000A'. Suitable for measuring high alternating currents.

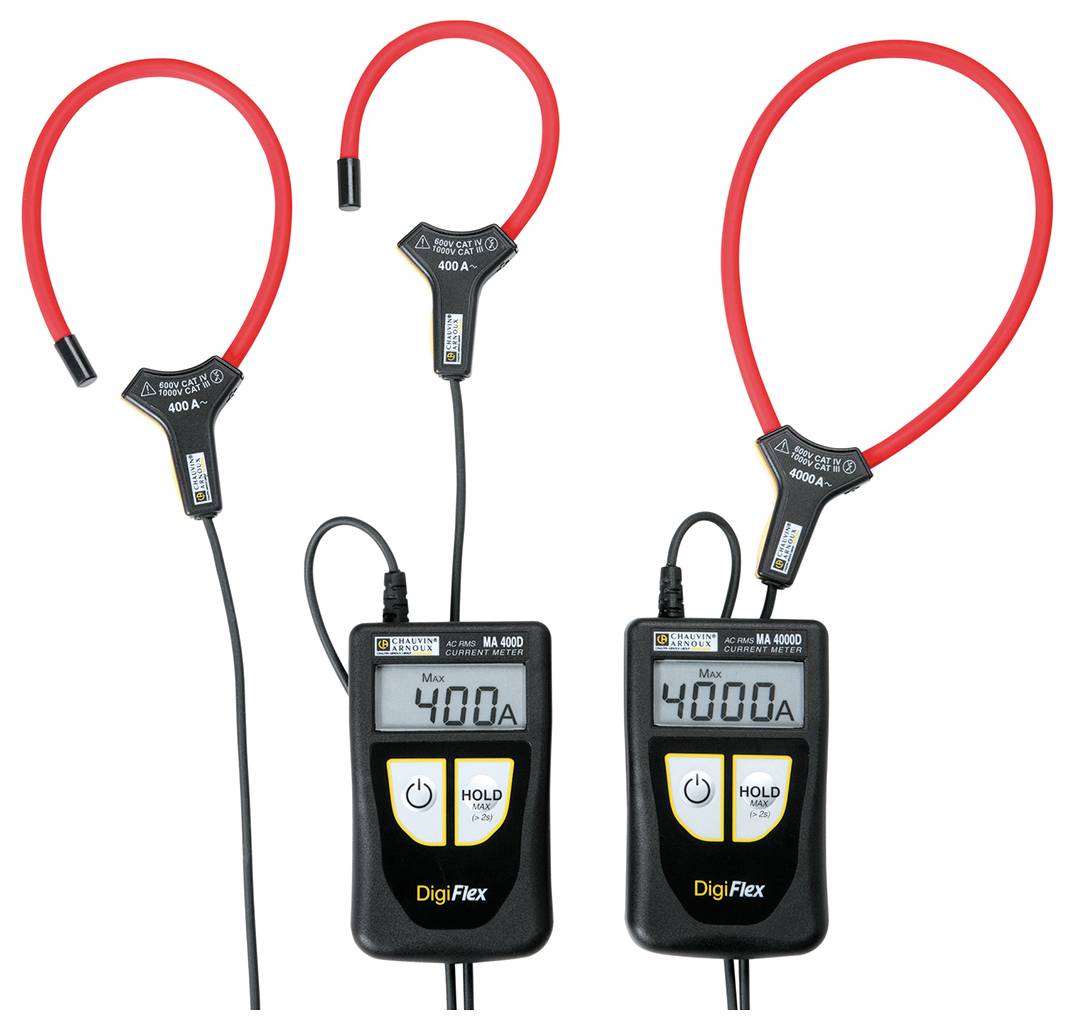

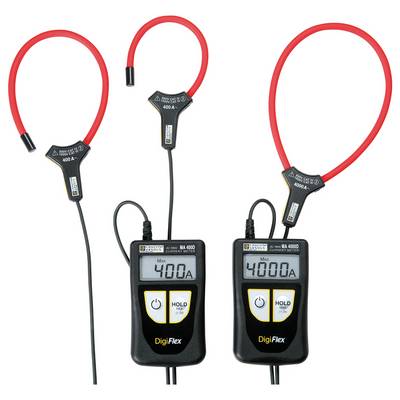

Two digital flexible current measurement devices with red sensors, each indicating 400A and 4000A.

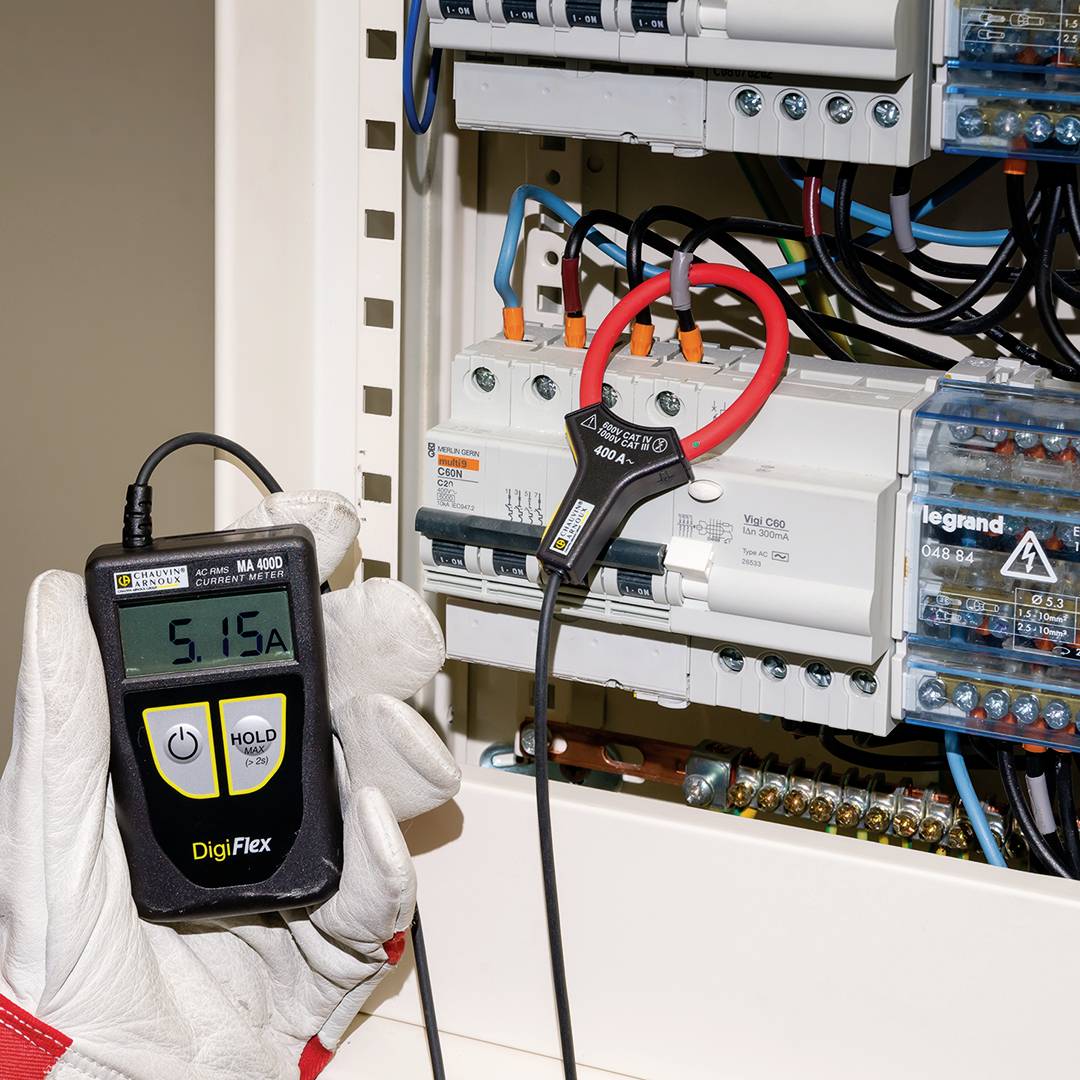

An electrician is measuring the electrical current in a fuse box with a digital measuring device, which displays '5.15 A'.

1/3

Chauvin Arnoux

Datasheet (PDF)

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 259.66 / piece)

€

Report legal concerns

Highlights & Details

MA 4000D

CAT IV 600 V

Technical specifications

Product type: Clamp meter

A AC reading range (min.): 0.1 A

Amperage reading range AC (max.): 4000 A

Measurement type (details): True RMS

Frequency range: 10 Hz - 3 kHz Hz

Interfaces: none

Power supply (details): 2x AAA battery

Height: 100 mm

Width: 60 mm

Length: 20 mm

Weight: 130 g

: Manufacturer's standards (no certificate)

Reading category: CAT IV 600 V

Current reading: AC

Type: MA 4000D

Display: Digital

Display (counts): 4000

Dim: (L x W x H) 20 x 60 x 100 mm

Opening range of current clamps: 350 mm

Documents & Downloads

Datasheet

Datasheet 674473 Chauvin Arnoux MA 4000D Clamp meter, Handheld multimeter Digital CAT IV 600 V Display (counts): 4000

User & Safety Instructions

European union

User & Safety Instructions 674473 Chauvin Arnoux MA 4000D Clamp meter, Handheld multimeter Digital CAT IV 600 V Display (counts): 4000

User & Safety Instructions 674473 Chauvin Arnoux MA 4000D Clamp meter, Handheld multimeter Digital CAT IV 600 V Display (counts): 4000

Description

The DigiFLEX MA 400D & MA 4000D are equipped with a flexible current measuring loop and are housed in a compact housing. For instance, they can be fitted anywhere in switch cabinets and distribution systems in systems with up to 600 V CAT IV.

The units are mains-independent and have a digital display with 4,000 points, which directly shows the measured current. The devices are easy to install, thanks to an exclusive locking system for the measurement loops, and with their magnetic multifix holder they can be fixed anywhere in the cabinet.

The included belt simplifies the storage of DigiFLEX.

This text is machine translated.

Scope of delivery

2 batteries AAA 1.5 V
1 Velcro strip
1 operating instructions in 5 languages

Frequently Bought Together

(^*All information is plus legal VAT)

Chauvin Arnoux MA 4000D Clamp meter, Handheld multimeter Digital CAT IV 600 V Display (counts): 4000

Chauvin Arnoux MA 4000D Clamp meter, Handheld multimeter Digital CAT IV 600 V Display (counts): 4000

Conrad Electronic

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)

Conrad Electronic

VOLTCRAFT DLA-3L 16 Test lead adapter CEE 16 A - CEE 16 A

VOLTCRAFT DLA-3L 16 Test lead adapter CEE 16 A - CEE 16 A

Conrad Electronic

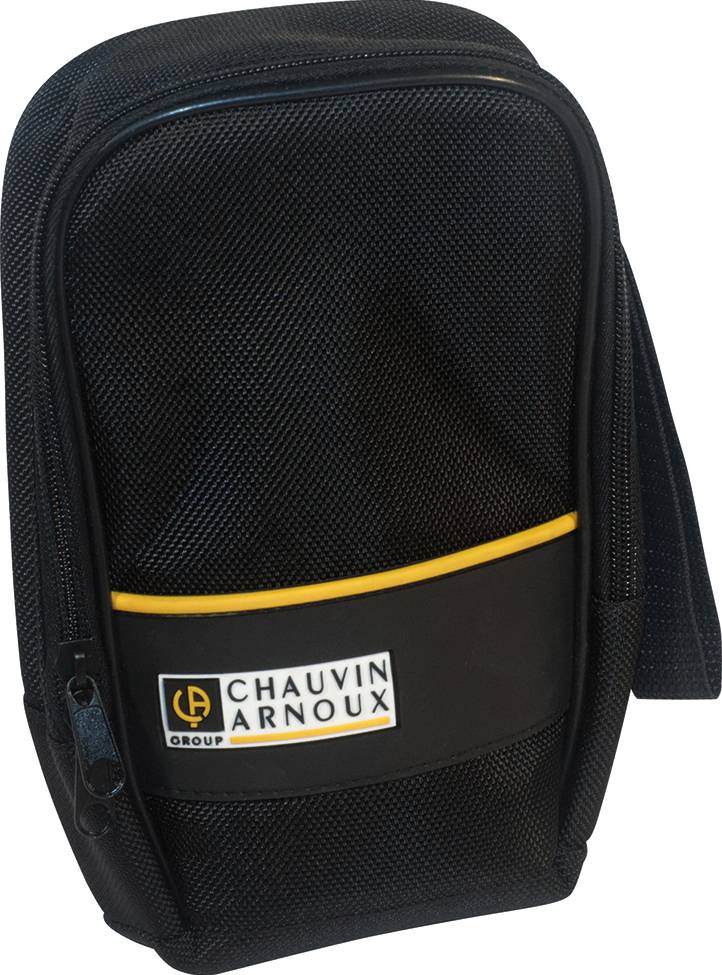

Chauvin Arnoux P01298074 Fire pit bag 1 pc(s)

Chauvin Arnoux P01298074 Fire pit bag 1 pc(s)

Conrad Electronic

Total price:

€ 393.61€ 389.40^*

What kind of Multimeters are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 24 pc(s)

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 24 pc(s)

Conrad Electronic

VOLTCRAFT DLA-1L 16 Test lead adapter 16A PG plug - 16A PG plug

VOLTCRAFT DLA-1L 16 Test lead adapter 16A PG plug - 16A PG plug

Conrad Electronic

VOLTCRAFT DLA-3L 16 Test lead adapter CEE 16 A - CEE 16 A

VOLTCRAFT DLA-3L 16 Test lead adapter CEE 16 A - CEE 16 A

Conrad Electronic

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)

VOLTCRAFT Industrial LR03 AAA battery Alkali-manganese 1350 mAh 1.5 V 1 pc(s)

Conrad Electronic

VOLTCRAFT DLA-3L 32 Test lead adapter CEE 32 A - CEE 32 A

VOLTCRAFT DLA-3L 32 Test lead adapter CEE 32 A - CEE 32 A

Conrad Electronic

Chauvin Arnoux P01298074 Fire pit bag 1 pc(s)

Chauvin Arnoux P01298074 Fire pit bag 1 pc(s)

Conrad Electronic

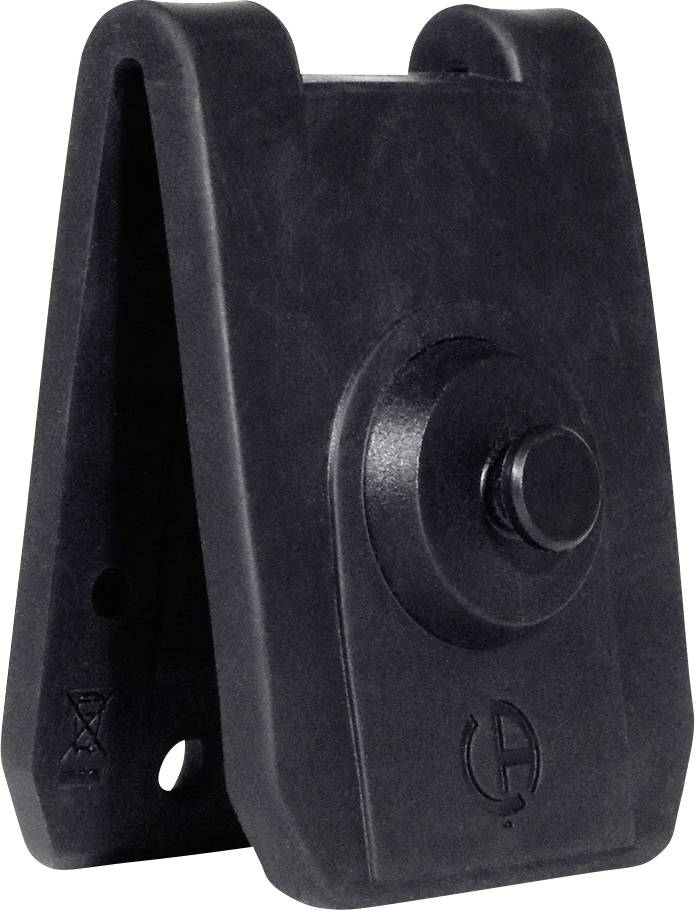

Chauvin Arnoux P01102100Z Multifix Magnetic fastener 1 pc(s)
