VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
EAN:
Part number:
Item no:
Number
Total (€ 168.06 / piece)
€
Highlights & Details

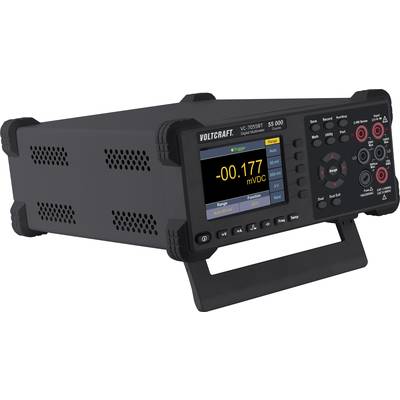

Voltcraft VC-7055BT Bench multimeter
- Resolution up to 4(1/2) digits, 55,000 counts

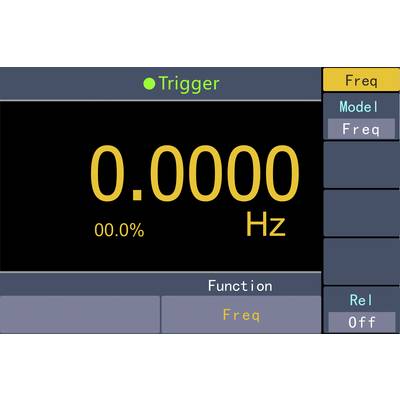

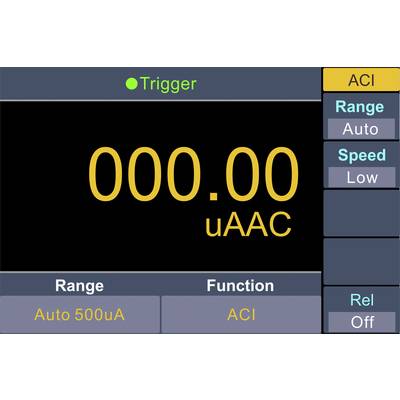

- 9.4 cm (3.7 inch) 480 x 320 pixels high resolution LCD
- Up to 64 readings per second
- CAT II 600 V
- True RMS AC voltage / current measurement
- Dual-line display for measurement data
- SCPI support
- IO interface RS232
Technical specifications

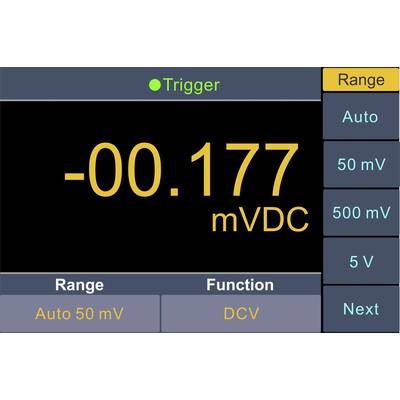

- Voltage reading range DC (min.)
50 mV
- Product type
Bench multimeter
- Voltage DC reading range (max.)
1000 V

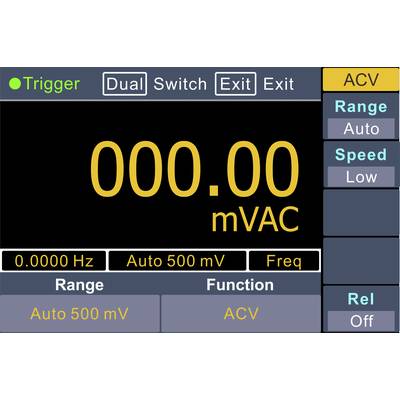

- V AC reading range (min.)
500 mV
- V AC reading range (max.)
750 V

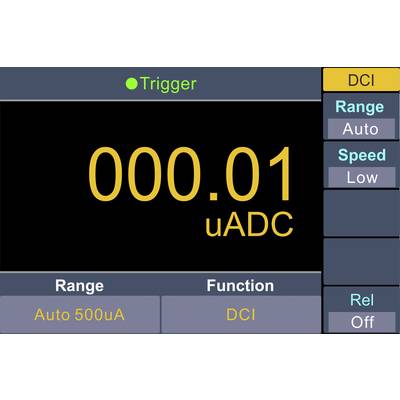

- Amperage reading range DC (min.)
500 µA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
500 µA
- Amperage reading range AC (max.)
10 A

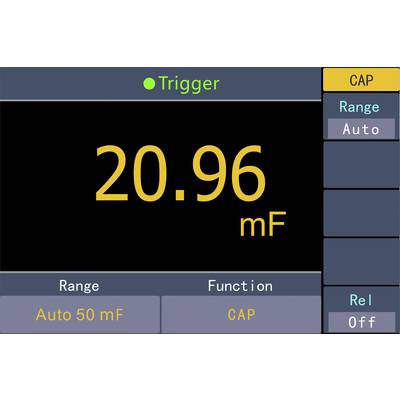

- Reading range - capacity
50 nF - 50 mF
- Frequency reading range
10 Hz - 60 MHz
- DC resistance
50 MΩ
- AC resistance
50 MΩ
- Basic accuracy
0.025 %
- Measurement type (details)
True RMS
- Frequency range
10 Hz - 60 MHz
- Interfaces
RS232
- Power supply (details)
90 - 240 V AC
- Height
110 mm
- Width
235 mm
- Length
295 mm
- Weight
2.3 kg
Manufacturer's standards (no certificate)
- Reading category
CAT I 1000 V
CAT II 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC-7055BT
- Display
Digital
- Display (counts)
55000
- Dim
(L x W x H) 295 x 235 x 110 mm
- Features
Data logger
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2203066 VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
User & Safety Instructions 2203066 VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
User & Safety Instructions 2203066 VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
User & Safety Instructions 2203066 VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
Information
Information 2203066 VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
Warranty Terms
Warranty Terms 2203066 VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
Download
Download 2203066 VOLTCRAFT VC-7055BT Bench multimeter Digital Data logger CAT I 1000 V, CAT II 600 V Display (counts): 55000
Description

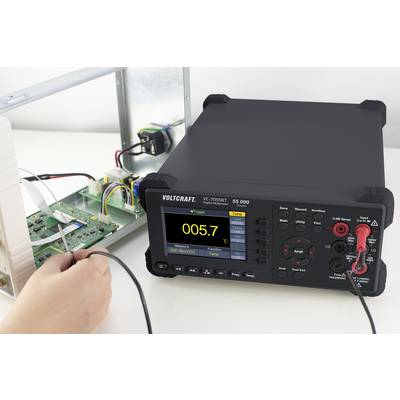

The Voltcraft VC-7055BT is a bench type 4 1/2 digit digital multimeter and offers a wide range of functions for measurement results (Max/Min, dB/dBm). The VC-7055BT has a 9.4 cm (3.7 inches) display and takes up to 64 readings speed per second. The multimeter includes an RS232 interface for easy setup and control. It is ideal for users who require high performance, multiple functions and automatic measurements.
Accurate TRMS readings
The True-RMS measurement enables the exact measurement of asymmetrical voltages and currents that deviate from the basic shape of the sine wave. Asymmetric voltages mostly occur in power regulators, clocked switching regulators, pulse-type chargers, or electronic speed regulators in model construction.
Factory calibration
Calibration according to manufacturer standards and Voltcraft Quality Assurance. The calibration ensures a high-quality product and compliance with tolerance limits.
Accurate TRMS readings
The True-RMS measurement enables the exact measurement of asymmetrical voltages and currents that deviate from the basic shape of the sine wave. Asymmetric voltages mostly occur in power regulators, clocked switching regulators, pulse-type chargers, or electronic speed regulators in model construction.
Factory calibration
Calibration according to manufacturer standards and Voltcraft Quality Assurance. The calibration ensures a high-quality product and compliance with tolerance limits.
Features
- Auto ranging

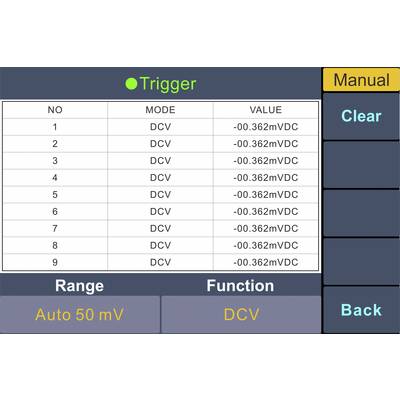

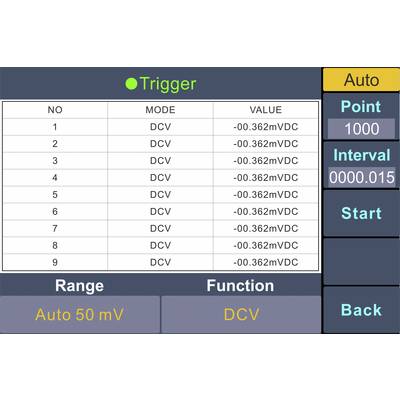

- Internal memory for up to 1000 readings

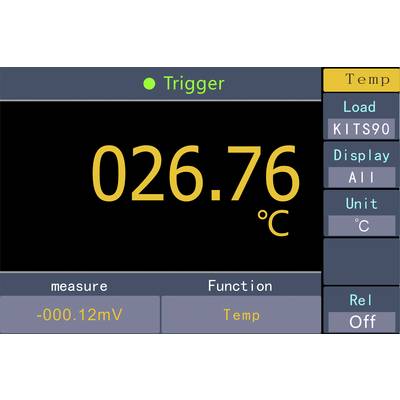

- Temperature measurement: Supports ITS90 K type and PT100 temperature sensors
- Continuity buzzer
- Over-range display
- Data hold function
- Input protection

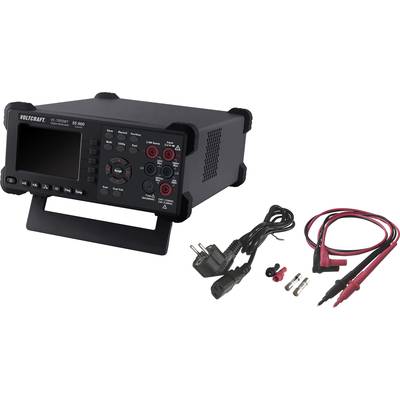

Scope of delivery
- Bench type DMM
- Power cord
- 1x pair of test leads
- 1x pair of alligator clips
- 2x spare fuse
- Software + English manual on CD
- Voltcraft safety information
- Quick guide
