VOLTCRAFT AT-400 Handheld multimeter Digital Vehicle testing CAT IV 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 142.85 / piece)
€
Highlights & Details
Automotive Digital Multimeter AT-400
- With measurement functions for car technology
- Extremely robusts and watertight (IP67)
- Temperature measurement
Technical specifications
- Measurement of dwell angle for 4, 5, 6 and 8 cylinders
- Measurement of speed 600 - 12,000rpm
- Measurement of pulse 1 - 20ms.
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.1 mV
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.01 mA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.01 mA
- Amperage reading range AC (max.)
10 A
- Reading range - resistance
0.1 Ω - 40 MΩ
- Reading range - capacity
1 pF - 40 mF
- Frequency reading range
1 Hz -40 MHz
- Temperature
(K-type): -30 to +1000 °C / (IR) -30 to +550 °C
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
0.8 %
- Measurement type (details)
Average
- Frequency range
50/60 Hz Hz
- Interfaces
none
- Power supply (details)
9 V battery pack
- Height
182 mm
- Width
82 mm
- Weight
375 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 600 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
AT-400
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 82 mm x 182 mm
- Temperature reading range (max.)
+1000 °C
- Temperature reading range (min.)
-30 °C
- Features
Vehicle testing
- Basic accuracy
0.5 %
- Displays
4000 counts
- Reading category
CAT IV 600V
Documents & Downloads
Datasheet
Datasheet 123240 VOLTCRAFT AT-400 Handheld multimeter Digital Vehicle testing CAT IV 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 123240 VOLTCRAFT AT-400 Handheld multimeter Digital Vehicle testing CAT IV 600 V Display (counts): 4000
Conformity certificate
Conformity certificate 123240 VOLTCRAFT AT-400 Handheld multimeter Digital Vehicle testing CAT IV 600 V Display (counts): 4000
Warranty Terms
Warranty Terms 123240 VOLTCRAFT AT-400 Handheld multimeter Digital Vehicle testing CAT IV 600 V Display (counts): 4000
Description

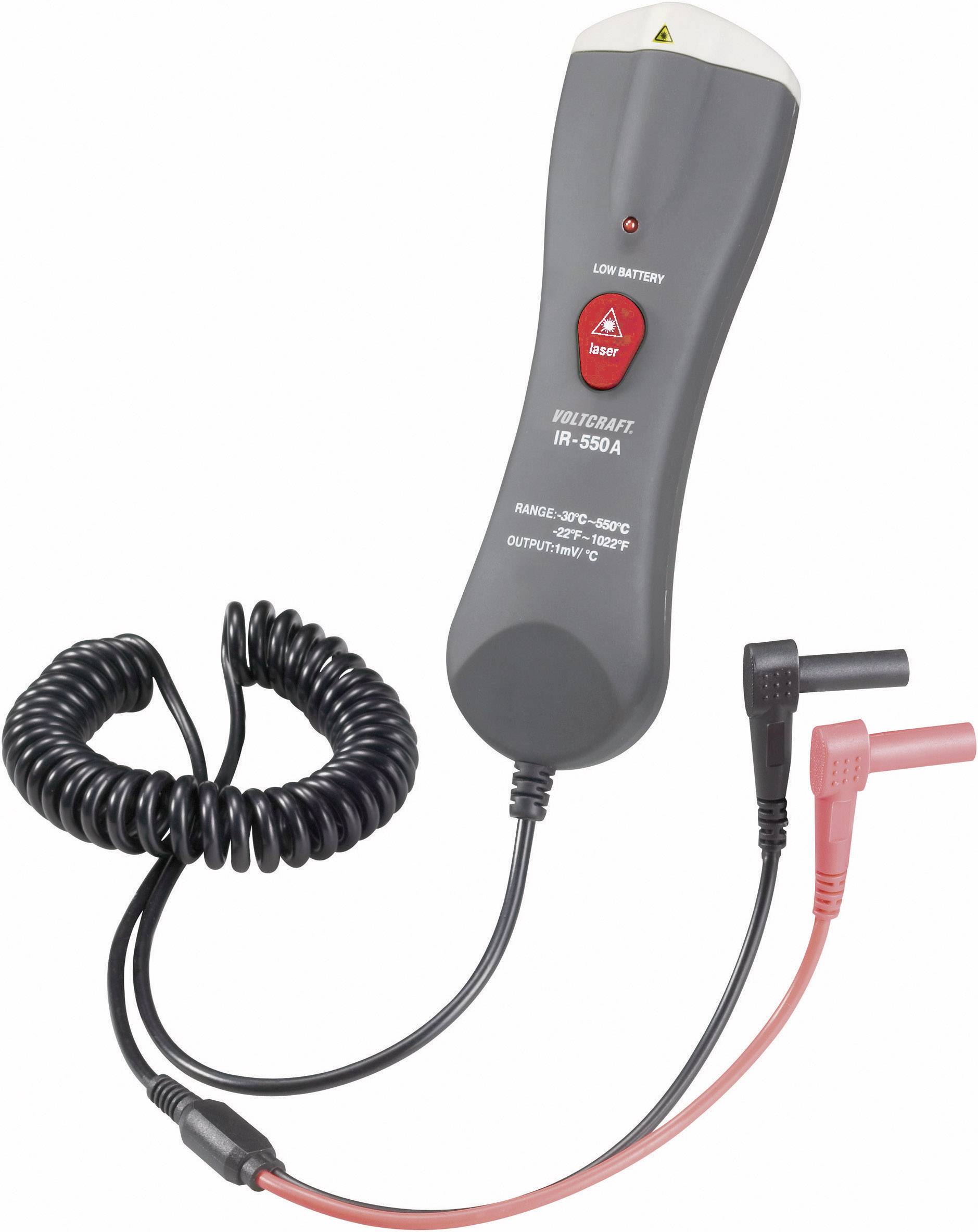

Robust digital multimeter with special measurement ranges for use in cars. Speeds can be measured via an inductive tachometer at motor with and without ignition distributors and dwell angles can be tested. A K-type contact sensor is available for measuring temperature. For temperature measurements at rotating or conducting parts a contact-less IR-temperature measurement adapter is also optionally available.
Features
- Vehicle measurements for speed, dwell angle, duty-cycle and impulse of fuel injection pumps, etc.
- Standard multimeter measurement functions V/AC, V/DC, Ω, °C, mF, Hz, acoustic continuity tester and diode test
- CAT IV 600V
- PEAK-/MIN-/MAX- and HOLD function
- Display lighting
- Auto-Power Off
Scope of delivery
- 1 battery (9 V pack)
- Measurement leads
- K-type temperature sensor
- Inductive tachometer
- Instructions for use.
Frequently Bought Together
(*All information is plus legal VAT) This article
VOLTCRAFT AT-400 Handheld multimeter Digital Vehicle testing CAT IV 600 V Display (counts): 4000
Conrad Electronic
€ 142.85*
VOLTCRAFT 6LR61 9 V / PP3 battery Alkali-manganese 550 mAh 9 V 10 pc(s)
Conrad Electronic
€ 12.60*
VOLTCRAFT VC-511 Clamp meter adapter A/AC reading range: 0 - 400 A A/DC reading range: 0 - 400 A
Conrad Electronic
€ 58.82*
-28%

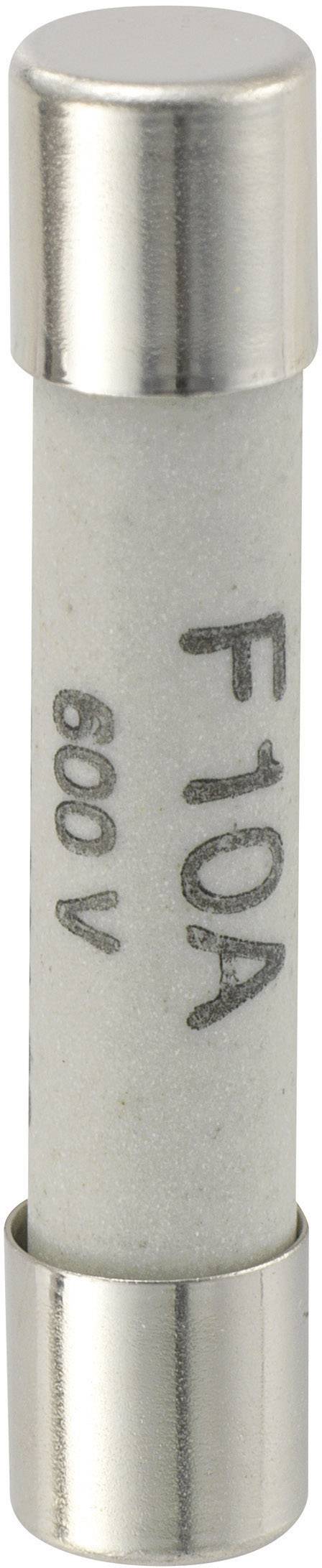

VOLTCRAFT 123422 Spare fuse (Ø x L) 6.3 mm x 32 mm 10 A 600 V Quick response -F- Content 1 pc(s)
