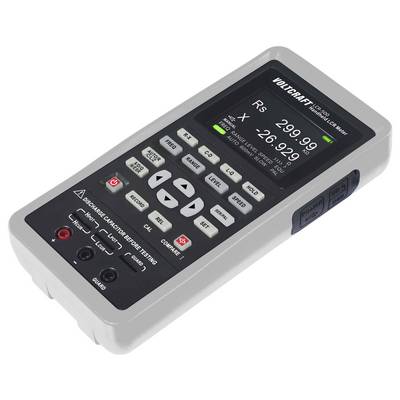

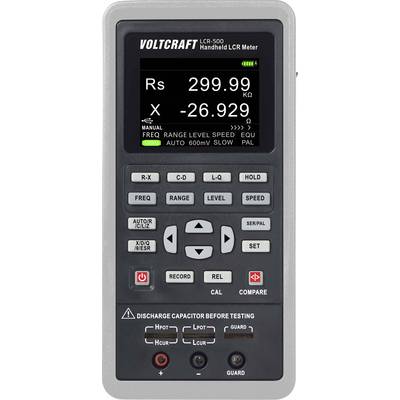

VOLTCRAFT LCR-500 RLC circuit Digital Data logger CAT I Display (counts): 40000

Measurement of inductivity (L), capacity (C) and resistance (R)
Thanks to its compact design, the VOLTCRAFT LCR-500 is suitable not only for testing components at the workplace, but also during service and maintenance work this handy measurement device quickly and reliably delivers accurate results.
Variable parameters and precise measurement results
For all measurements alternatively three or five connections are available. Depending on the requirement, ten test frequencies between 100 Hz and 100 kHz as well as various primary (C/L/R/Z) and secondary parameters (D/Q/X/theta/ESR) can be selected. The measurement frequency can also be set: One, two or four times per second. All measurements can be taken manually or automatically. To obtain exact results of measurement, calibration can be carried out in the open as well as in the short circuit.
Concrete evaluation
The VOLTCRAFT LCR-500 measures values with an accuracy of 0.25% in case of resistance and 0.4% in case of capacitance measurements. The 7.11 cm LCD TFT color display shows the measurement results with a resolution of 40,000 counts. All measurements, results and analyzes can be displayed on the PC via the USB interface.
Handy companion

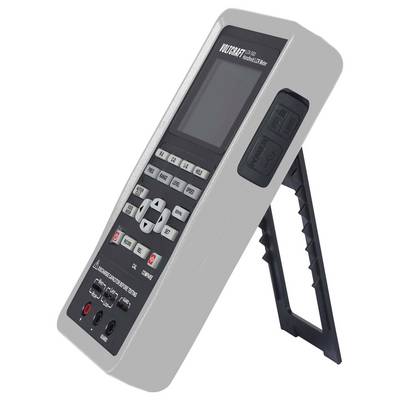

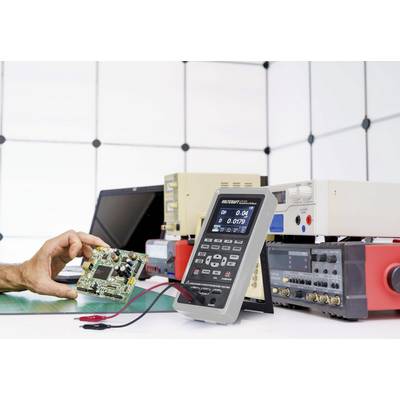

Whether on the workbench or in the control cabinet: The VOLTCRAFT LCR-500 has a practical stand-up display for ideal positioning – anywhere. The integrated belt holder offers much freedom of movement, in which the measurement device is fixed vibration-proof and fall-proof.
Supplied with accessories

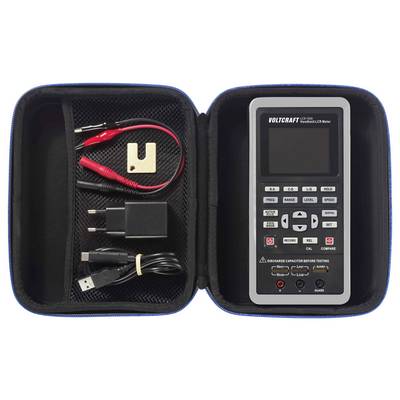

In addition to the LCR-measuring device, a USB-C® data cable, the AC power supply unit, a pair of test leads with banana plugs and alligator clips as well as a short-circuit plate and the operating instructions are included in the delivery package.

This text is machine translated.
