Buy VOLTCRAFT LCR-100 RLC circuit

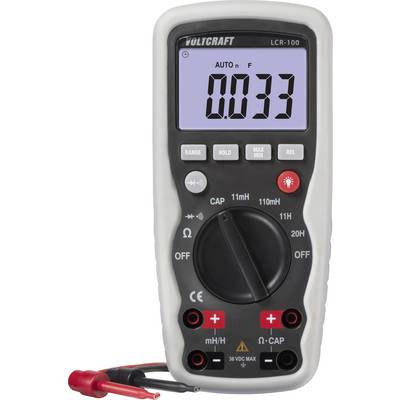

Multimeter shows a reading of 0.033 on the display. Pointer set to 200nF range. Measurement leads connected below.

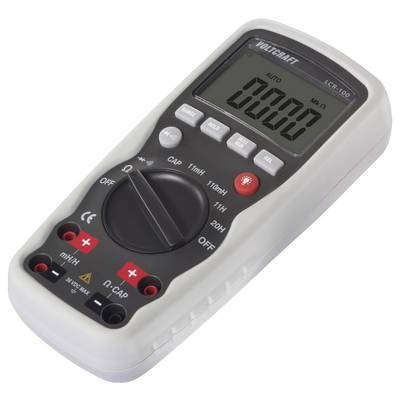

A digital multimeter with an LCD display, black and red test sockets, and several operating buttons.

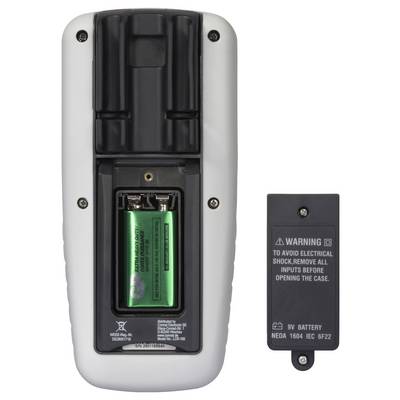

A device with an open back panel, showing a 9V battery inserted. Beside it lies the cover with a warning to remove all connections before opening.

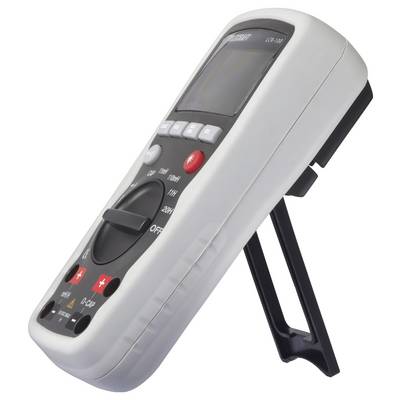

A digital multimeter in side view with a white casing, black display, and red buttons on a black stand.

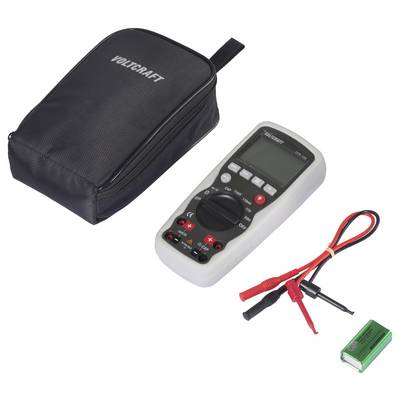

Multimeter set with carry case, test leads and 9V battery.

A digital multimeter in an open black carry case with test leads.

A multimeter displays the value '11.68'. A hand is holding the test probes against a small electrical component.

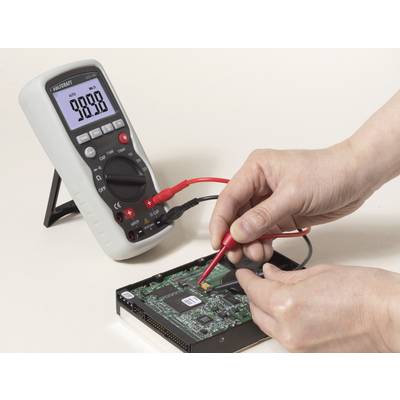

Someone is measuring the voltage on a computer circuit board using a multimeter. The multimeter is displaying 9.888 V.

1/8

Our service for you

79 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 68.90 / piece)

€

Report legal concerns

Highlights & Details

LCR measuring device LCR-100

Extremely robust
Min/Max/REL Function
Big Display with 11 000 Counts

Technical specifications

Product type: RLC circuit

Reading range - resistance: 01 Ω - 110 MΩ

Reading range - capacity: 1 pF - 110 mF

Inductivity reading range: 1 µH - 20 H

Interfaces: none

Power supply (details): 9 V battery pack

Height: 182 mm

Width: 82 mm

Weight: 360 g

: Manufacturer's standards (no certificate)

Type: LCR-100

Dim: (W x H x D) 82 x 182 x 55 mm

Reading frequency: 100/1000 Hz

Depth: 55 mm

Basic accuracy: ± 1.2 %

Displays: LCD 11 000 Counts

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 101392 VOLTCRAFT LCR-100 RLC circuit

Conformity certificate

Conformity certificate 101392 VOLTCRAFT LCR-100 RLC circuit

Warranty Terms

Warranty Terms 101392 VOLTCRAFT LCR-100 RLC circuit

Description

The robust device for measuring resistances, inductances and capacities the equipment is ideally protected By the moulded soft rubber protection and the overload protection of all inputs

Features

Data Hold
Min /Max /REL function
Automatic or manual range selection is possible
Diode test
Continuity tester
Display lighting.

Scope of delivery

Battery
1 set of measuring lead with alligator clips
Storage bag
Operating instructions.

Frequently Bought Together

(^*All information is plus legal VAT)

This article

VOLTCRAFT LCR-100 RLC circuit

Conrad Electronic

€ 68.90^*

VOLTCRAFT 6LR61 9 V / PP3 battery Alkali-manganese 550 mAh 9 V 10 pc(s)

Conrad Electronic

€ 12.60^*

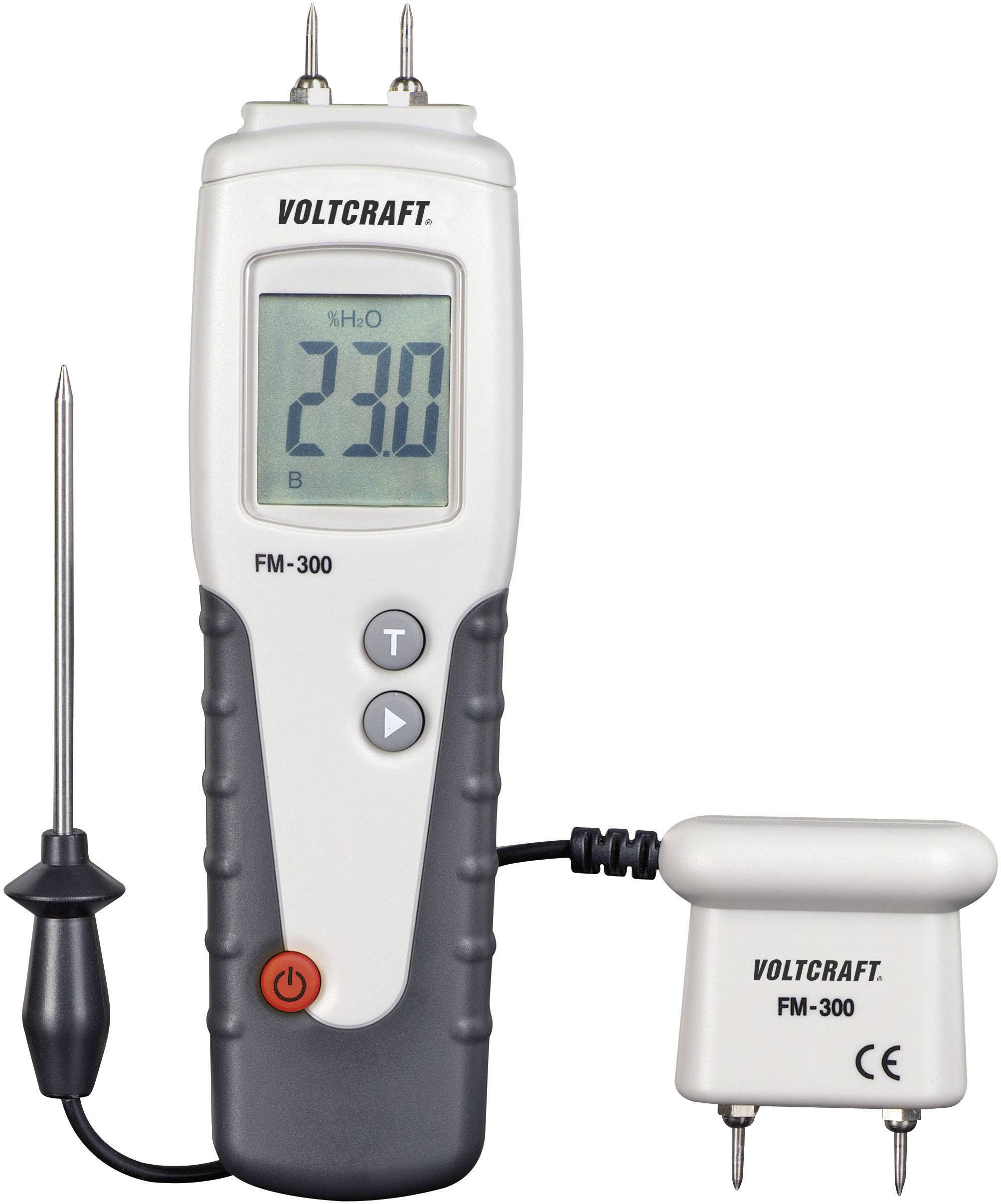

VOLTCRAFT FM-300 Wood moisture meter Wood moisture reading range 6 up to 99 vol% Temperature reading

Conrad Electronic

€ 63.86^*

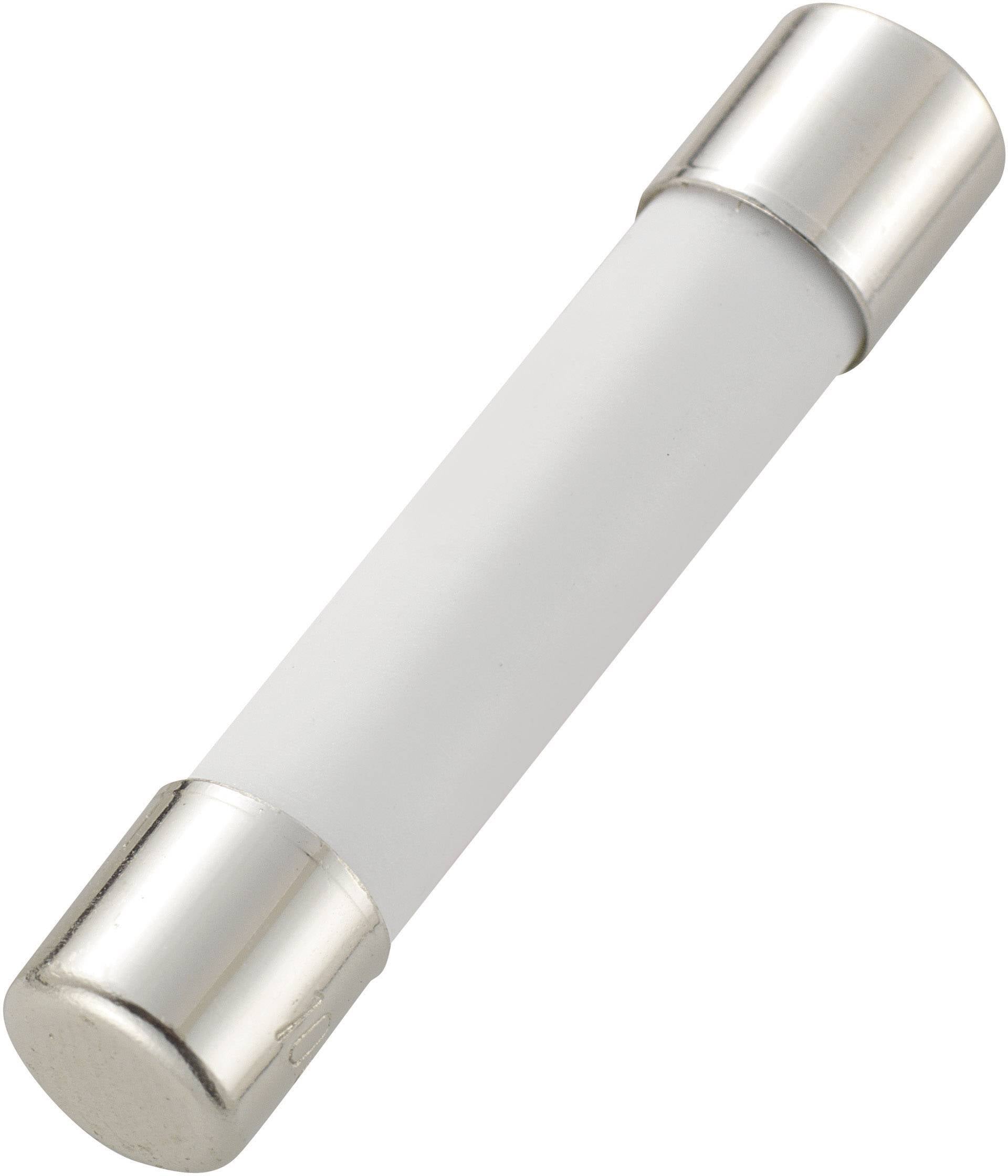

TRU COMPONENTS 442335 6FF-1 Micro fuse (Ø x L) 6.3 mm x 32 mm 0.6 A 1000 V Very quick acting -FF- Content 1 pc(s)

Conrad Electronic

€ 3.35^*

Total price:

€ 148.71^*

What kind of Multimeters are you looking for?

Accessories

(^*All information is plus legal VAT)

The necessary accessories are required to use the article as described.

VOLTCRAFT 6LR61 9 V / PP3 battery Alkali-manganese 550 mAh 9 V 10 pc(s)

Conrad Electronic

€ 12.60^*

VOLTCRAFT 6LR61 9 V / PP3 battery Alkali-manganese 550 mAh 9 V 1 pc(s)

Conrad Electronic

€ 1.25^*

TOOLCRAFT TO-7867917 THL027 SMD LED Neck reading light rechargeable 2.7 W 320 lm

Conrad Electronic

€ 33.61^*

VOLTCRAFT MB-702 Battery test lead adapter - Straight Black, Red

Conrad Electronic

€ 6.71^*

VOLTCRAFT Alligator clip Soldering CAT I Black

Conrad Electronic

€ 1.50^*

VOLTCRAFT Alligator clip Soldering CAT I Red

Conrad Electronic

€ 1.08^*

More interesting products

(^*All information is plus legal VAT)

Gossen Metrawatt M273S Handheld multimeter, Precision tester Calibrated to (DAkkS standards) Digital Data logger CAT III

Conrad Electronic

€ 2,536.97^*

VOLTCRAFT VC-1113 Clamp meter Digital CAT II 1000 V, CAT III 600 V Display (counts): 6000

Conrad Electronic

€ 72.26^*

VOLTCRAFT MT-52 Handheld multimeter Digital Environmental reading mode CAT III 600 V Display (counts): 4000

Conrad Electronic

€ 80.66^*

Gossen Metrawatt M274S Handheld multimeter, Precision tester Calibrated to (DAkkS standards) Digital Data logger CAT III

Conrad Electronic

€ 2,668.07^*

VOLTCRAFT VC-750 E Clamp meter, Handheld multimeter Calibrated to (ISO standards) Digital Splashproof (IP54) CAT IV 600

Conrad Electronic

€ 217.65^*

VOLTCRAFT VC131 Handheld multimeter Digital CAT III 600 V Display (counts): 2000

Conrad Electronic

€ 26.04^*

VOLTCRAFT VC151 Handheld multimeter Digital CAT III 600 V Display (counts): 4000

Conrad Electronic

€ 50.41^*

VOLTCRAFT VC-44 Handheld multimeter Digital CAT III 1000 V Display (counts): 20000

Conrad Electronic

€ 80.66^*

VOLTCRAFT VC232 Handheld multimeter Digital True RMS LoZ CAT III 600 V Display (counts): 2000

Conrad Electronic

€ 47.05^*

VOLTCRAFT VC33 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 5999

Conrad Electronic

€ 88.23^*

VOLTCRAFT VC-523 Clamp meter Digital CAT III 600 V Display (counts): 4000

Conrad Electronic

€ 50.41^*

VOLTCRAFT VC-23 Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 6000

Conrad Electronic

€ 73.94^*

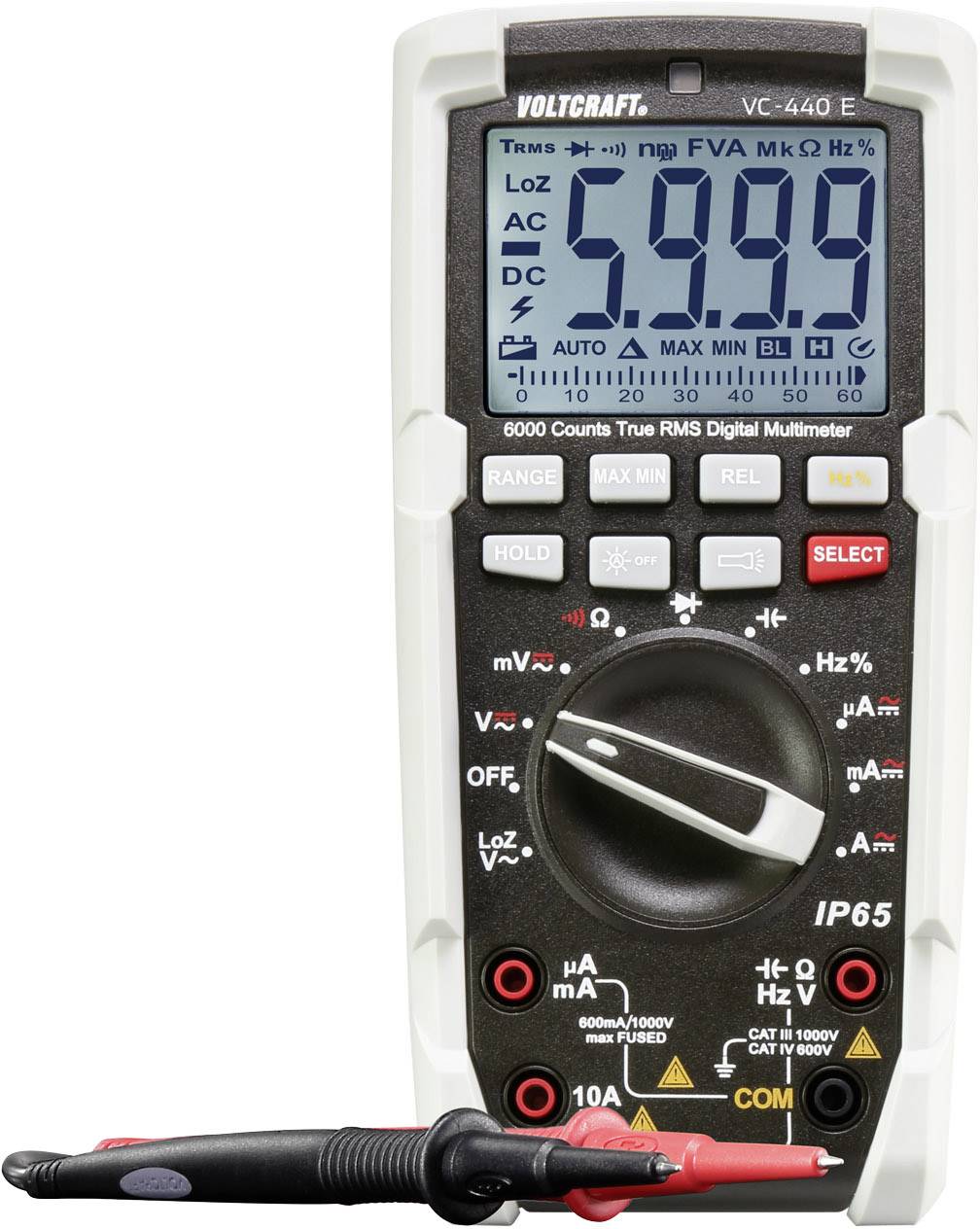

VOLTCRAFT VC-440 E Handheld multimeter Digital Water-jet proof (IP65) CAT III 1000 V, CAT IV 600 V Display (counts): 600

Conrad Electronic

€ 126.04^*

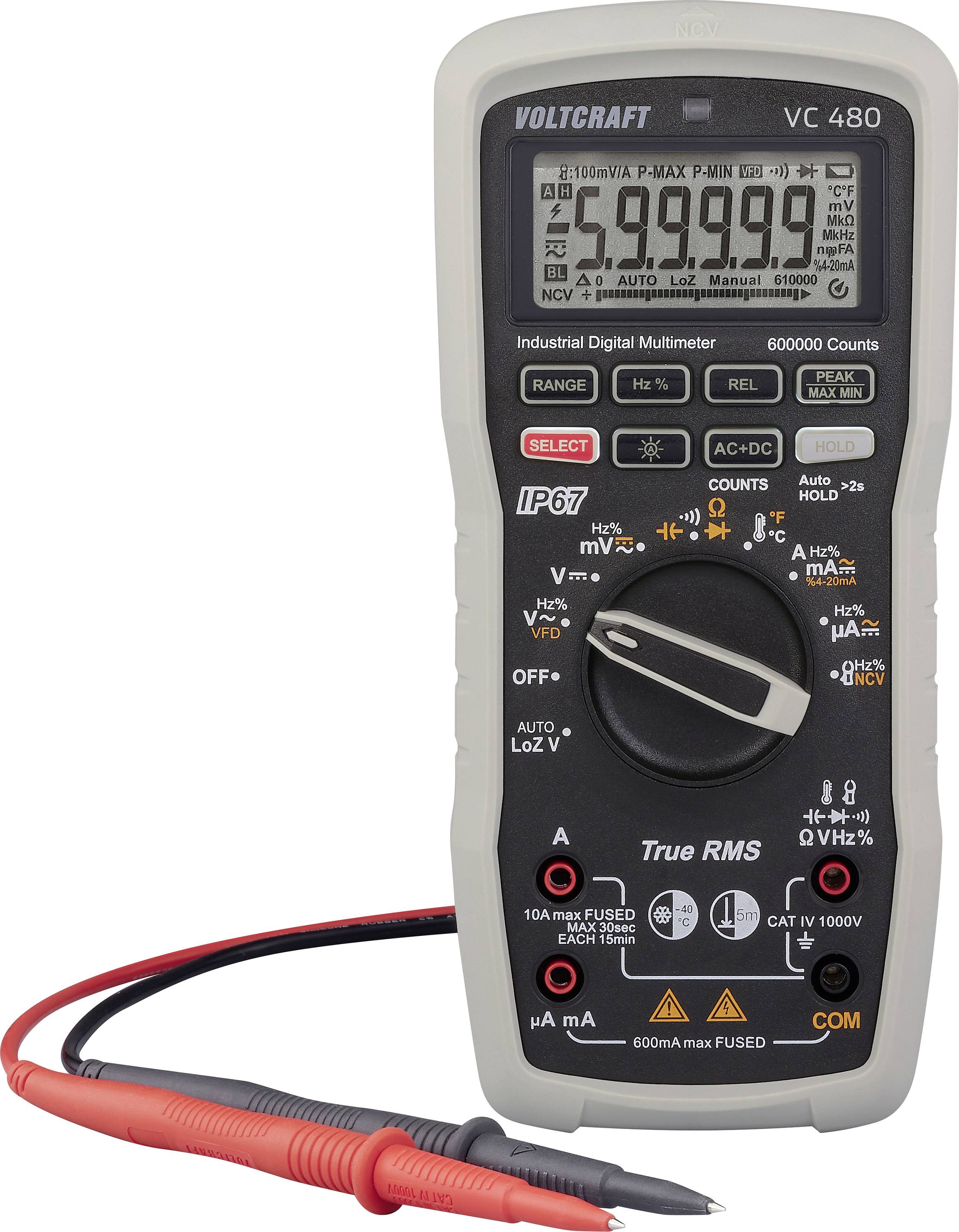

VOLTCRAFT VC 480 Handheld multimeter Digital Waterproof (IP67), LoZ CAT IV 1000 V Display (counts): 600000

Conrad Electronic

€ 419.33^*

VOLTCRAFT VC-371 Clamp meter Digital CAT III 600 V Display (counts): 4000

Conrad Electronic

€ 53.77^*

VOLTCRAFT VC-5080 Handheld multimeter Analogue CAT III 500 V

Conrad Electronic

€ 88.23^*

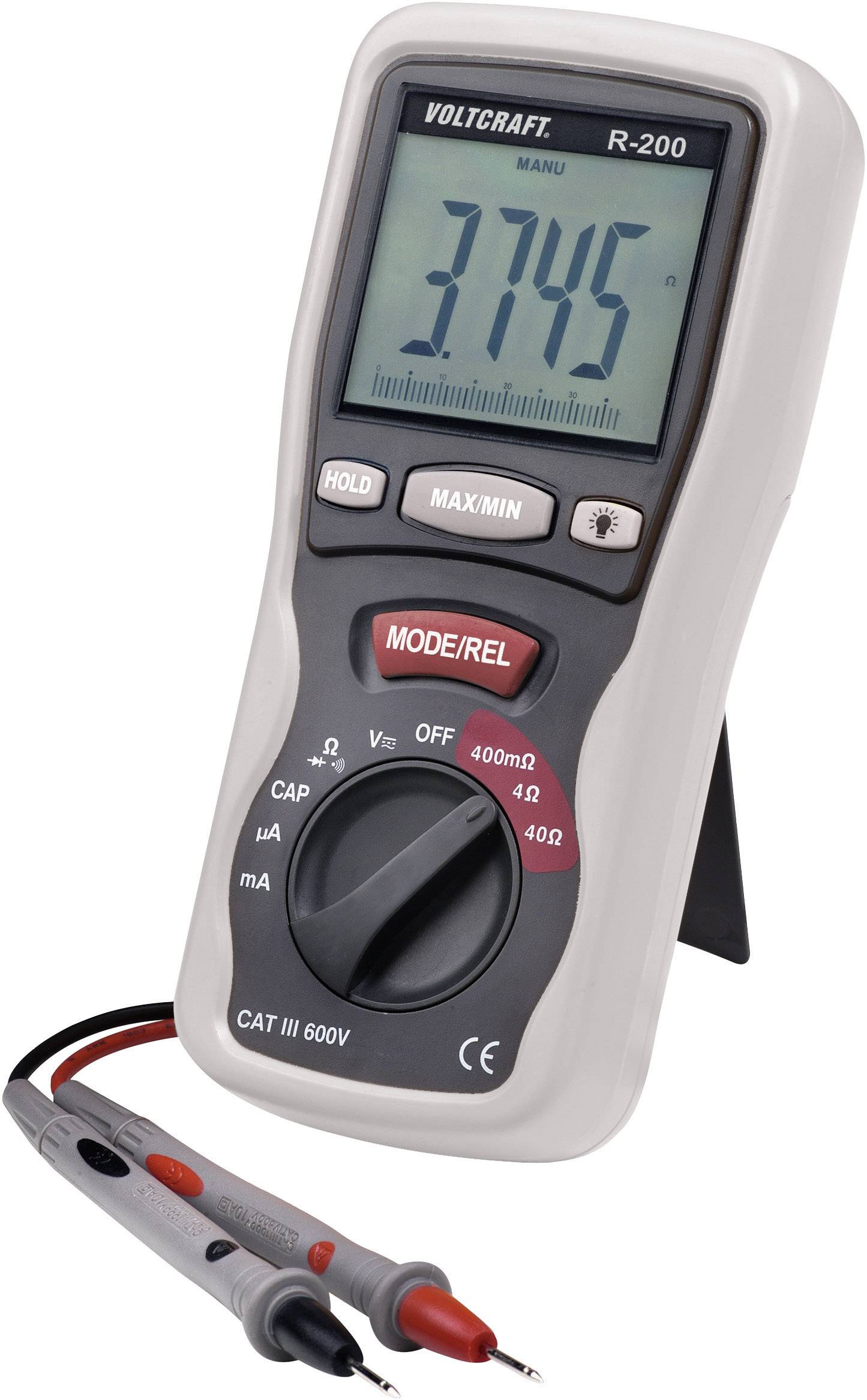

VOLTCRAFT R-200 Component tester Digital CAT III 600 V Display (counts): 4000

Conrad Electronic

€ 117.64^*

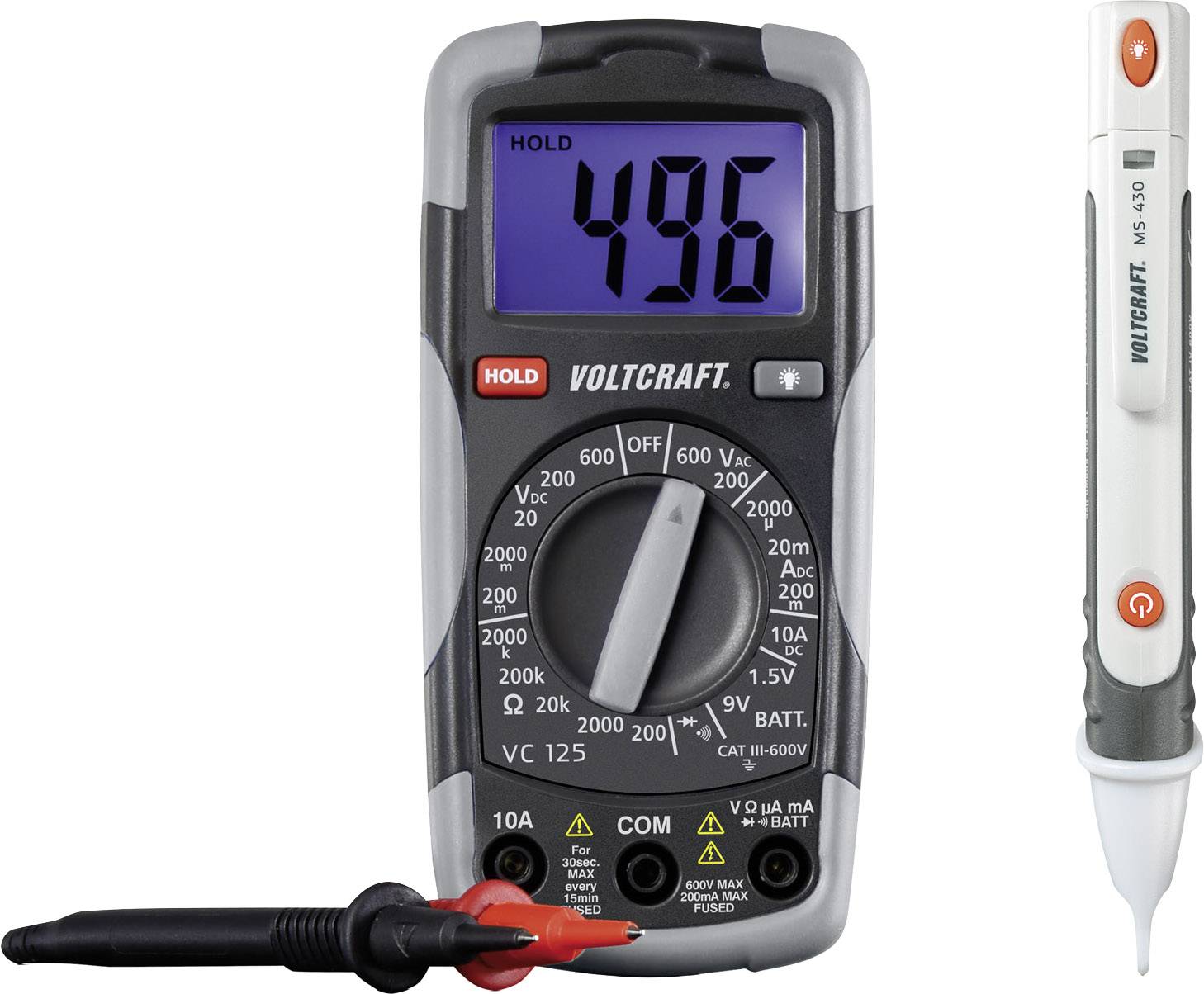

VOLTCRAFT DT-TEST-KIT 150 Handheld multimeter Digital CAT III 600 V Display (counts): 2000

Conrad Electronic

€ 43.69^*

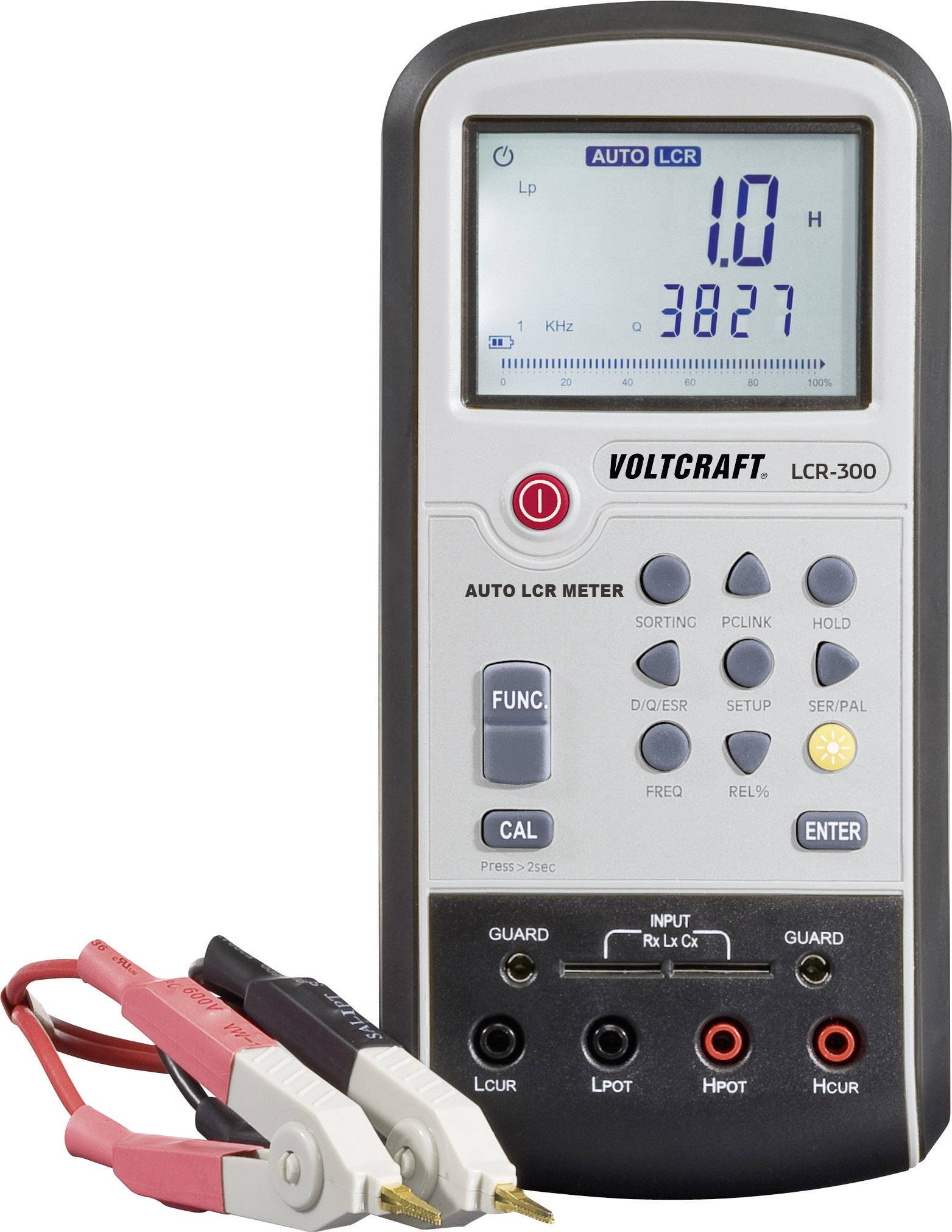

VOLTCRAFT LCR-300 RLC circuit Digital CAT I Display (counts): 20000

Conrad Electronic

€ 168.06^*

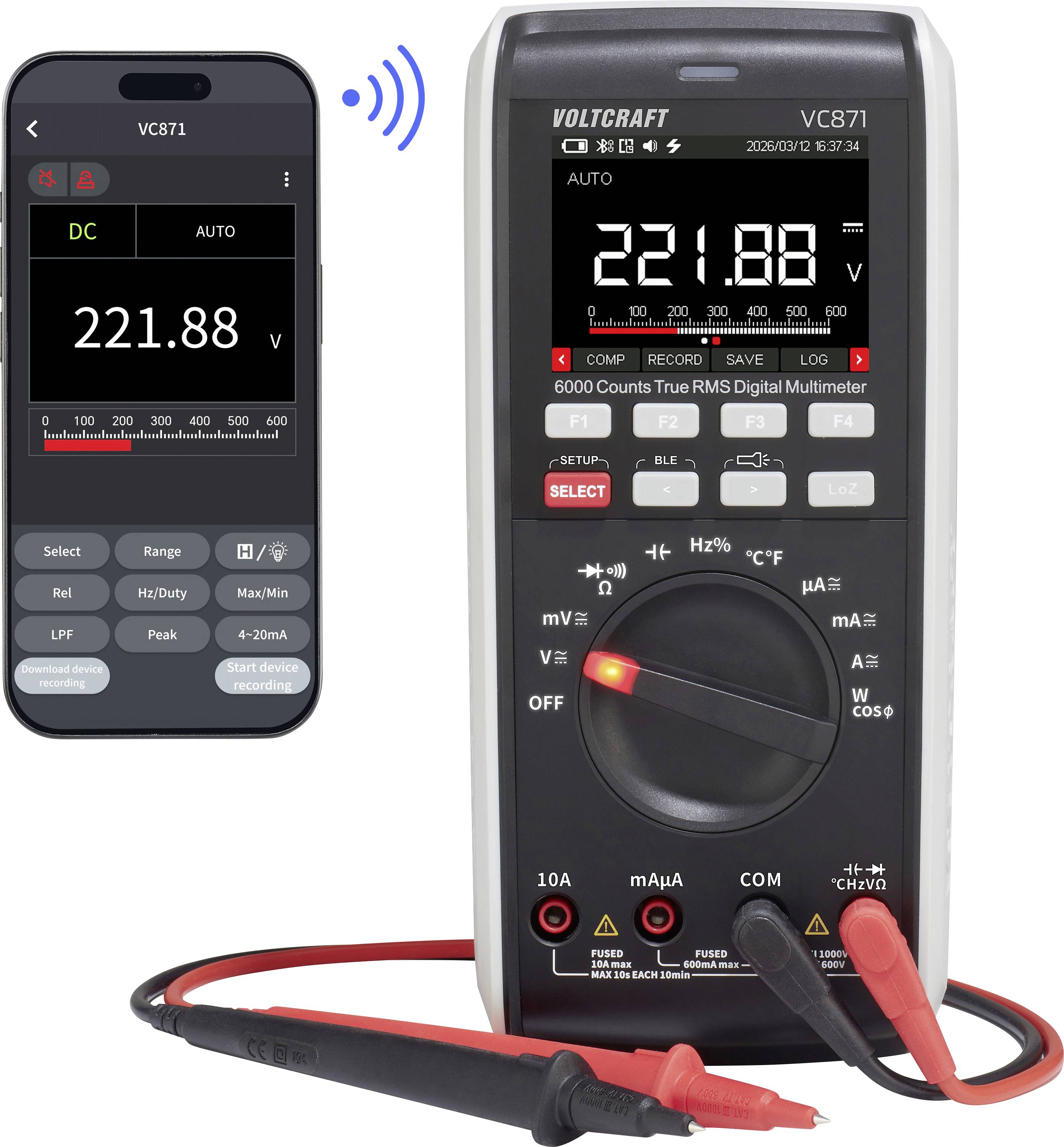

VOLTCRAFT Handheld multimeter Digital Data logger, LoZ CAT III 1000 V, CAT IV 600 V Display (counts): 60000

Conrad Electronic

€ 222.69^*

VOLTCRAFT VC871 Handheld multimeter Calibrated to (ISO standards) Digital Data logger, LoZ CAT III 1000 V, CAT IV 600 V

Conrad Electronic

€ 273.11^*

Megger DCM305E Clamp meter Digital CAT III 300 V

Conrad Electronic

€ 394.12^*

VOLTCRAFT LCR-500 RLC circuit Digital Data logger CAT I Display (counts): 40000

Conrad Electronic

€ 301.68^*

VOLTCRAFT VC831 Handheld multimeter Calibrated to (ISO standards) Digital LoZ CAT III 1000 V, CAT IV 600 V Display (coun

Conrad Electronic

€ 176.46^*

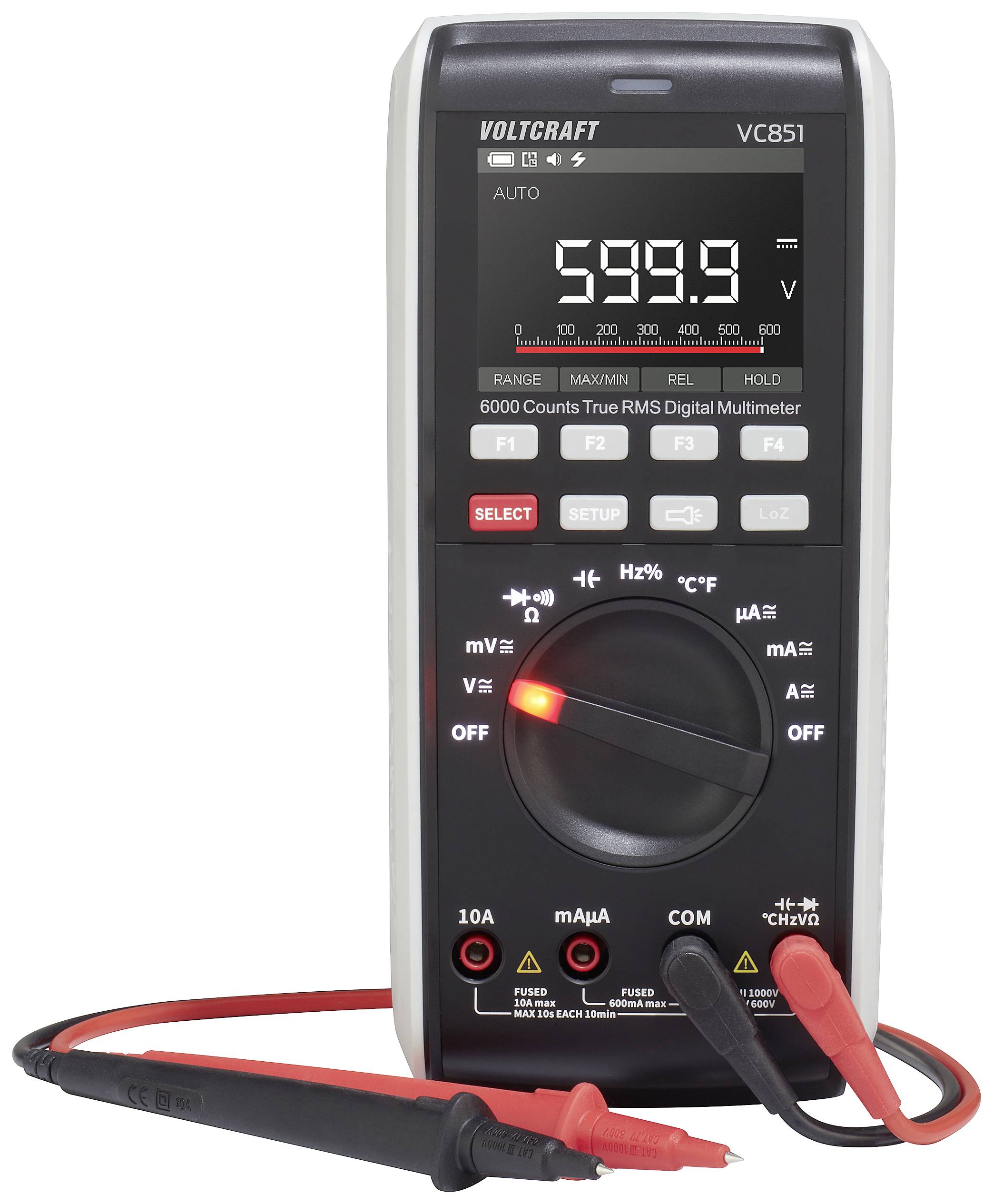

VOLTCRAFT VC851 Handheld multimeter Digital LoZ CAT III 1000 V, CAT IV 600 V Display (counts): 6000

Conrad Electronic

€ 159.66^*

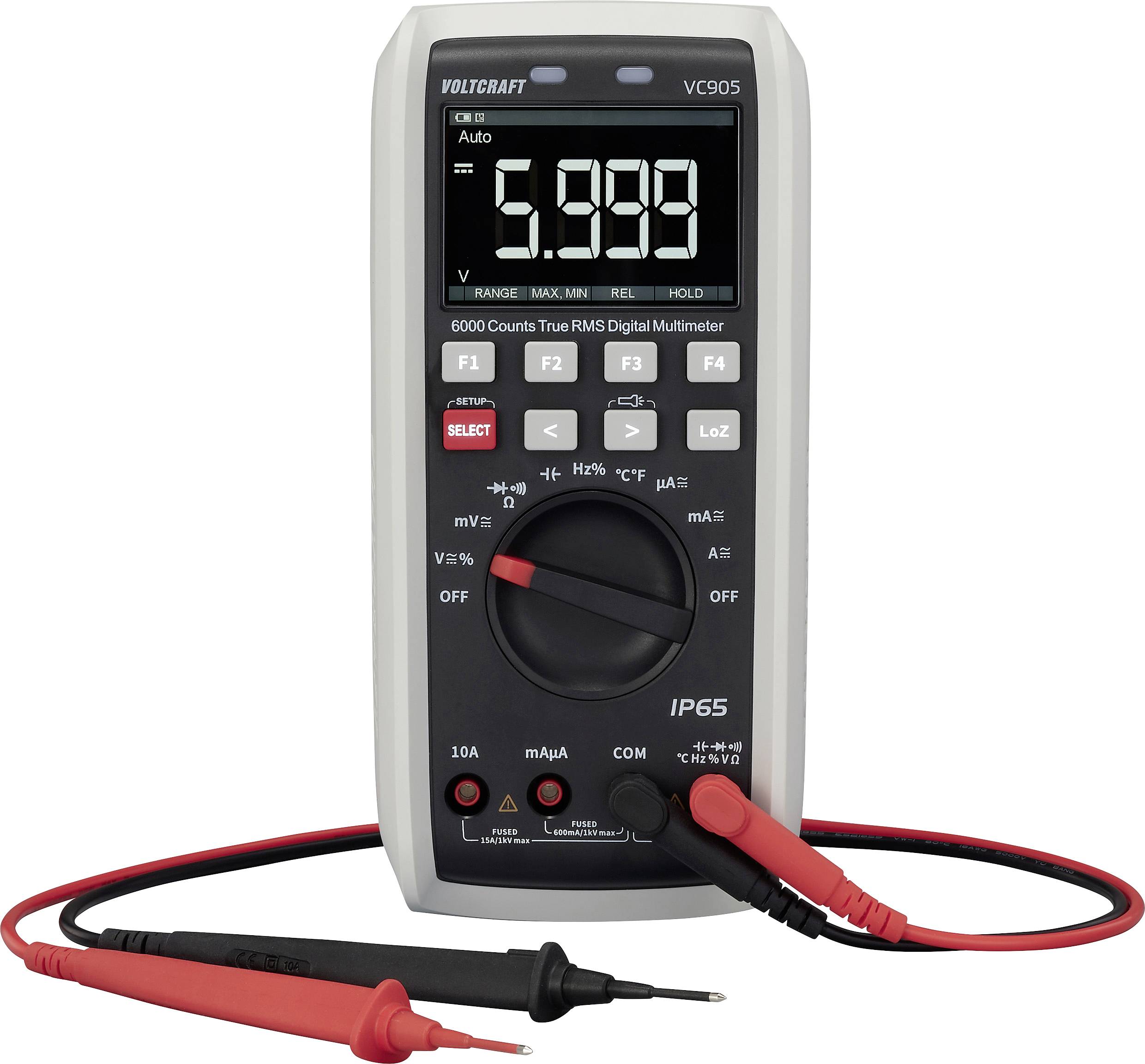

VOLTCRAFT VC905 Handheld multimeter Digital LoZ CAT III 1000 V, CAT IV 1000 V Display (counts): 6000

Conrad Electronic

€ 176.46^*

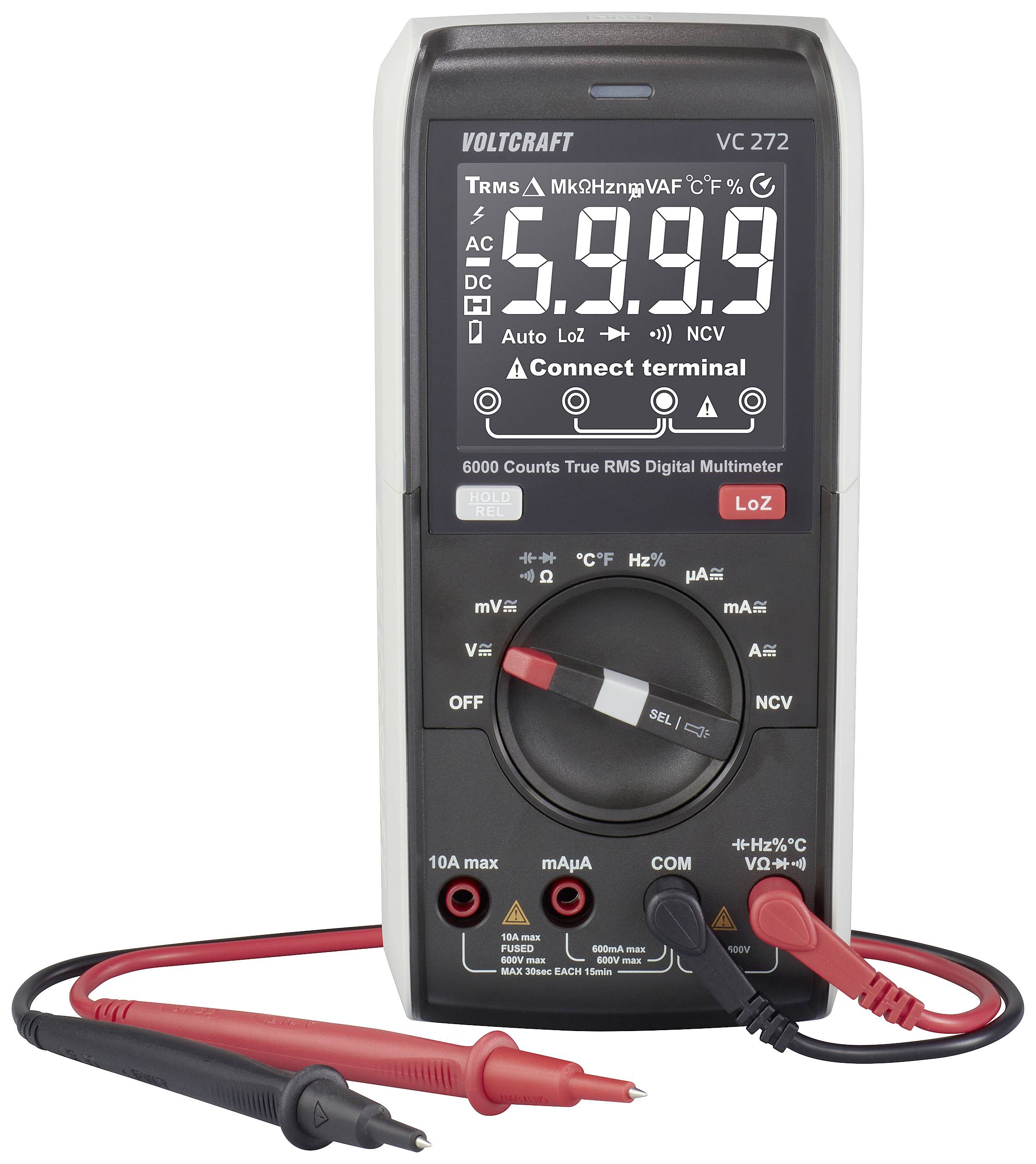

VOLTCRAFT VC272 Handheld multimeter Digital True RMS LoZ CAT III 600 V Display (counts): 6000

Conrad Electronic

€ 62.18^*

VOLTCRAFT VC-460 E Handheld multimeter Calibrated to (ISO standards) Digital Water-jet proof (IP65) CAT III 1000 V, CAT

Conrad Electronic

€ 226.05^*

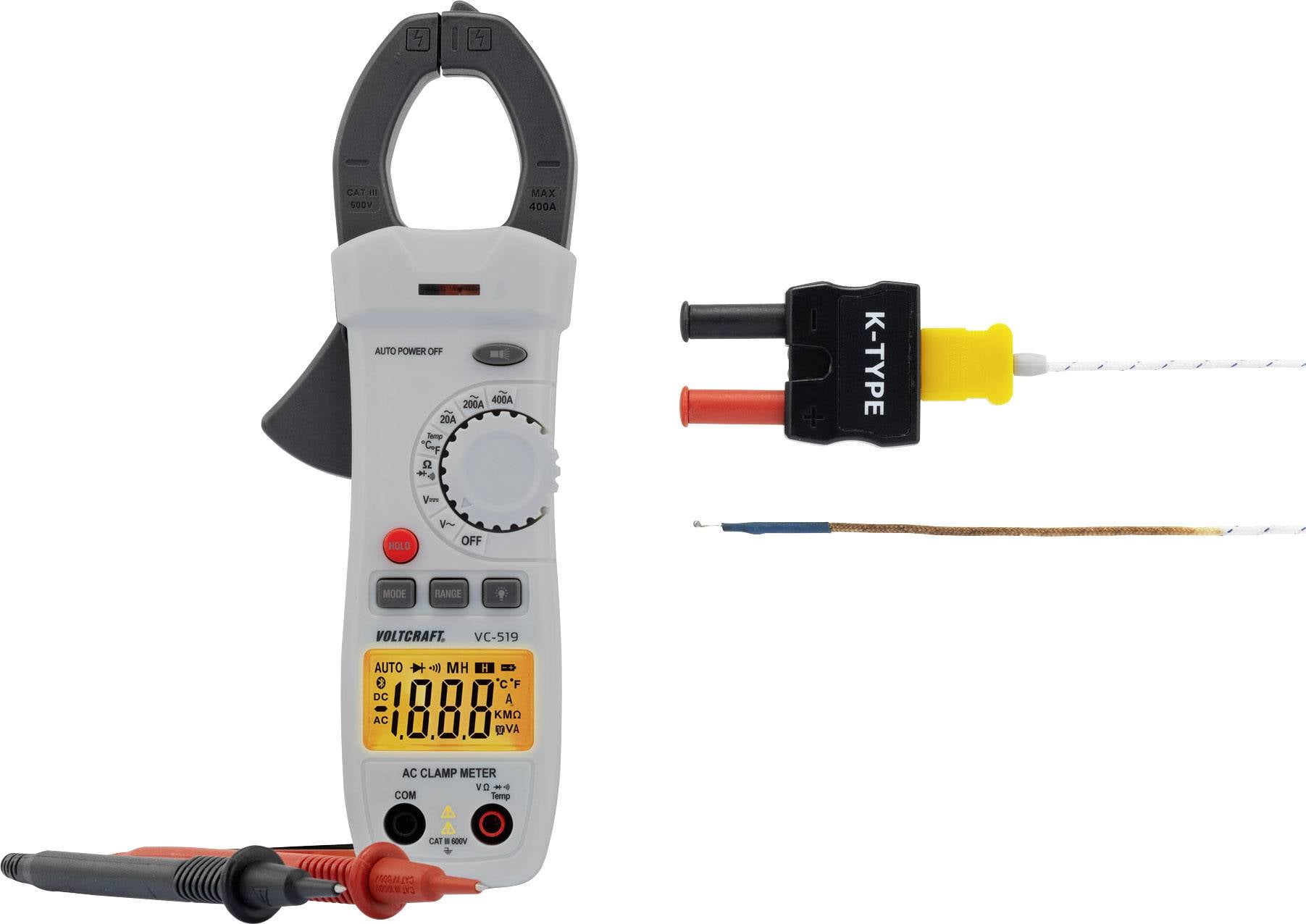

VOLTCRAFT VC-519 Clamp meter Digital CAT III 600 V Display (counts): 2000

Conrad Electronic

€ 31.08^*

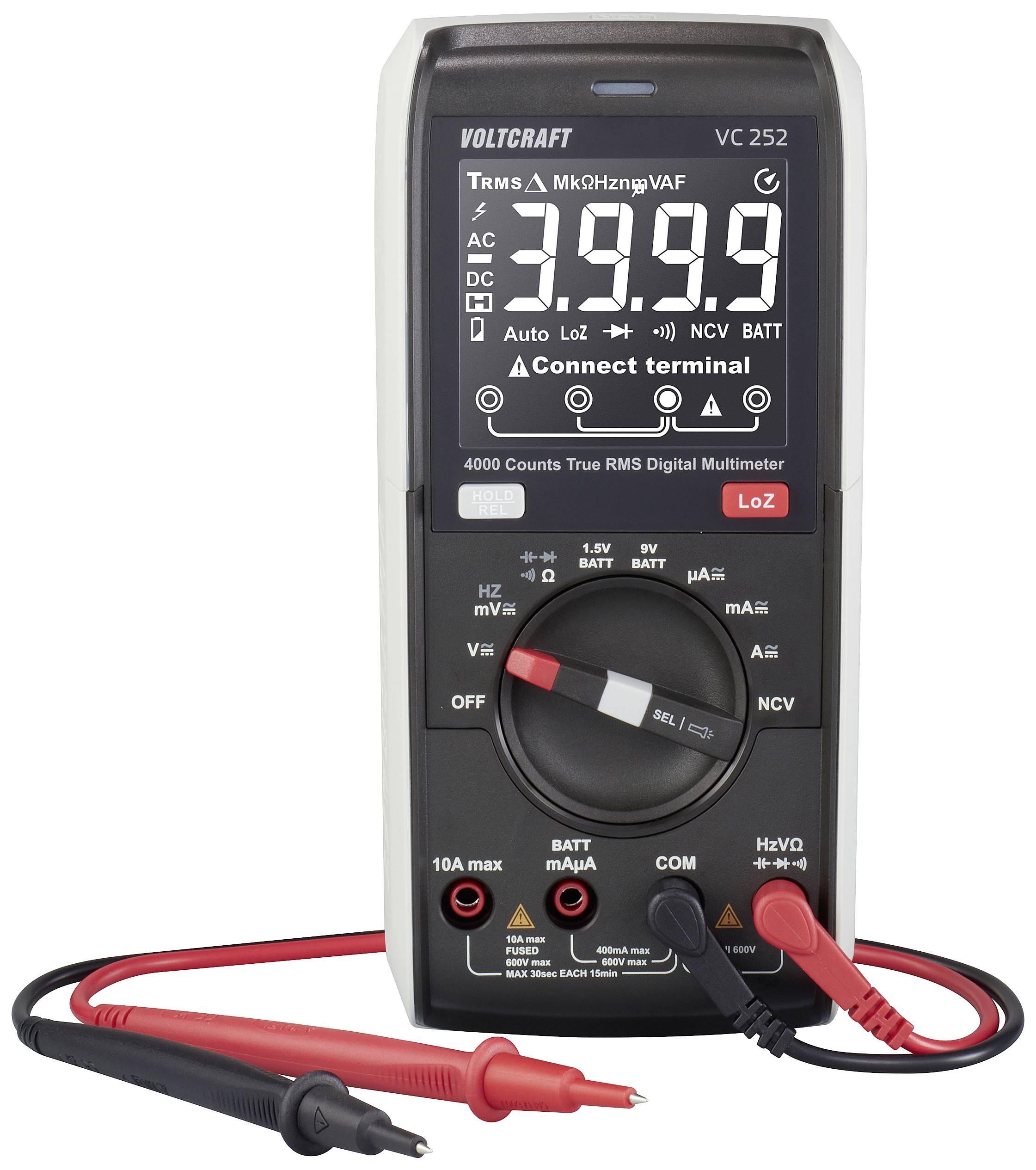

VOLTCRAFT VC252 Handheld multimeter Calibrated to (ISO standards) Digital True RMS LoZ CAT III 600 V Display (counts): 4
