VOLTCRAFT VC-86 Handheld multimeter Digital CAT III 250 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 52.09
-48 %
€
Highlights & Details
Pen multimeter VC-86
- CAT III 250 V

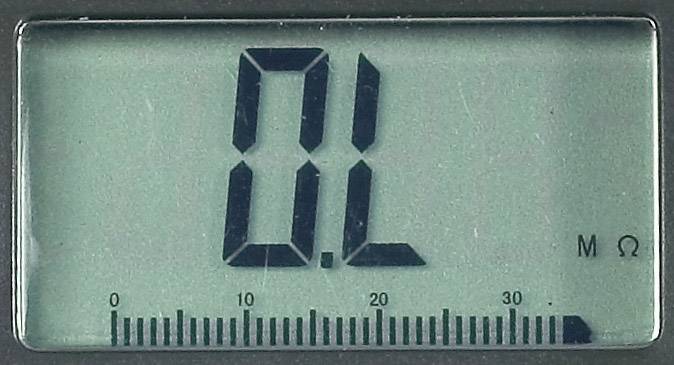

- Display 4000 counts with bar graph
- Impedance switchover 10 MΩ/400 kΩ
Technical specifications
- Voltage reading range DC (min.)
0.1 mV
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
250 V
- V AC reading range (min.)
0.001 V
- V AC reading range (max.)
250 V
- Amperage reading range DC (min.)
0.01 mA
- A DC reading range (max.)
400 mA
- A AC reading range (min.)
0.01 mA
- Amperage reading range AC (max.)
400 mA
- Reading range - resistance
0.1 Ω - 40 MΩ
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
Average
- Frequency range
40 Hz - 400 Hz Hz
- Interfaces
none
- Power supply (details)
3 V (2 x LR44)
- Height
230 mm
- Width
35 mm
- Weight
140 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 250 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
VC-86
- Display
Digital
- Display (counts)
4000
- Dim
(W x H) 35 mm x 230 mm
- Basic accuracy
0.8 %
- Displays
4000 counts
Documents & Downloads
Datasheet
Datasheet 121512 VOLTCRAFT VC-86 Handheld multimeter Digital CAT III 250 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 121512 VOLTCRAFT VC-86 Handheld multimeter Digital CAT III 250 V Display (counts): 4000
Conformity certificate
Conformity certificate 121512 VOLTCRAFT VC-86 Handheld multimeter Digital CAT III 250 V Display (counts): 4000
Warranty Terms
Warranty Terms 121512 VOLTCRAFT VC-86 Handheld multimeter Digital CAT III 250 V Display (counts): 4000
Description
Robuste multimeter with all the important measurement functions for a simple one-hand use. The range switch in the centre can be easily operated with the thumb.
Features
- Auto range
- Auto power-off
- Data hold
- Max hold
- Low battery display
- Diode-test
- Acoustic continuity tester
- Current measurement
- Bar graph
- Impact resistant
- Easy to change battery and fuse.

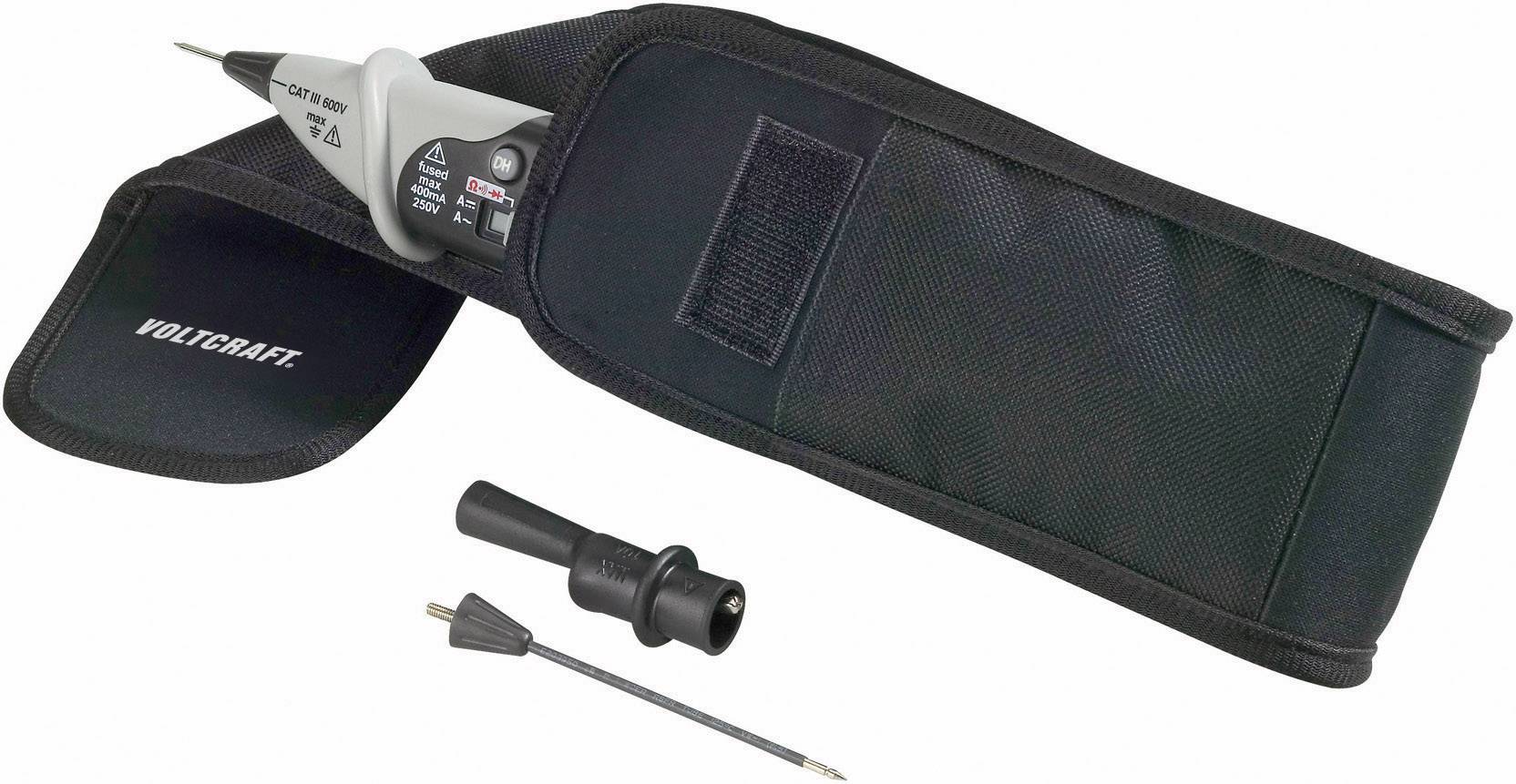

Scope of delivery
- 4 batteries (LR44 type) - Storage bag

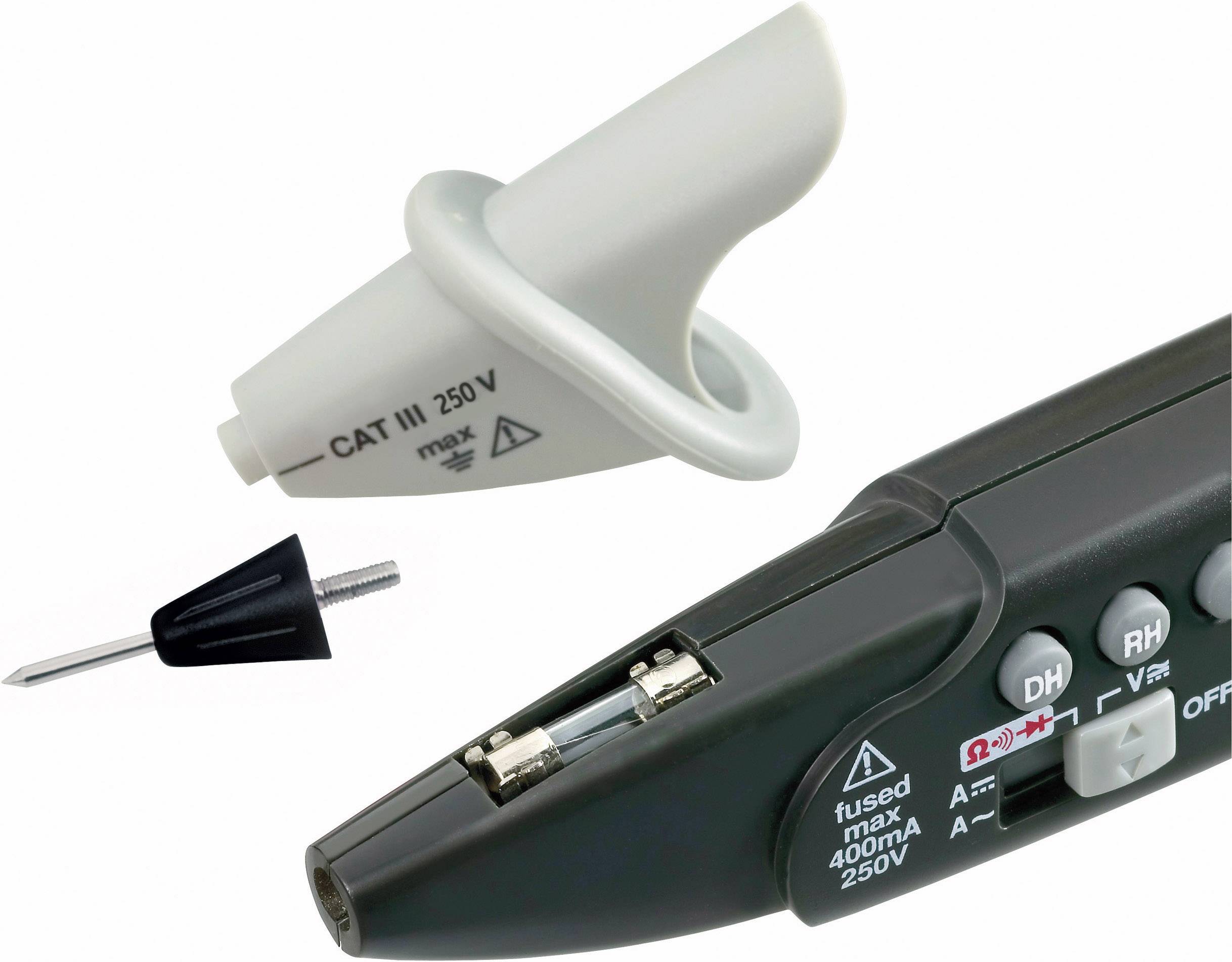

- Replacement 70 mm tip
- Replacement fuse
- Alligator clip for negative pole
- Operating instructions
