Megger DCM305E Clamp meter Digital CAT III 300 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 394.12 / piece)
€
Only 2 Piece(s) available
Technical specifications
- Product type
Clamp meter
- A AC reading range (min.)
6 mA
- Amperage reading range AC (max.)
100 A
- Frequency reading range
50-400 Hz
- Basic accuracy
1.0 %
- Measurement type (details)
True RMS
- Height
203 mm
- Width
78 mm
- Length
42 mm
- Weight
300 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 300 V
- Voltage metering
AC
- Type
DCM305E
- Display
Digital
- Dim
(L x W x H) 42 x 78 x 203 mm
- Opening range of current clamps
43 mm
Documents & Downloads
Datasheet
Datasheet 2305664 Megger DCM305E Clamp meter Digital CAT III 300 V
User & Safety Instructions
User & Safety Instructions 2305664 Megger DCM305E Clamp meter Digital CAT III 300 V
Description
DCM305E serves as leakage current clamp for the efficient measurement of earth lead currents. You can also perform TRMS (AC) current measurements up to 100 A. The device offers six measuring ranges: 6 mA, 60 mA, 600 mA, 6 A, 60 A, 100 A with a minimum resolution of 0.001 mA in the 6 mA range. You can select an automatic or manual measurement range.
A low pass filter (50/60 Hz) improves your measurements in circuits with harmonics, also called electrical noise, which often lead to incorrect measurements. In addition, you can use a convenient comparison function with three preset limit values for the leakage current (0.25, 0.50, 3.5 mA). When this feature is enabled, a visual indicator and audible warning will appear when the preset limit is exceeded.
For hard-to-read measurements where accessibility is a problem, you can use the Auto-hold and Data-hold functions. An automatic background lighting helps you with the better visibility of the display. This includes 6,000 digits. In addition, DCM305E supports you with an option to keep the peak value.
This text is machine translated.
A low pass filter (50/60 Hz) improves your measurements in circuits with harmonics, also called electrical noise, which often lead to incorrect measurements. In addition, you can use a convenient comparison function with three preset limit values for the leakage current (0.25, 0.50, 3.5 mA). When this feature is enabled, a visual indicator and audible warning will appear when the preset limit is exceeded.
For hard-to-read measurements where accessibility is a problem, you can use the Auto-hold and Data-hold functions. An automatic background lighting helps you with the better visibility of the display. This includes 6,000 digits. In addition, DCM305E supports you with an option to keep the peak value.
This text is machine translated.
Features
- Automatic switch-off after 20 minutes of non-use
- 0.001 mA resolution
- up to 100 A AC
- TRMS value
- Low-pass filter for more stable measurement results
- Auto-hold, data-hold & peak value
- 40 mm clamp jaw.
Scope of delivery
- Carrying case.
Frequently Bought Together
(*All information is plus legal VAT) This article
Megger DCM305E Clamp meter Digital CAT III 300 V
Conrad Electronic
€ 394.12*

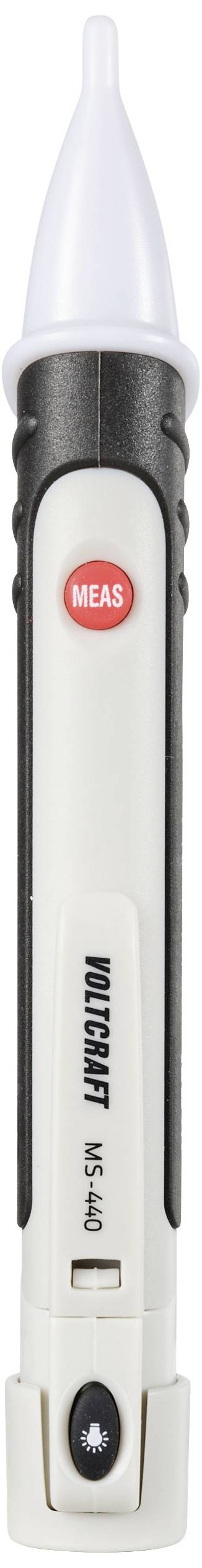

VOLTCRAFT MS-440 Magnetic field tester
Conrad Electronic
€ 11.76*

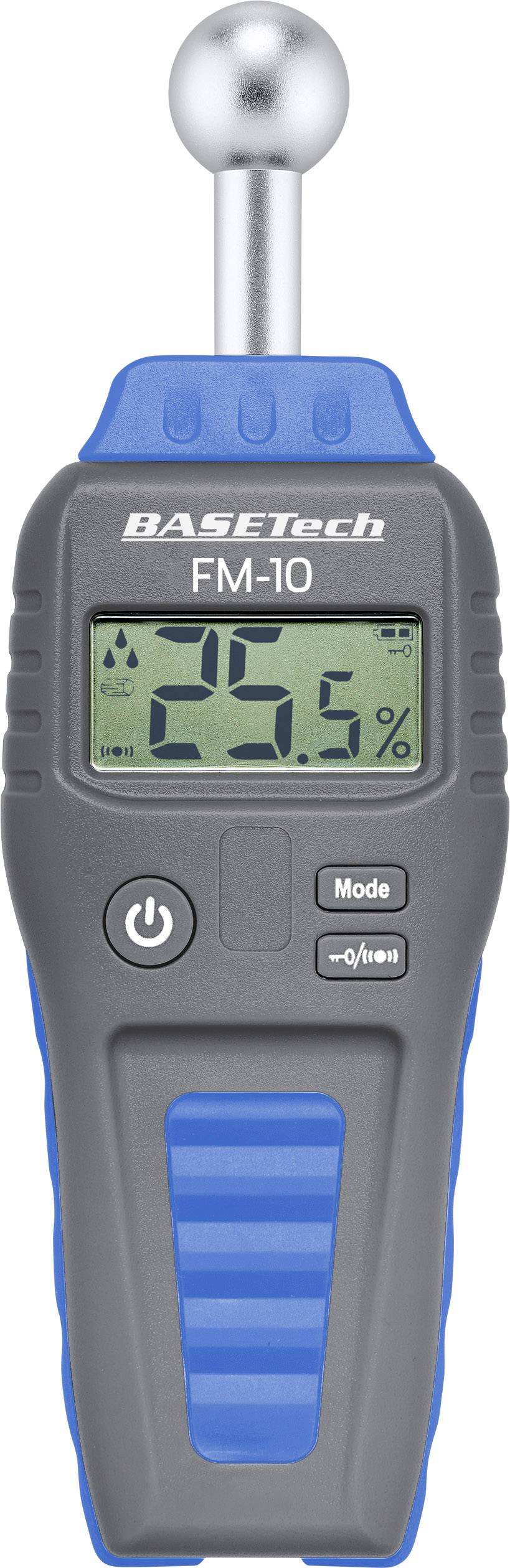

Basetech FM-10 Moisture meter Building moisture reading range 0.1 up to 99.9 vol% Wood moisture reading range 0.1 up to
