Testboy TB Pocket 100 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Voltage reading range DC (min.)
0 V
- Product type
Handheld multimeter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0 V
- V AC reading range (max.)
600 V
- Reading range - resistance
0 Ω - 60 MΩ
- Reading range - capacity
-0 - +60 mF
- Frequency reading range
0 Hz - 10 MHz
- Measurement type (details)
True RMS
- Power supply (details)
2x 1.5 V AAA battery
- Height
133 mm
- Width
62 mm
- Length
27 mm
- Weight
115 g
Manufacturer's standards (no certificate)
- Reading category
CAT III 600 V
- Voltage metering
AC/DC
- Type
TB Pocket 100
- Display
Digital
- Display (counts)
4000
- Dim
(L x W x H) 27 x 62 x 133 mm
Variants(All information is without VAT, plus shipping costs)
Display (counts)
Type
Voltage DC reading range (max.)
Calibrated to
Reading category
Measurement type (details)
V AC reading range (max.)
Testboy TB Pocket 100 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
This article
4000
TB Pocket 100
600 V
Manufacturer's standards (no certificate)
CAT III 600 V
True RMS
600 V
Minimum order quantity: 1
Multiple: 1
€ 50.41*
Testboy Pocket Handheld multimeter Calibrated to (ISO standards) Digital CAT III 300 V Display (counts): 2000
2000
Pocket
300 V
ISO standards
CAT III 300 V
Average
300 V
Minimum order quantity: 1
Multiple: 1

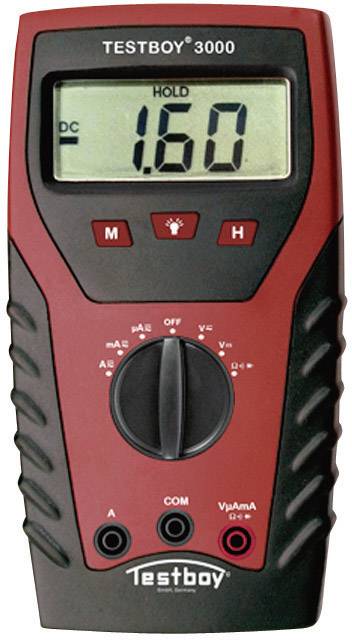

Testboy TB-3000 Handheld multimeter Calibrated to (ISO standards) Digital CAT IV 600 V Display (counts): 2000
2000
TB-3000
600 V
ISO standards
CAT IV 600 V
Average
600 V
Minimum order quantity: 1
Multiple: 1
Testboy TB-2200 Handheld multimeter Calibrated to (ISO standards) Digital CAT II 400 V, CAT III 300 V Display (counts): 2000
2000
TB-2200
400 V
ISO standards
CAT II 400 V
Average
400 V
Minimum order quantity: 1
Multiple: 1
Testboy Handheld multimeter Calibrated to (ISO standards) Digital CAT III 600 V Display (counts): 4000
4000
61402000-ISO
600 V
ISO standards
CAT III 600 V
True RMS
600 V
Minimum order quantity: 1
Multiple: 1
Testboy Handheld multimeter Calibrated to (DAkkS standards) Digital CAT III 600 V Display (counts): 4000
4000
61402000-DakkS
600 V
DAkkS standards
CAT III 600 V
True RMS
600 V
Minimum order quantity: 1
Multiple: 1
Documents & Downloads
Datasheet
Datasheet 2885782 Testboy TB Pocket 100 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
User & Safety Instructions
User & Safety Instructions 2885782 Testboy TB Pocket 100 Handheld multimeter Digital CAT III 600 V Display (counts): 4000
Description
The Testboy Pocket 100 multimeter is a further development of the popular Testboy Pocket. Its compact design, numerous functions and easy operation make it a valuable tool for all standard measuring tasks, whether in technical or industrial settings or for hobby electricians.
This text is machine translated.
This text is machine translated.
Features
- AC and DC voltage up to 600 V.
- Resistance up to 60 ohms
- Capacitance measurement up to 60 mF
- Frequency measurement up to 10 MHz
- Continuity test with signal tone at less than 50 Ohm
- Diode test
- T-RMS
- Data-hold function Data-hold function
- Impact-resistant and unbreakable ABS housing
- Easy to read LCD with background lighting
- IEC/EN 61010 (DIN VDE 0411); EN 61010-2-030:2010; EN 61010-2-031; EN 61010-2-033
Scope of delivery
- Batteries
- Test lead set
