Chauvin Arnoux P01157180 L411 Amperage data logger Unit of measurement Amperage 0.5 up to 3000 A/AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 725.00 / piece)
€ 725.00
incl. VAT
14-day return policy included
Highlights & Details
L411 current data logger - 1 channel
- High performance 1-channel current data logger with permanently attached MiniFlex current transformers
- Quick and easy to set up – ready to use in a few minutes
- Suitable for long-term recordings for fault finding, analysis and monitoring of currents from 0.5 to 3000 A AC
- With real-time access and remote reading options via free software
- Robust, compact and safe for typical electrical applications
Technical specifications
- Data aggregation: 1 to 60 min.
- Autonomy with batteries: 3 days recording without WiFi
- Product type
Amperage data logger
- Unit of measurement
Amperage
- Sampling interval
1 s
Manufacturer's standards (no certificate)
- Battery life
72 h
- Dim
(L x W x H) 34 x 147 x 72 mm
- Channels
1
- Resolution
10 mA
- Amperage reading range (max.)
3000 A/AC
- Amperage reading range (min.)
0.5 A/AC
- Sample rate (max.)
1 s
- Sample rate (min.)
1 s
- Reading category
CAT III 1000 V
CAT IV 600 V
- Width
147 mm
- Height
72 mm
- Length
34 mm
- Interfaces
USB
Wi-Fi
Wi-Fi
IP54
- Power supply
USB
Battery
- Type
L411
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3455127 Chauvin Arnoux P01157180 L411 Amperage data logger Unit of measurement Amperage 0.5 up to 3000 A/AC
User & Safety Instructions
User & Safety Instructions 3455127 Chauvin Arnoux P01157180 L411 Amperage data logger Unit of measurement Amperage 0.5 up to 3000 A/AC
Warranty Terms
Warranty Terms 3455127 Chauvin Arnoux P01157180 L411 Amperage data logger Unit of measurement Amperage 0.5 up to 3000 A/AC
Description

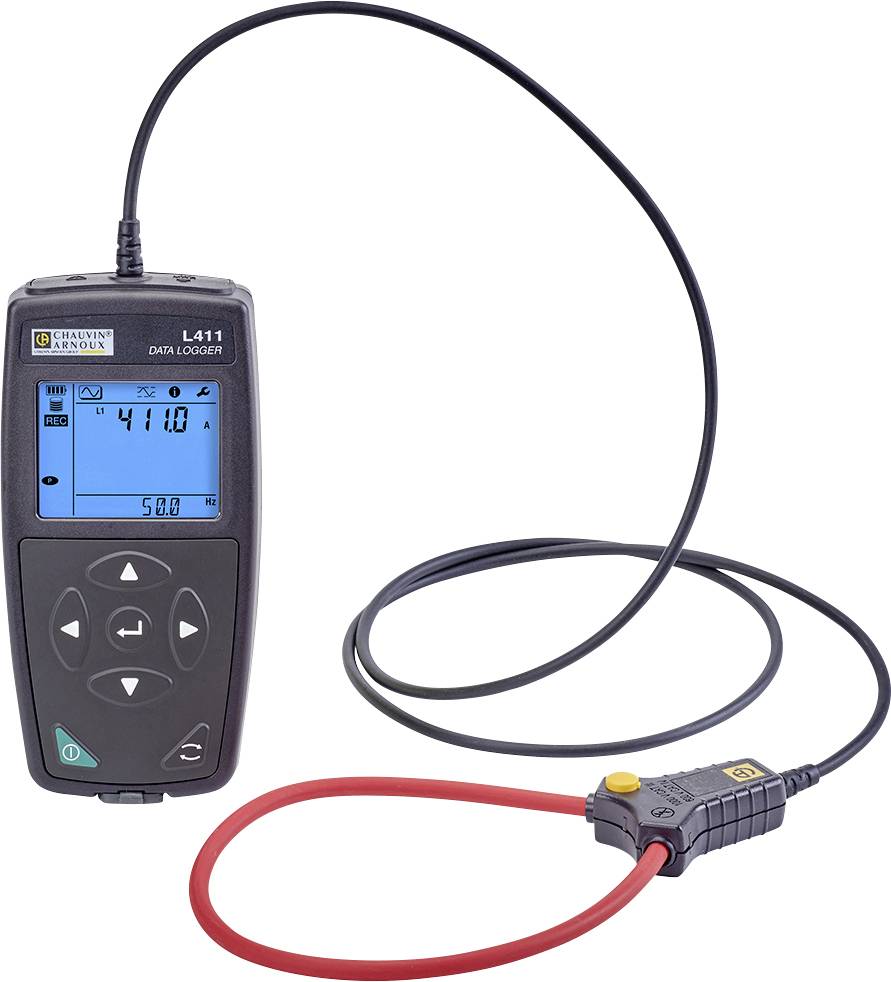

L411 data logger – compact solution for precise current analyzes
The Chauvin Arnoux data logger L411 is a powerful and at the same time economical measuring device for recording current trends. With its fixed-line MiniFlex current transformer and a measurement range from 0.5 to 3000 A AC, it is ideal for maintenance, fault-finding and monitoring of currents. Robust, mobile and easy to use – Ideal for industrial use as well as for electrical installation applications. By the records with time stamp, this logger is best suited for detecting fluctuations or anomalies in the measured signal. The different communication options allow the use of the data logger as a remote readable measuring instrument. The integrated web server allows you to connect to the device via any web browser with a smartphone. The analysis of the recorded events is simplified with the software Datalogger Transfer: Device configuration, real-time monitoring of the measurements and display of the recorded measurements in graphical or tabular form.
Your benefits at a glance
- Fast application thanks to integrated MiniFlex current transformer
- High measuring range up to 3000 A AC - reliable even with large loads
- Large memory capacity: 8 GB for long-term recordings
- Easy data access via USB, WiFi, integrated web server or secure IRD server DataView® Synch
- Clear reading thanks to illuminated LCD display
- Robust and safe: IP54, CAT IV 600 V / CAT III 1000 V.
Typical areas of application:
- Detection of irregular current signals
- Detection of the current required for proper operation of the system
- Redimensioning or control of current transformers
- Measurements on an outlet, line or circuit
Technical highlights
- 1 measuring channel, current range 0.5 - 3000 A AC
- Memory: 8 GB, acquisition interval up to 1 measurement/s.
- Aggregation: 1 to 60 minutes
- Communication: USB, WiFi, web server, IRD server
- Power supply via 3 x AA batteries or USB
- Battery life: Up to 3 days without Wi-Fi
- Dimensions: 147 x 34 x 72 mm, weight approx. 340 g.
- Operating temperature: -20 °C to +50 °C.
This text is machine translated.
The Chauvin Arnoux data logger L411 is a powerful and at the same time economical measuring device for recording current trends. With its fixed-line MiniFlex current transformer and a measurement range from 0.5 to 3000 A AC, it is ideal for maintenance, fault-finding and monitoring of currents. Robust, mobile and easy to use – Ideal for industrial use as well as for electrical installation applications. By the records with time stamp, this logger is best suited for detecting fluctuations or anomalies in the measured signal. The different communication options allow the use of the data logger as a remote readable measuring instrument. The integrated web server allows you to connect to the device via any web browser with a smartphone. The analysis of the recorded events is simplified with the software Datalogger Transfer: Device configuration, real-time monitoring of the measurements and display of the recorded measurements in graphical or tabular form.
Your benefits at a glance
- Fast application thanks to integrated MiniFlex current transformer
- High measuring range up to 3000 A AC - reliable even with large loads
- Large memory capacity: 8 GB for long-term recordings
- Easy data access via USB, WiFi, integrated web server or secure IRD server DataView® Synch
- Clear reading thanks to illuminated LCD display
- Robust and safe: IP54, CAT IV 600 V / CAT III 1000 V.
Typical areas of application:
- Detection of irregular current signals
- Detection of the current required for proper operation of the system
- Redimensioning or control of current transformers
- Measurements on an outlet, line or circuit
Technical highlights
- 1 measuring channel, current range 0.5 - 3000 A AC
- Memory: 8 GB, acquisition interval up to 1 measurement/s.
- Aggregation: 1 to 60 minutes
- Communication: USB, WiFi, web server, IRD server
- Power supply via 3 x AA batteries or USB
- Battery life: Up to 3 days without Wi-Fi
- Dimensions: 147 x 34 x 72 mm, weight approx. 340 g.
- Operating temperature: -20 °C to +50 °C.
This text is machine translated.

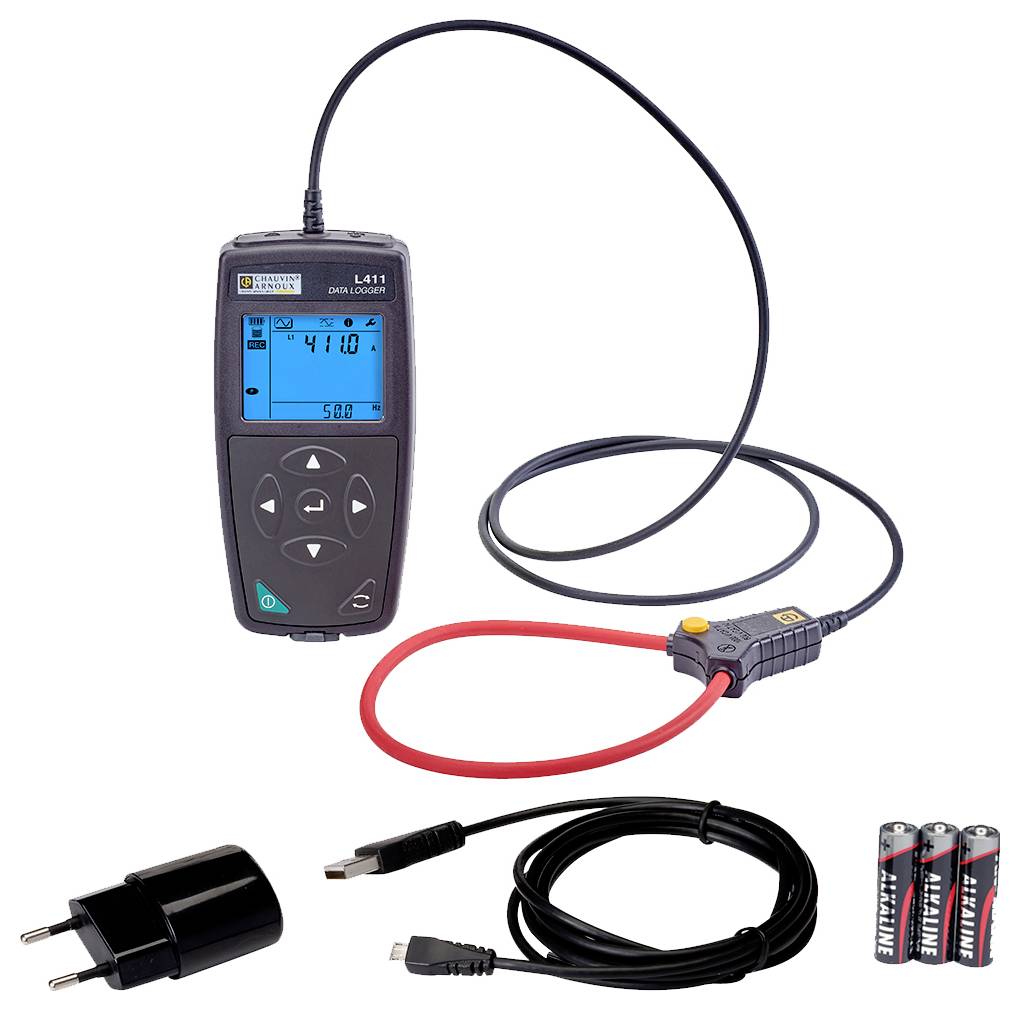

Scope of delivery
- 1 permanently attached MiniFlex
- 1 µUSB/USB connection cable
- 1 USB mains adapter
- 1 Software (for download)
- 3 batteries
- 1 Testing confirmation
- 1 quick instructions
- 1 multi-lingual user guide (for download)
