Chauvin Arnoux P01157181 L412 Amperage data logger Unit of measurement Amperage 10 up to 3000 A/AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 629.00 / piece)
€ 629.00
incl. VAT
14-day return policy included
Highlights & Details
Chauvin Arnoux P01157181 L412 Amperage data logger Unit of measurement Amperage 10 up to 3000 A/AC
- High performance 2 channel current data logger with wide choice of current transformers to cover various applications
- Quick and easy to set up – ready to use in a few minutes
- Suitable for long-term recordings for troubleshooting, analysis & monitoring of currents from 10 mA to 3000 A (depending on current transformer)
- With real-time access and remote reading options via free software
- Robust, compact and safe for typical electrical applications
Technical specifications
- Data aggregation: 1 to 60 min.
- Autonomy with batteries: 3 days recording without WiFi
- Product type
Amperage data logger
- Unit of measurement
Amperage
- Sampling interval
1 s
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 34 x 177 x 72 mm
- Channels
2
- Resolution
10 mA
- Amperage reading range (max.)
3000 A/AC
- Amperage reading range (min.)
10 mA
- Sample rate (max.)
1 s
- Sample rate (min.)
1 s
- Reading category
CAT III 1000 V
CAT IV 600 V
- Width
177 mm
- Height
72 mm
- Length
34 mm
- Interfaces
USB
Wi-Fi
Wi-Fi
IP54
- Power supply
USB
Battery
- Type
L412
- Battery life
72 h
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3455128 Chauvin Arnoux P01157181 L412 Amperage data logger Unit of measurement Amperage 10 up to 3000 A/AC
User & Safety Instructions
User & Safety Instructions 3455128 Chauvin Arnoux P01157181 L412 Amperage data logger Unit of measurement Amperage 10 up to 3000 A/AC
Warranty Terms
Warranty Terms 3455128 Chauvin Arnoux P01157181 L412 Amperage data logger Unit of measurement Amperage 10 up to 3000 A/AC
Description

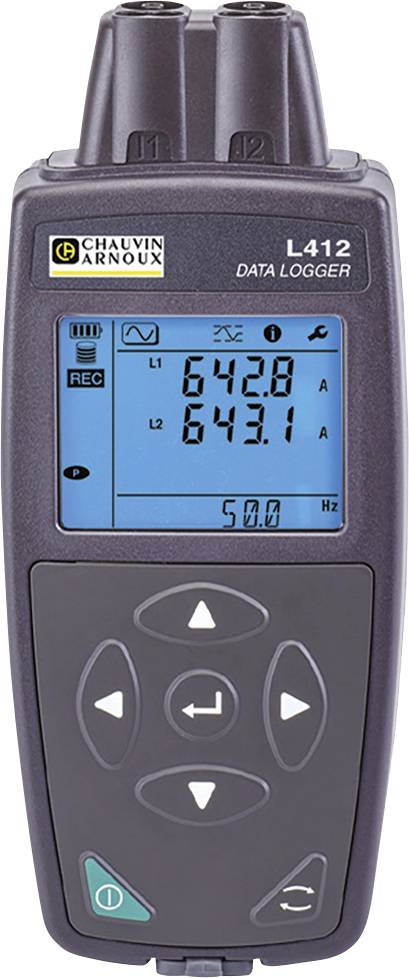

L412 data logger – compact solution for precise current analyzes
The Chauvin Arnoux data logger L412 is a powerful and versatile measuring device for recording current trends. With its two measurement channels and compatibility with a wide range of current transformers, it is ideal for maintenance, troubleshooting and monitoring of currents. Robust, mobile and easy to use – Ideal for industrial use as well as for electrical installation applications. By the records with time stamp, this logger is best suited for detecting fluctuations or anomalies in the measured signal. The different communication options allow the use of the data logger as a remote readable measuring instrument. The integrated web server allows you to connect to the device via any web browser with a smartphone. The analysis of the recorded events is simplified with the software Datalogger Transfer: Device configuration, real-time monitoring of the measurements and display of the recorded measurements in graphical or tabular form.
Your benefits at a glance
- Compatible with a wide range of current transformers
- Wide and high measuring range from 10 mA to 3000 A AC by various current transformers
- Large memory capacity: 8 GB for long-term recordings
- Easy data access via USB, WiFi, integrated web server or secure IRD server DataView® Synch
- Clear reading thanks to illuminated LCD display
- Robust and safe: IP54, CAT IV 600 V / CAT III 1000 V.
Typical areas of application:
- Detection of irregular current signals
- Detection of the current required for proper operation of the system
- Redimensioning or control of current transformers
- Measurements on outputs, lines or circuits
Technical highlights
- 2 measurement channels, current ranges from 10 mA to 3000 A AC depending on current transformer
- Memory: 8 GB, acquisition interval up to 1 measurement/s.
- Aggregation: 1 to 60 minutes
- Communication: USB, WiFi, web server, IRD server
- Power supply via 3 x AA batteries or USB
- Battery life: Up to 3 days without Wi-Fi
- Dimensions: 177 x 34 x 72 mm, weight approx. 300 g.
- Operating temperature: -20 °C to +50 °C.
This text is machine translated.
The Chauvin Arnoux data logger L412 is a powerful and versatile measuring device for recording current trends. With its two measurement channels and compatibility with a wide range of current transformers, it is ideal for maintenance, troubleshooting and monitoring of currents. Robust, mobile and easy to use – Ideal for industrial use as well as for electrical installation applications. By the records with time stamp, this logger is best suited for detecting fluctuations or anomalies in the measured signal. The different communication options allow the use of the data logger as a remote readable measuring instrument. The integrated web server allows you to connect to the device via any web browser with a smartphone. The analysis of the recorded events is simplified with the software Datalogger Transfer: Device configuration, real-time monitoring of the measurements and display of the recorded measurements in graphical or tabular form.
Your benefits at a glance
- Compatible with a wide range of current transformers
- Wide and high measuring range from 10 mA to 3000 A AC by various current transformers
- Large memory capacity: 8 GB for long-term recordings
- Easy data access via USB, WiFi, integrated web server or secure IRD server DataView® Synch
- Clear reading thanks to illuminated LCD display
- Robust and safe: IP54, CAT IV 600 V / CAT III 1000 V.
Typical areas of application:
- Detection of irregular current signals
- Detection of the current required for proper operation of the system
- Redimensioning or control of current transformers
- Measurements on outputs, lines or circuits
Technical highlights
- 2 measurement channels, current ranges from 10 mA to 3000 A AC depending on current transformer
- Memory: 8 GB, acquisition interval up to 1 measurement/s.
- Aggregation: 1 to 60 minutes
- Communication: USB, WiFi, web server, IRD server
- Power supply via 3 x AA batteries or USB
- Battery life: Up to 3 days without Wi-Fi
- Dimensions: 177 x 34 x 72 mm, weight approx. 300 g.
- Operating temperature: -20 °C to +50 °C.
This text is machine translated.

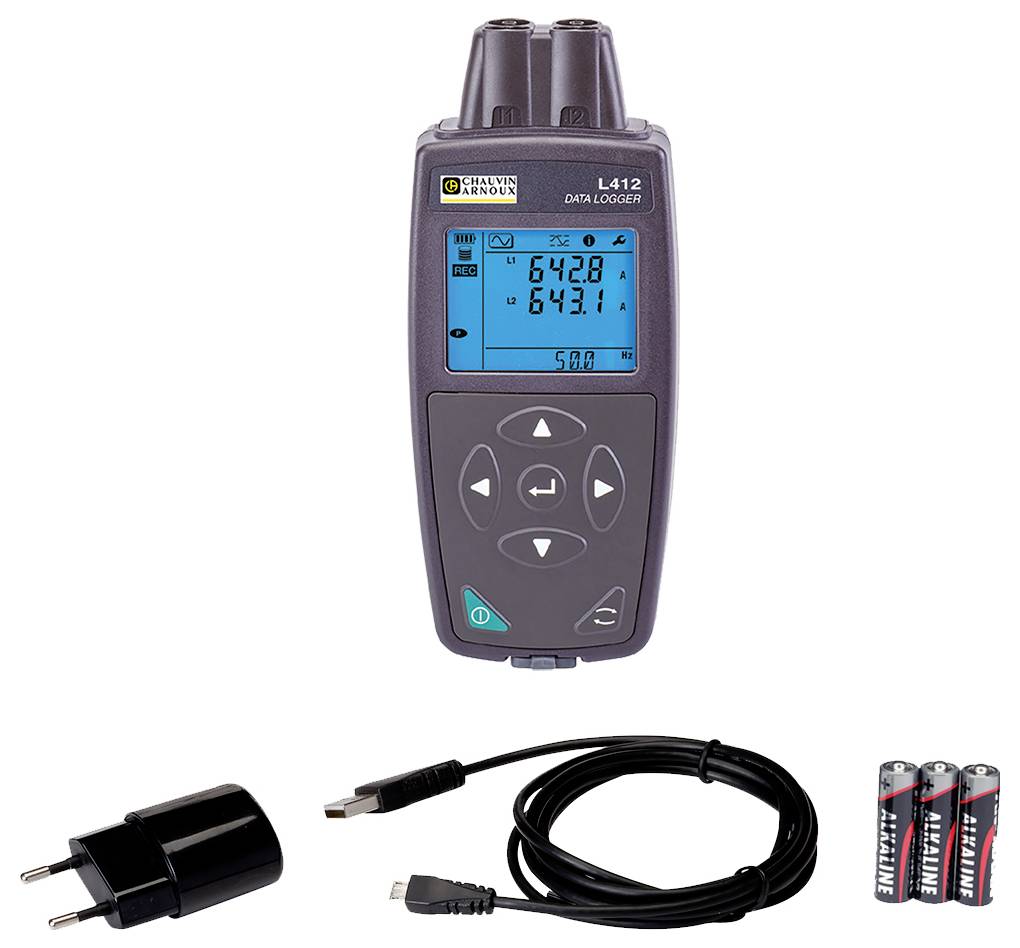

Scope of delivery
- 1 µUSB/USB connection cable
- 1 USB mains adapter
- 1 Software (for download)
- 3 batteries
- 1 Testing confirmation
- 1 quick instructions
- 1 multi-lingual user guide (for download)
