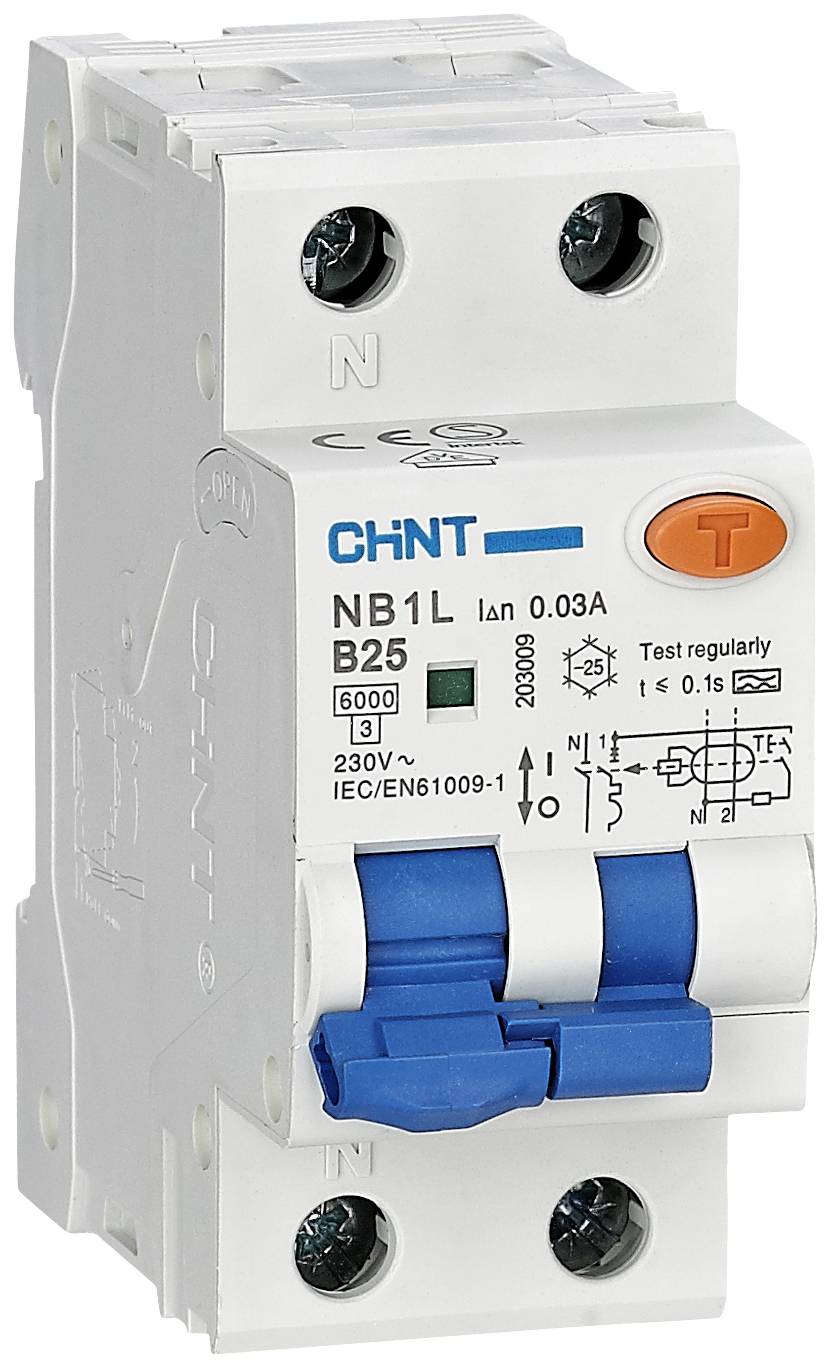

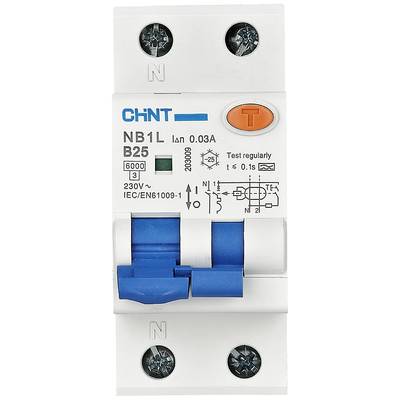

Chint 203009 RCBO 1-pin 25 A 0.03 A 240 V, 415 V
EAN:
Part number:
Item no:
Product type
RCBO
Number of pins
1
Release characteristics
B
Differential current rating
0.03 A
Nominal current - rounded value
25 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.08
€ 26.64
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 32.76
-15 %
€
Only 1 Piece(s) available
Highlights & Details
FI/LINE PROTECTION, TYPE A 1P+N B 25A 30MA 6KA
- Nominal voltage=240 V, 415 V
- Nominal current=25 A
- Switch-off capacity=6 kA
- Number of pins=1
Technical specifications
- Product type
RCBO
- Number of pins
1
- Release characteristics
B
- Differential current rating
0.03 A
- RoHS-compliant
- Factory colour
Blue
White
- Dim
(W x H x D) 36 x 86 x 77 mm
- Content
1 pc(s)
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Switch-off capacity
6 kA
- Insulation class
II
III
- Nominal voltage
240 V
415 V
- Width
36 mm
- Height
86 mm
- Depth
77 mm
- Type
A
Documents & Downloads
Datasheet
Datasheet 2525012 Chint 203009 RCBO 1-pin 25 A 0.03 A 240 V, 415 V
Warranty Terms
Warranty Terms 2525012 Chint 203009 RCBO 1-pin 25 A 0.03 A 240 V, 415 V
Description
For use in personal, fire, cable and line protection as well as in the event of overload and short circuit.
Selection
Rated operational fault current
I△n ≤ 30mA: Provides protection against direct contact when the contact voltage is too high.
I△n ≤ 300mA: Provides fire prevention in the event of residual currents.
Type classes
AC type: Triggering with slowly rising and sudden sinusoidal alternating currents.
Type A: Tripping in slow-rising and sudden sinusoidal AC currents as well as in pulsating DC fault currents.
Trigger characteristics
Characteristic B (3-5 ln) Protection of systems against overload and short-circuit as well as protection for people and large cable lengths in the TNS and IT network.
Characteristic C (5-10 ln) Protection of systems against overload and short circuit as well as protection of resistive and inductive loads with low inrush current.
This text is machine translated.
Selection
Rated operational fault current
I△n ≤ 30mA: Provides protection against direct contact when the contact voltage is too high.
I△n ≤ 300mA: Provides fire prevention in the event of residual currents.
Type classes
AC type: Triggering with slowly rising and sudden sinusoidal alternating currents.
Type A: Tripping in slow-rising and sudden sinusoidal AC currents as well as in pulsating DC fault currents.
Trigger characteristics
Characteristic B (3-5 ln) Protection of systems against overload and short-circuit as well as protection for people and large cable lengths in the TNS and IT network.
Characteristic C (5-10 ln) Protection of systems against overload and short circuit as well as protection of resistive and inductive loads with low inrush current.
This text is machine translated.
Scope of delivery
- FI/LINE PROTECTION, TYPE A 1P+N B 25A 30MA 6KA
