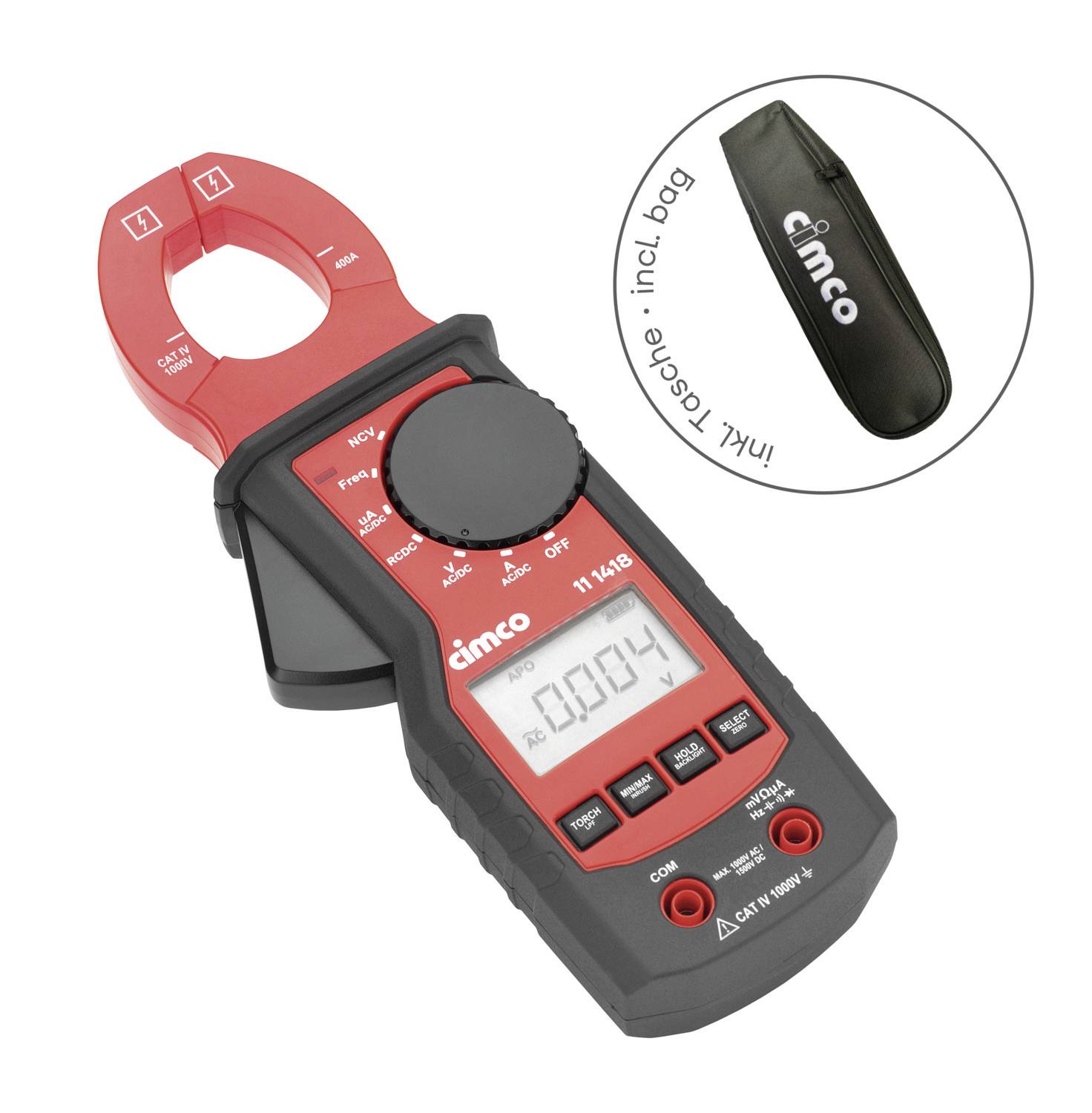

Name: Cimco 4100 Clamp meter Digital incl. bag CAT IV 1000 V
Brand: Cimco
SKU: 3203495

Highlights & Details

4100

400 A AC/DC
1000V AC/1500V DC
Backlight

Technical specifications

Product type: Clamp meter

Voltage DC reading range (max.): 1500 V

V AC reading range (max.): 1000 V

Amperage reading range DC (min.): 10 A

A DC reading range (max.): 400 A

A AC reading range (min.): 10 A

Amperage reading range AC (max.): 400 A

Reading range - resistance: Up to 40 MΩ

Reading range - capacity: 10 - 100 µF

Frequency reading range: Till 10 MHz

Measurement type (details): True RMS

Height: 90 mm

Width: 230 mm

Weight: 0.3000 kg

: Manufacturer's standards (no certificate)

Reading category: CAT IV 1000 V

Voltage metering: AC/DC

Current reading: AC/DC

Type: 4100

Display: Digital

Dim: (W x H) 230 mm x 90 mm

Features: incl. bag

Opening range of current clamps: 35 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3203495 Cimco 4100 Clamp meter Digital incl. bag CAT IV 1000 V

Description

AC/DC current clamp 4100 TRMS CAT IV/1000 V - CAT III/1500 V for highest safety. Current measurement AC / DC to 400A, Voltage measurement up to 1000 V AC and 1500 V DC, µA AC / DC measurement for HVAC. Measurement of resistance (..40 MOhm), capacity (10 nF..100 uF) and frequency (..10MHz). TRMS, contact-free voltage detection (NCV), LPF, diode test and continuity test. With automatic switch-off and self-test function. Torch, LCD display with illumination. Inclusive 2 test leads and 2 batteries Includes bag
