Circuit breakers 3-pin 1250 A 8 makers, 8 breakers 690 V AC Siemens 3KD52320RE100

Electric power switch with a plastic rotary handle, mounted on a metal plate with multiple connection tabs.
Circuit diagram symbol shows a switch in the closed position for contacts 1-2, 3-4, and 5-6, marked with '-Q'.

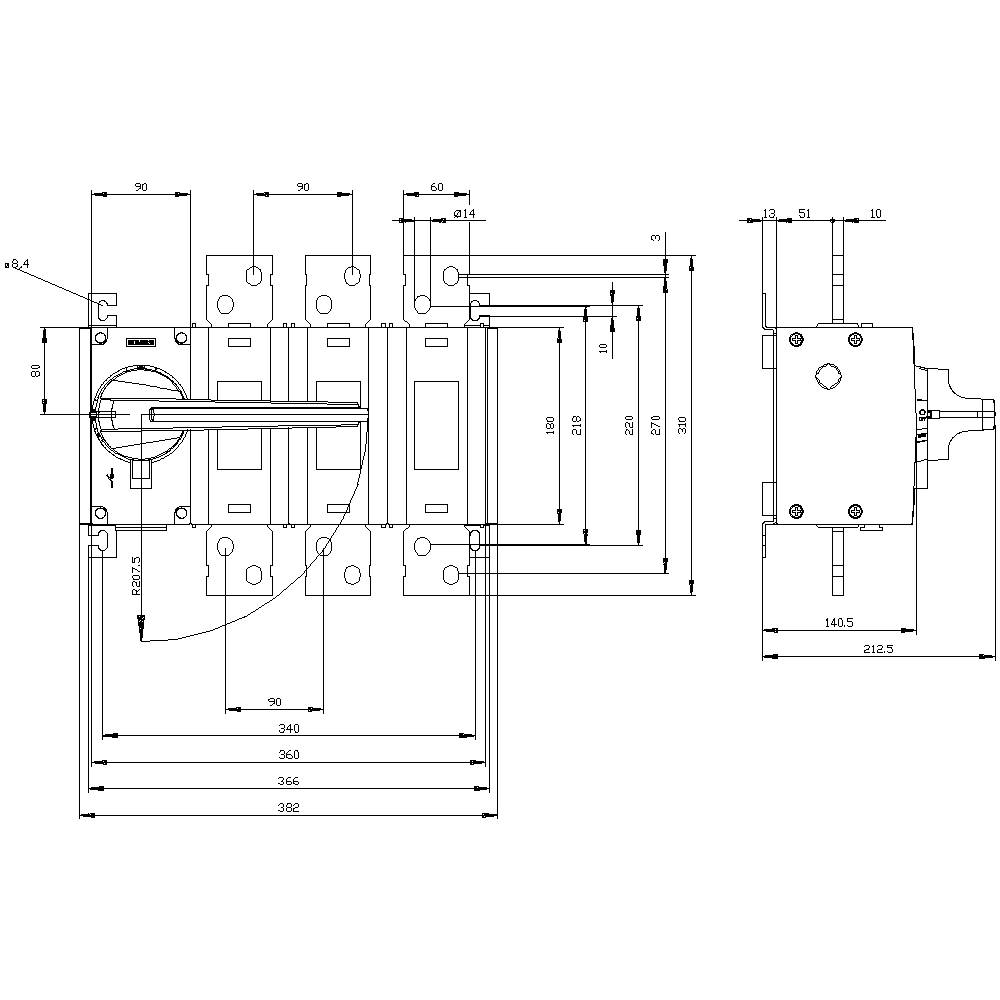

Technical drawing of a switching device with dimensions. Shows front and side perspective, detailed measurements in millimetres.
1/3
Image similar
Product type
Circuit breakers
Nominal voltage
690 V AC
Number of pins
3
Nominal current - rounded value
1250 A
Contact type
8 makers
8 breakers
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Fri 6 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 2,515.00 / piece)
€ 2,515.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Protection class: IP20
  • Isolation voltage: 1000 V
  • Ambient temperature: -25 °C to +70 °C
  • Surge voltage resistance: 12 kV
  • Mechanical life: 6000
  • Electrical life: 500
  • Color of the actuator: gray
  • Power loss: 96 W
  • Design of the electrical connection: flat connector
  • Size of the switch disconnector: 5
  • Mounting type: screw fastening
Product type

Circuit breakers

Contact type

8 makers

8 breakers

Operating voltage

690 V AC

Nominal voltage

690 V AC

Number of pins

3

Dim

(W x H x D) 360 x 310 x 212.5 mm

Nominal current

1250 A

Nominal current - rounded value

1250 A

Type

pressure switch

Width

360 mm

Height

310 mm

Depth

212.5 mm

8

8

1250 A

3

IP00

0

1

TRUE

FALSE

Flat plug-in connection

FALSE

Long turning handle

TRUE

TRUE

TRUE

710 kW

55 kA

Grey

TRUE

FALSE

FALSE

FALSE

FALSE

1000 V

FALSE

FALSE

Built-in device fixed built-in technique

1250 A

400 kW

FALSE

1250

Other

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 1702908 Circuit breakers 3-pin 1250 A 8 makers, 8 breakers 690 V AC Siemens 3KD52320RE100

User & Safety Instructions

User & Safety Instructions 1702908 Circuit breakers 3-pin 1250 A 8 makers, 8 breakers 690 V AC Siemens 3KD52320RE100

Description

switch disconnector 3VA1 IEC frame 160 3-pole SD100, In=100A without overload protection without short circuit prot. busbar connection
