Name: Circuit breakers Black 3-pin 185 mm² 250 A 690 V AC Siemens 3LD24300TK11
Brand: Siemens
SKU: 1744160
Availability: InStock

A Siemens toggle switch with two settings: 'ON' and 'OFF'. The switch is integrated into an electrical circuit.

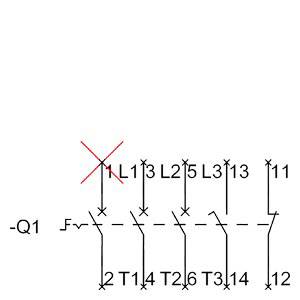

A circuit diagram with multiple electrical contacts. A connection at 'L1' is marked with a red X, potentially faulty.

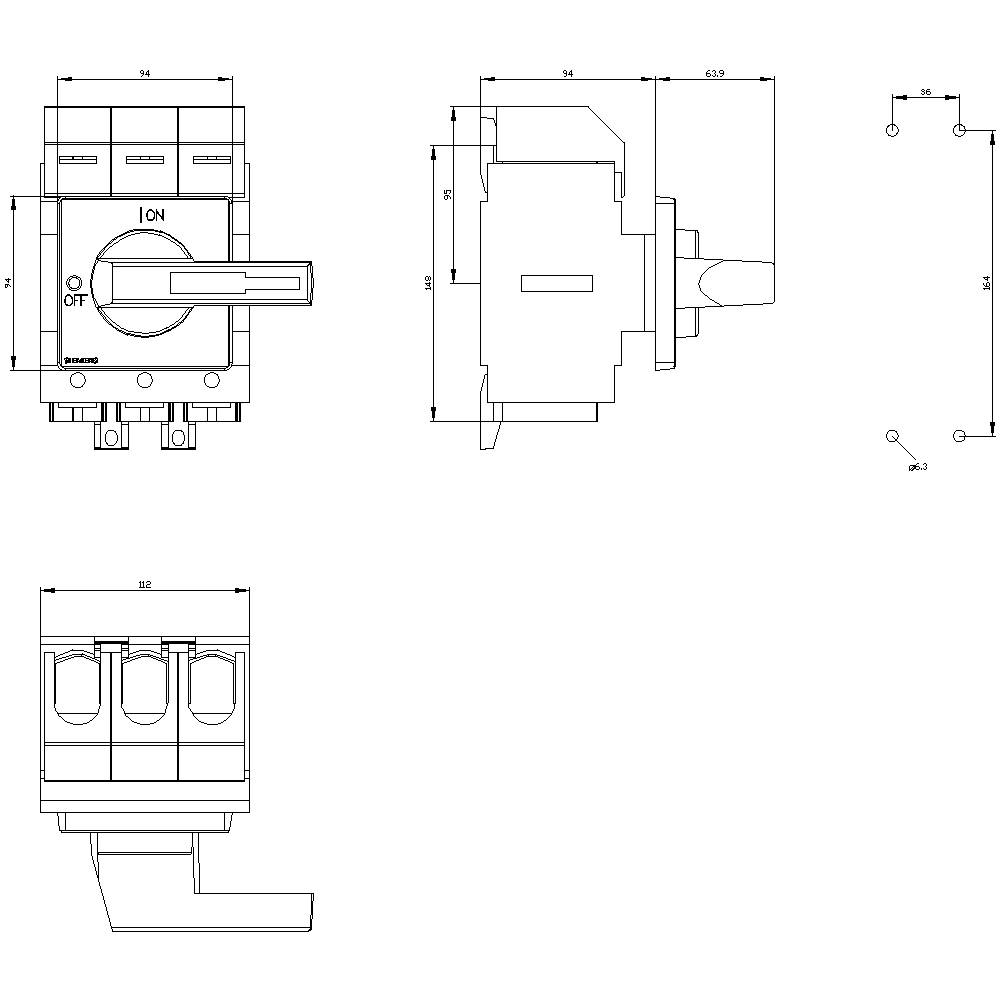

Circuit diagram of an electrical switch with three positions: 'On', 'Off' and 'I-0-II'. Technical drawing shows side and top view with dimensions.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

250 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 445.00 / piece)

€ 445.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP40
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 8 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 5
Power loss: 108 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 185 mm²

Number of pins: 3

Dim: (W x H x D) 112 x 169 x 94 mm

Nominal current: 250 A

Nominal current - rounded value: 250 A

Type: Step Switches

Width: 112 mm

Height: 169 mm

Depth: 94 mm

: 110 kW

: 0

: 0

: 250 A

: 3

: IP40

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: FALSE

: Toggle

: TRUE

: TRUE

: TRUE

: 132 kW

: 4 kA

: Black

: TRUE

: FALSE

: FALSE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 250 A

: FALSE

: 224

: Other

UKCA: yes
