Name: Circuit breakers Black 3-pin 50 mm² 100 A 690 V AC Siemens 3LD27300TK11
Brand: Siemens
SKU: 1744371
Availability: BackOrder

Siemens switch in white with a black rotary handle, suitable for mounting. Three connection terminals are visible at the top.

'Protective Circuit: L1 marked with a red cross, featuring multiple contact points and line connections.'

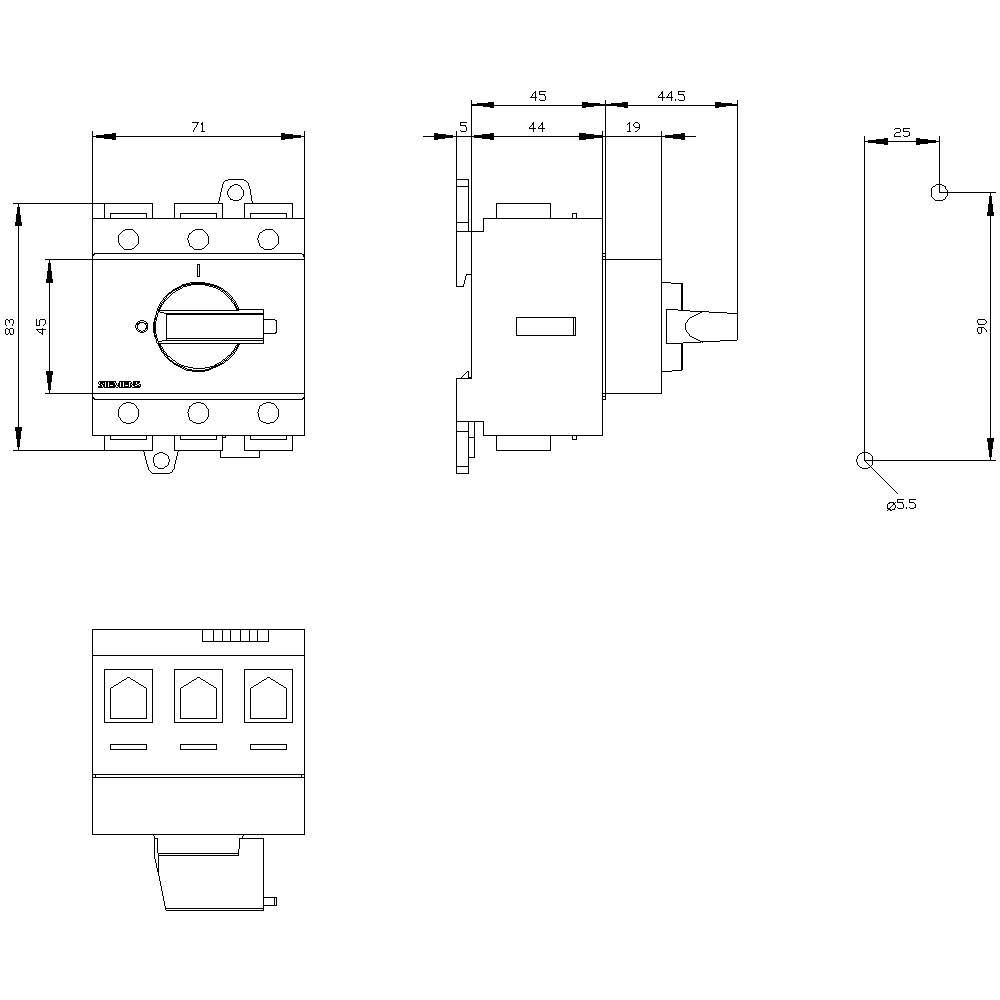

Technical drawing of a switch with dimensions: 71 mm width, 45 mm depth, 55 mm height, hole diameter 5.5 mm.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

100 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 99.99 / piece)

€ 99.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP40
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 4
Power loss: 22.5 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 50 mm²

Number of pins: 3

Dim: (W x H x D) 71 x 83 x 97 mm

Nominal current: 100 A

Nominal current - rounded value: 100 A

Type: Step Switches

Width: 71 mm

Height: 83 mm

Depth: 97 mm

: 30 kW

: 0

: 0

: 100 A

: 3

: IP40

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: FALSE

: Toggle

: TRUE

: TRUE

: TRUE

: 37 kW

: 2 kA

: Black

: TRUE

: FALSE

: FALSE

: TRUE

: TRUE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 100 A

: FALSE

: 70

: Other

UKCA: yes
