Name: Circuit breakers Insulant Black 3-pin 50 mm² 100 A 690 V AC Siemens 3LD27667UB01
Brand: Siemens
SKU: 1699130
Availability: BackOrder

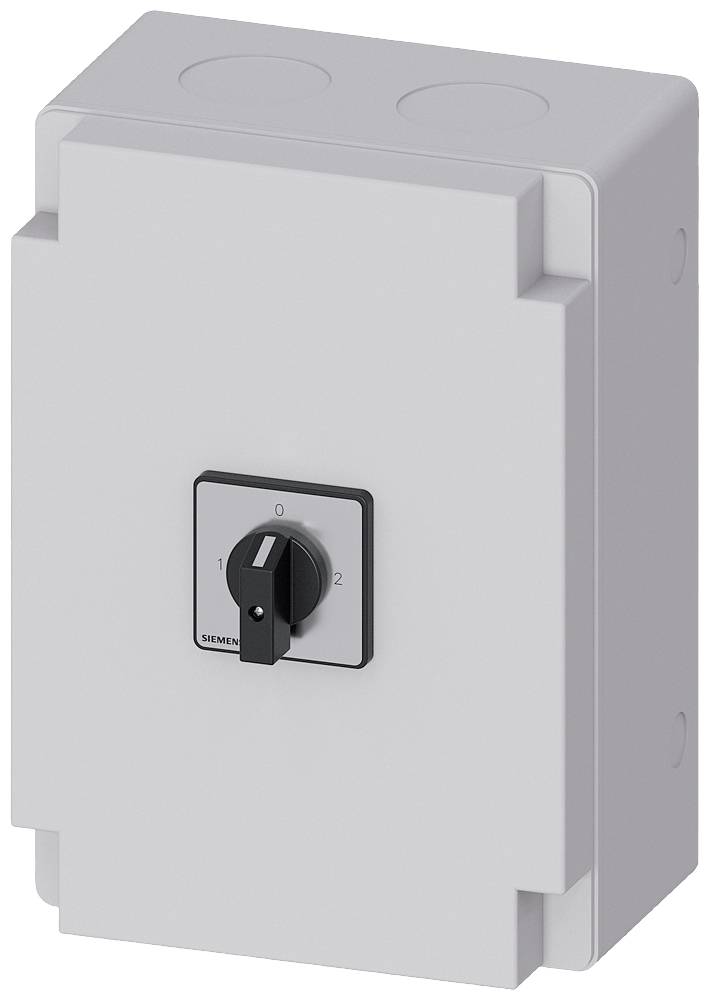

A grey electrical switch box with a black rotary switch showing positions 0, 1 and 2.

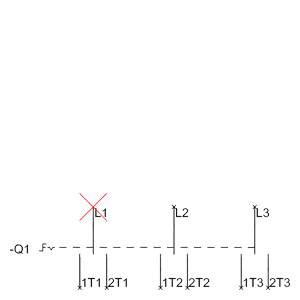

A circuit diagram with three vertical lines L1, L2, L3, connected by a horizontal line. L1 is crossed out in red.

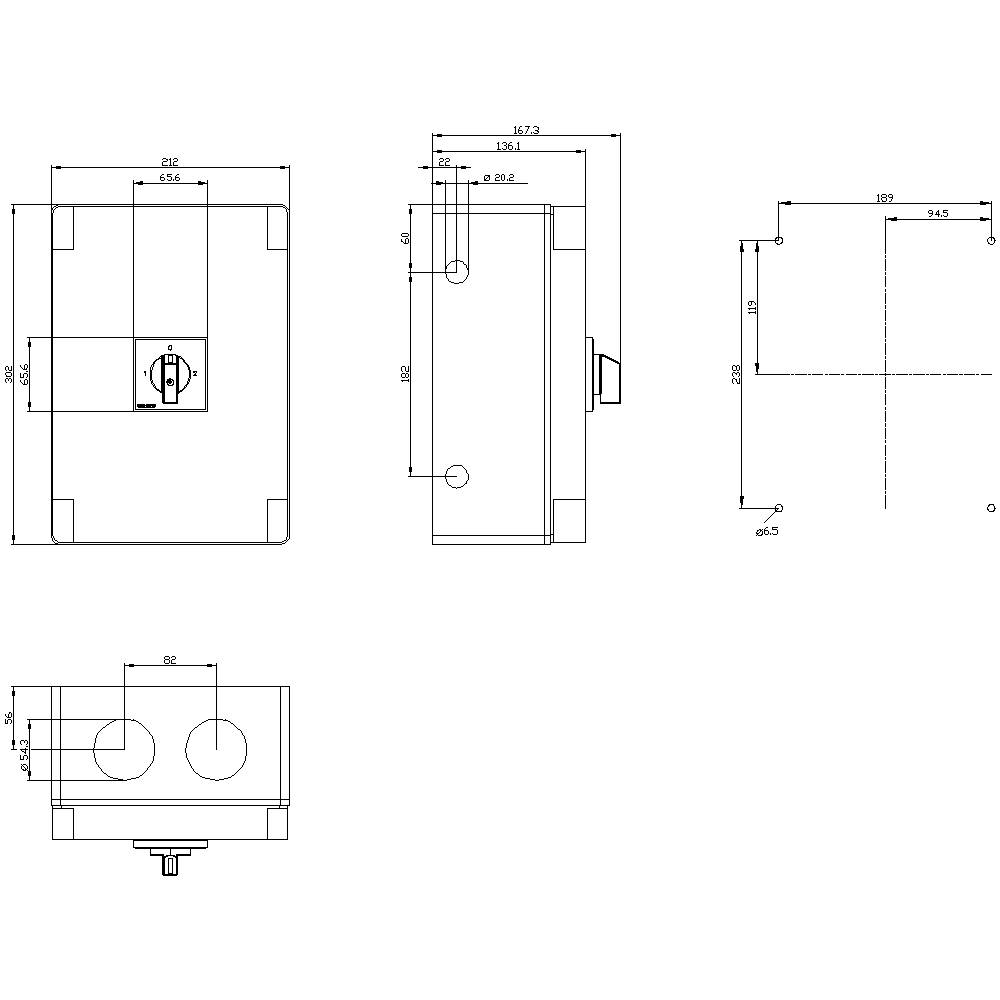

Technical drawing of a rectangular enclosure with dimensions. Shows front, side, and top views with length specifications.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

100 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 499.00 / piece)

€ 499.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: black
Size of the switch disconnector: 4

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Black

Cross section: 50 mm²

Number of pins: 3

Dim: (W x H x D) 212 x 302 x 181 mm

Nominal current: 100 A

Nominal current - rounded value: 100 A

Type: Switch

LED colour: Black

Material: Insulant

Width: 212 mm

Height: 302 mm

Depth: 181 mm

: 30 kW

: 0

: 0

: 100 A

: 3

: IP65

: 0

: 1

: FALSE

: FALSE

: Frame clamp

: FALSE

: Toggle

: TRUE

: TRUE

: TRUE

: 37 kW

: 2 kA

: Black

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 100 A

: FALSE

: 70

: Other

UKCA: yes
