Name: Circuit breakers Red, Yellow 3-pin 16 mm² 25 A 690 V AC Siemens 3LD31480TK53
Brand: Siemens
SKU: 1741529
Availability: BackOrder

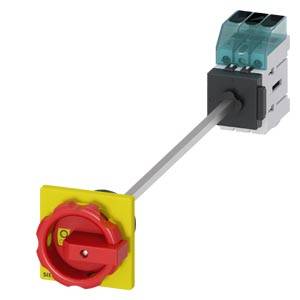

A red emergency stop switch with a yellow background. The switch is in the off position and connected to an elongated mounting arm.

Technical Drawing of a Mechanical Component with Dimensioning; Shows Front, Side, and Top Views. Includes Measurements in Millimetres.

1/2

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

25 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Power loss: 3.3 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 16 mm²

Number of pins: 3

Dim: (W x H x D) 36 x 60 x 380 mm

Nominal current: 25 A

Nominal current - rounded value: 25 A

Type: Emergency stop switch

Width: 36 mm

Height: 60 mm

Depth: 380 mm

: 8 kW

: 0

: 0

: 25 A

: 3

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 10 kW

: 0.5 kA

: Red

: TRUE

: FALSE

: TRUE

: TRUE

: TRUE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 25 A

: FALSE

: 20

: Other

UKCA: yes
