Name: Circuit breakers Red, Yellow 6-pin 35 mm² 63 A 690 V AC Siemens 3LD25663VB53
Brand: Siemens
SKU: 1750616
Availability: BackOrder

A grey main isolator with a red rotary knob on a yellow background, used for electrical isolation during maintenance work.

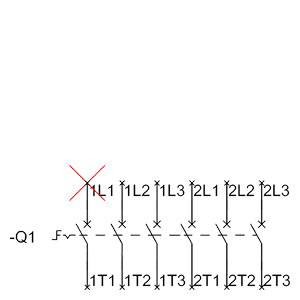

Circuit diagram shows a series of switches and contacts, including '-Q1', '1T1', '2T2'. A red X marks an area at '1L1'.

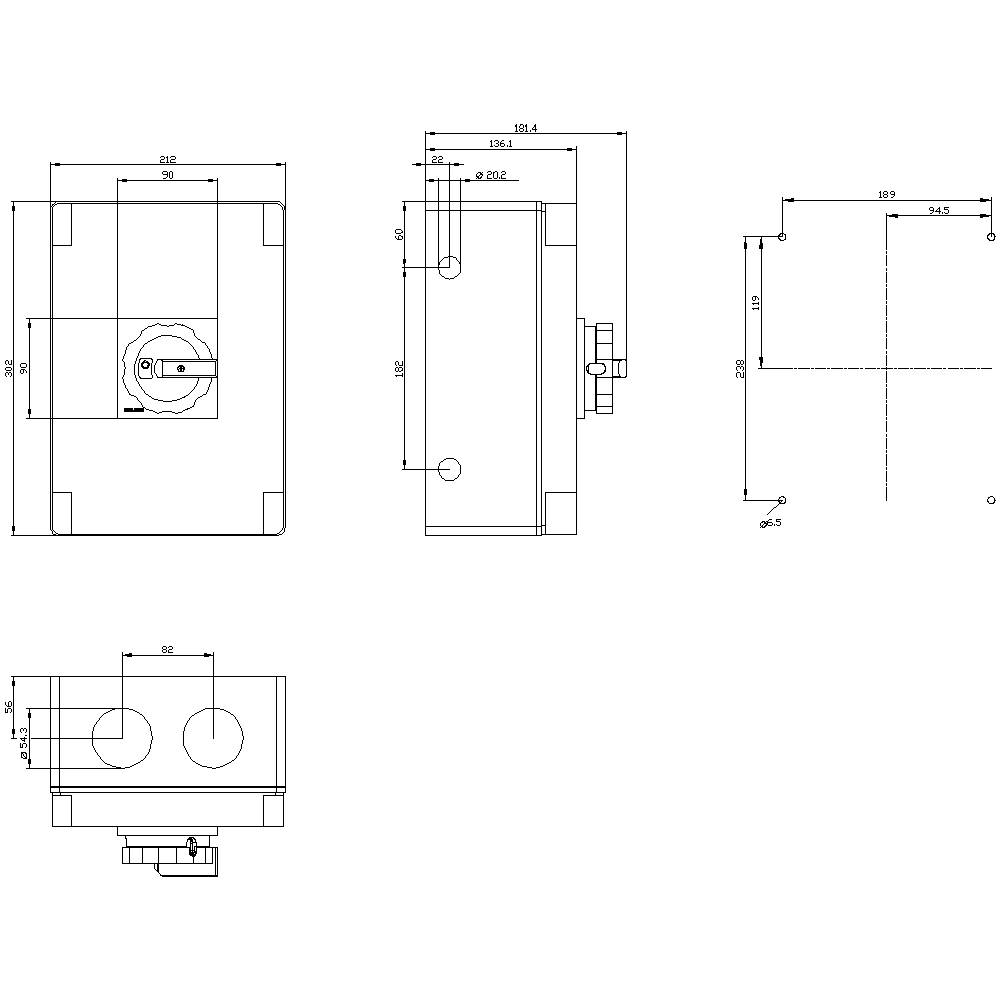

Technical drawing of a rectangular component with multiple views and dimensions, showing details such as holes and cut edges.

1/3

Image similar

Product type

Circuit breakers

Nominal voltage

690 V AC

Number of pins

Nominal current - rounded value

63 A

Operating voltage

690 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 265.00 / piece)

€ 265.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

IP65 rating
Isolation voltage: 690 V
Operating frequency: 50/60 Hz
Ambient temperature: -25 °C to +55 °C
Surge voltage resistance: 6 kV
Mechanical life: 100000
Electrical life: 6000
Color of the actuator: red
Size of the switch disconnector: 3
Power loss: 27 W

Product type: Circuit breakers

Operating voltage: 690 V AC

Nominal voltage: 690 V AC

Factory colour: Red
Yellow

Cross section: 35 mm²

Number of pins: 6

Dim: (W x H x D) 212 x 302 x 181 mm

Nominal current: 63 A

Nominal current - rounded value: 63 A

Type: Emergency stop switch

Width: 212 mm

Height: 302 mm

Depth: 181 mm

: 19 kW

: 0

: 0

: 63 A

: 6

: IP65

: 0

: 1

: TRUE

: FALSE

: Frame clamp

: TRUE

: Short thumb-grip

: TRUE

: TRUE

: TRUE

: 22 kW

: 1.26 kA

: Red

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: 690 V

: FALSE

: FALSE

: Built-in device fixed built-in technique

: 63 A

: FALSE

: 43

: Other

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Cross section

Nominal current - rounded value

Nominal voltage

Number of pins

3-pin 35 mm² 63 A 1 maker, 1 breaker 690 V AC Siemens 3LD25551TP000AE8

Item no:1744180

Dispatches on Thu 5 Nov

Conrad Electronic

35 mm²

63 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 885.00^*

Black 3-pin 16 mm² 25 A 690 V AC Siemens 3LD21300TK110AF5

Item no:1743114

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

25 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 3,239.00^*

Circuit breakers 3-pin 16 mm² 16 A 1 maker, 1 breaker 690 V AC Siemens 3LD30101TK05

Item no:1744386

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

16 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

Circuit breakers 3-pin 16 mm² 16 A 690 V AC Siemens 3LD30100TK05

Item no:1744384

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

16 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

Circuit breakers 3-pin 16 mm² 25 A 1 maker, 1 breaker 690 V AC Siemens 3LD31101TK05

Item no:1703073

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

25 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Circuit breakers 3-pin 16 mm² 25 A 690 V AC Siemens 3LD31100TK05

Item no:1699137

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

25 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 45.99^*

Circuit breakers 3-pin 16 mm² 32 A 1 maker, 1 breaker 690 V AC Conductor type = L Siemens 3LD32101TK05

Item no:1741547

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

32 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Circuit breakers 3-pin 16 mm² 32 A 690 V AC Siemens 3LD32100TK05

Item no:1748476

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

32 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

Circuit breakers 3-pin 16 mm² 40 A 1 maker, 1 breaker 690 V AC Siemens 3LD33101TK05

Item no:1741759

Dispatches on Thu 12 Nov

Conrad Electronic

16 mm²

40 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

Circuit breakers 3-pin 16 mm² 40 A 690 V AC Siemens 3LD33100TK05

Item no:1741757

Dispatches on Thu 5 Nov

Conrad Electronic

16 mm²

40 A

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 69.99^*

Documents & Downloads

Datasheet

Datasheet 1750616 Circuit breakers Red, Yellow 6-pin 35 mm² 63 A 690 V AC Siemens 3LD25663VB53

User & Safety Instructions

User & Safety Instructions 1750616 Circuit breakers Red, Yellow 6-pin 35 mm² 63 A 690 V AC Siemens 3LD25663VB53

Description

SENTRON, Switch disconnector 3LD, emergency switching-off switch, 3- pole, Iu: 100 A, operating power / at AC-23 A 400 V: 37 kW, Molded plastic encapsulation for metric cable gland, 1 NC, 1 NO, rotary operating mechanism, red/yellow The 3LD main and emergency switching-off switch as a maintenance switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD have proven themselves in many fields, particularly in processing machines in mechanical and conveyor system engineering, and in the chemical sector and food and beverage industries. Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile and global applications possible thanks to international IEC, UL and marine approvals. 3. Degree of protection IP65 with encapsulated housing for outdoor applications. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 250 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
