Cisco C1000-48P-4G-L C1000-48P-4G-L 19" switch box PoE
EAN:
Part number:
Item no:
Highlights & Details

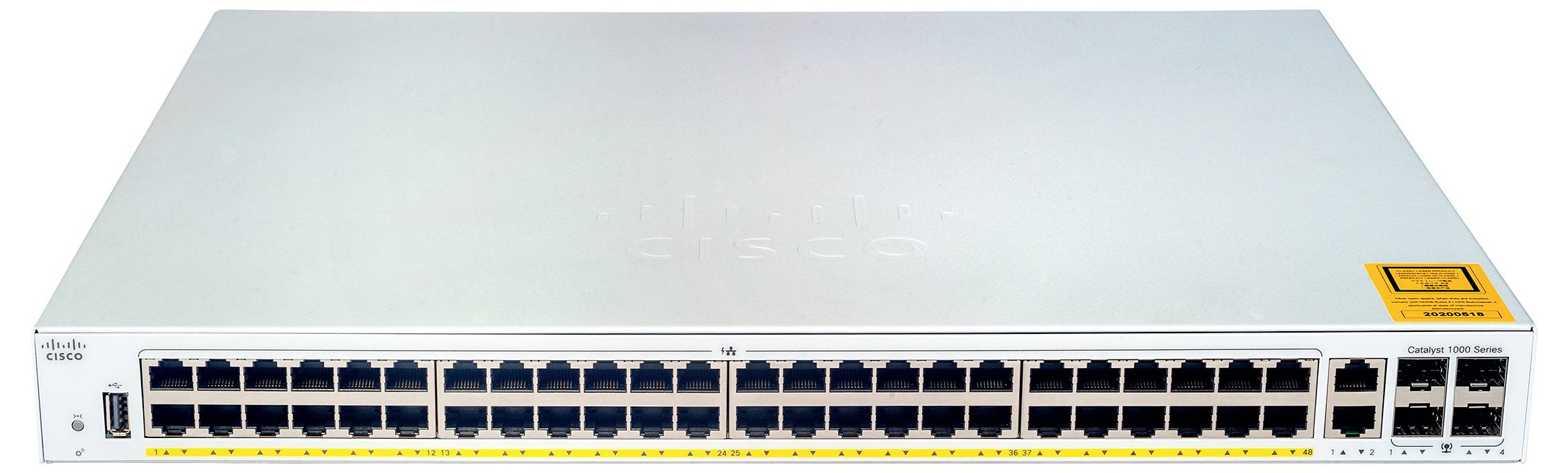

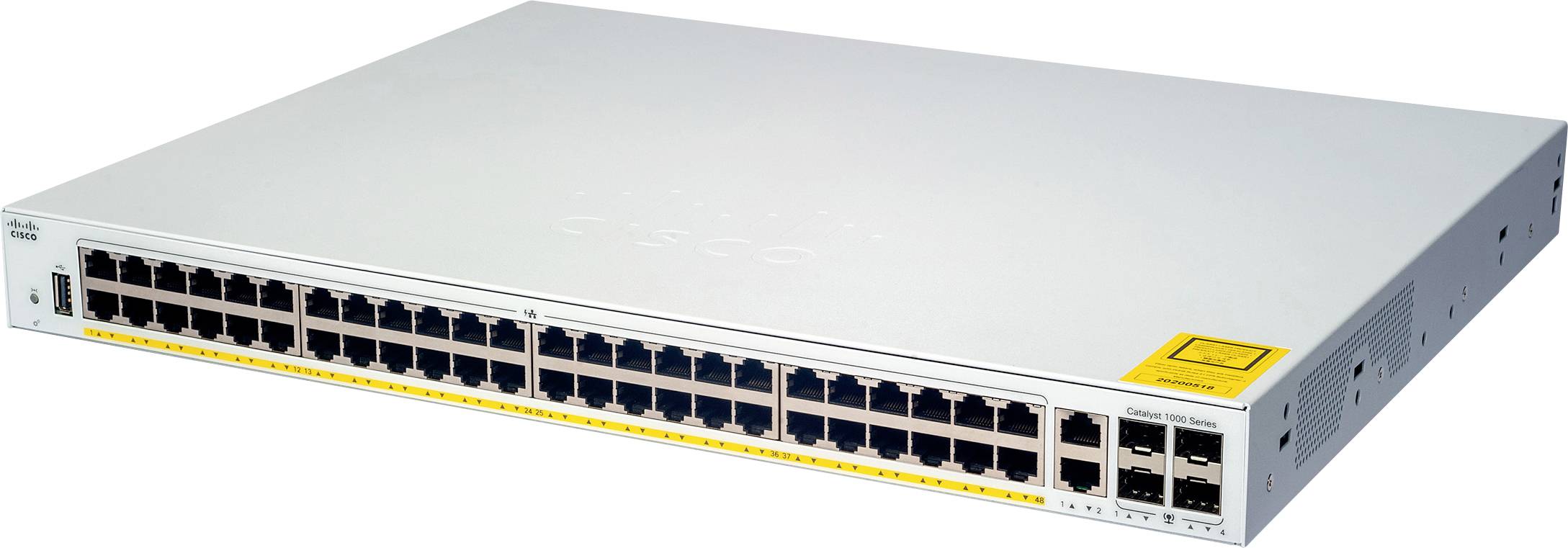

Cisco Catalyst C1000-48P-4G-L Network Switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
- Managed L2 Web-based management SNMP
- Quality of Service (QoS) Support Site Settings Configuration (CLI)
- Number of basic switching RJ-45 Ethernet ports: 48 console port: RJ-45/mini USB
- MAC address table: 16000 entries Routing/switching capacity: 104 Gb/s.
- Access control list
- Power over Ethernet (PoE)
- This text is machine translated.
Technical specifications
- Memory type: DRAM
- Power plug type C
- Product type
19" switch box
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Working principle
Managed switch
- Ethernet ports
48
- SFP ports
4 x
- 10/100/1000 Mbps ports
48 x
- Router features
PoE
- Power supply (LOV)
mains-powered
- Weight
5.43 kg
- Width
444.5 mm
- Height
43.9 mm
- Depth
350 mm
- Type
C1000-48P-4G-L
- Rack size
483 mm (19")
- Interfaces
Gigabit LAN (1 Gbps)
RJ45
SFP
USB type A
- Factory colour
Grey
- No. of USB A 2.0 ports
1 x
- Power consumption (ON)
35.6 W
- Power supply (details)
110 - 220 V
- CPU speed
800 MHz
512 MB
- Processor/type
ARM7
- UKCA
yes
- Operating temperature (T-T)
-5 - 50 °C
- Basic switching RJ-45 Ethernet ports quantity
48
- Total Power over Ethernet (PoE) budget
370 W
- Number of static routes
16
- Storage relative humidity (H-H)
5 - 95 %
- Non-operating altitude
0 - 4500 m
- Auto-negotiation
yes
- Switching capacity
104 Gbit/s
- Quantity per pack
1 Stück(e)
- Traffic classification
yes
- Loop protection
yes
- BPDU filtering/protection
yes
- ARP inspection
yes
- Jumbo frames
10240
- Power over Ethernet (PoE) power per port
15 W
- Products per master (outer) case
1 Stück(e)
- Products per shipping (inner) case
1 Stück(e)
- SFP module slots quantity
4
- Power over Ethernet (PoE)
yes
- Quality of Service (QoS) support
yes
- Link aggregation
yes
- Jumbo frames support
yes
- Multicast support
yes
- Broadcast storm control
yes
- Static route
yes
- Configuring Location Settings (CLI)
yes
- IGMP entries
1024
- IPv4 multicast entries
1024
- IPv6 multicast entries
1024
- Web-based management
yes
- Access Control List (ACL)
yes
- Mean time between failures (MTBF)
1452667 h
- Full duplex
yes
- Flash memory
256 MB
- MAC address table
16000 Eintragungen
- SSH/SSL support
yes
- IGMP snooping
yes
- Auto MDI/MDI-X
yes
- Number of VLANs
256
- Spanning tree protocol
yes
- Operating altitude
0 - 3000 m
- Operating relative humidity (H-H)
5 - 90 %
- VLAN support
yes
- 10G support
no
- Storage temperature (T-T)
-25 - 70 °C
- Package weight
7.28 kg
- Forwarding rate
77.38 Mpps
- Built-in processor
yes
- Power consumption (max)
40.32 W
