Name: ComPro Signal tower component CO ST 70 CO ST 70 LED 1 pc(s)
Brand: ComPro
SKU: 585381
Availability: BackOrder

A multi-coloured signal light with three illuminated colours: red at the top, orange in the middle, and green at the bottom.

Red, cylindrical warning light, labelled with 'ComPro CO ST 70F R 024 24V LED AC/DC IP65 CE'.

Green circular LED light element with 'ComPro' inscription and technical specifications such as 24V and IP65 protection rating.

An orange LED signal light, cylindrical, for 24V AC/DC with IP65 protection class. Top surface marked with CE certification.

Two black electronic devices with the label 'ComPro CO ST 70 F'. One is lying flat, the other is visible from underneath.

A black, cylindrical plastic base with a round foundation and three mounting holes, serves to stabilise equipment.

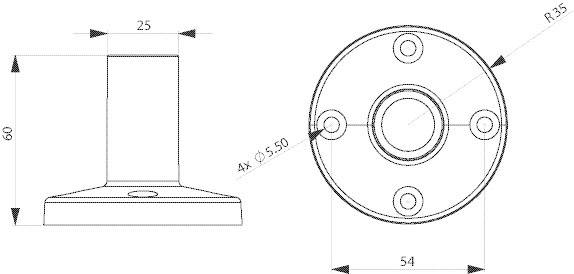

Technical Drawing of a Holder with Dimensions: Height 60, Width 25, Diameter 54, four holes with 5.5 diameter.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 285.00 / piece)

€ 285.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED Signalsaulen-Set CO ST70

Defined set for a flexible and rapid application
Optimal lighting.
Easy assembly

Technical specifications

Product type: Signal tower component

Series: CO ST 70

Operating voltage: 24 V DC
24 V AC

Factory colour: Red
Yellow
Green

Lighted picture: Permanent light, flash, double flash, emergency light

Signal type: Non-stop light signal
Flash
Emergency light

(Ø): 70 mm

Features: LED

: IP65

Dim: (Ø) 70 mm

Type: CO ST 70

Noise emission (max.): 75 dB

Documents & Downloads

Datasheet

Datasheet 585381 ComPro Signal tower component CO ST 70 CO ST 70 LED 1 pc(s)

User & Safety Instructions

User & Safety Instructions 585381 ComPro Signal tower component CO ST 70 CO ST 70 LED 1 pc(s)

Description

The Compro signal towers CO ST40 and CO ST70, the new generation of the signal tower. Via DIP switches, leave the functions continuous light, flashing light, double flash light and beacon light. The elements are available in the colors red, yellow, green, blue and clear as well as acoustic element. The acoustic element has the settings continuous or intermittent. With the help of our extensive accessories, you can use the signal towers completely individually.

This text is machine translated.

Hints

The color selection and arrangement of the signal tower can be individually arranged by a bayonet lock of the LED elements and can be changed. The signal tower is expandable up to max. 5 elements (5 LED elements or 4 LED elements and 1 siren). With the help of the extensive accessories you can view the signal tower individually.
