Conec 163A16599X 163A16599X D-SUB pin strip Number of pins: 15 Solder bucket 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
D-SUB pin strip
Connector type
Plug
Number of pins
15
Connection
Solder bucket
Datasheet (PDF)
Number
Total (€ 2.49 / piece)
€ 2.49
incl. VAT
14-day return policy included
Highlights & Details

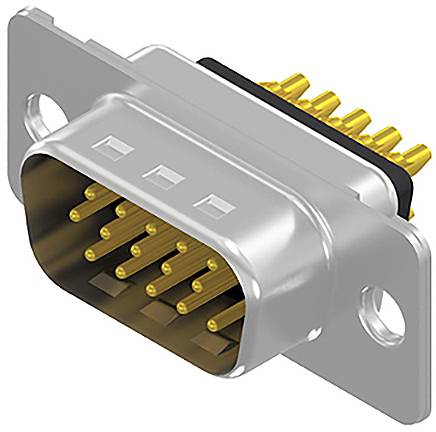

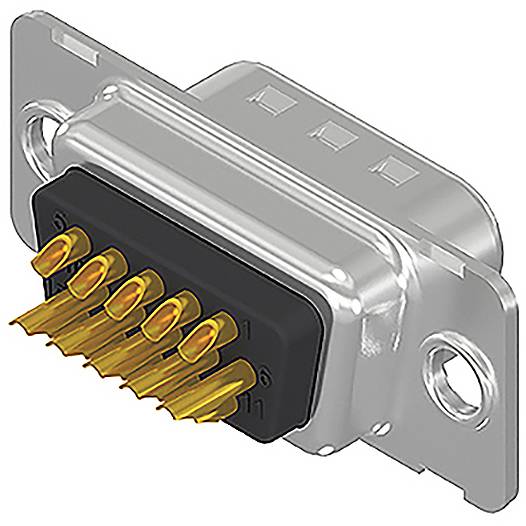

Conec D-SUB header 163A16599X
- D-SUB pin strip
- Number of pins: 15
Our service for you
Technical specifications
- Product type: D-SUB High Density
- Contact type: Pin
- Signal type: Solder cup
- Signal strength 1000 V
- Operating voltage signal 60 V
- IP protection class IP20
- Ampacity signal 3 A
- Insulation body material PBT GF UL 94 V-0
- Insulation body material color: Black
- Shell material: Steel
- Shell surface: Tin
- Signal contact material: Copper alloy
- Signal contact surface (plug-in area): Gold over nickel
- Standard electrical strength IEC 60807-2
- Standard operating voltage IEC 664-1
- Lower operating temperature: -55° C.
- Upper operating temperature: +125° C.
- Contact contact resistance signal 10 mOhm
- PIN image/number of poles: 15-pin
- Mounting material: Steel
- Mounting type Surface: Nickel
- Mounting type Connection side: Through hole
- Grade: Grade 3
- Mating cycles 50
- Insertion force <50 N
- Pull force <50 N
- Signal contact surface Connection side: Gold over nickel
- Standard mating cycles IEC 60807-2
- Standard plug-in-pulling forces:IEC 60807-2
- Packaging type
Piece
- Product type
D-SUB pin strip
- Connector type
Plug
- Number of pins
15
- Connection
Solder bucket
- Content
1 pc(s)
- Mating cycles
50
- Layout
15 signal pins
- Manufacturer part #
163A16599X
- Factory colour
Black
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- RoHS-compliant
Yes
IP20
- Type
163A16599X
- Nominal current
3 A
- Nominal voltage
60 V
Documents & Downloads
Datasheet
Datasheet 3374440 Conec 163A16599X 163A16599X D-SUB pin strip Number of pins: 15 Solder bucket 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3374440 Conec 163A16599X 163A16599X D-SUB pin strip Number of pins: 15 Solder bucket 1 pc(s) Piece
Description
Conec D-SUB high density, pin, 15-pin
