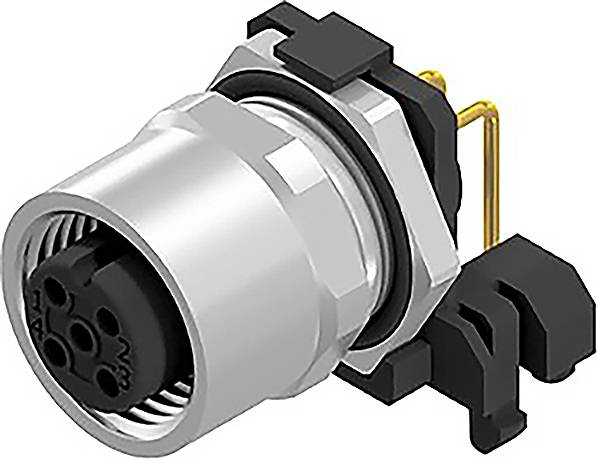

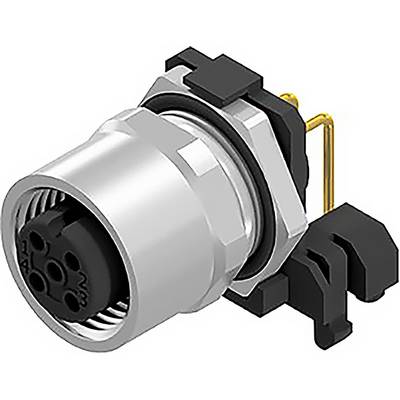

Conec 43-01199 Cable gland No. of pins (RJ): 5 1 pc(s)
Product type
Cable gland
Connection side A
M12 socket, right angle
No. of pins
5
Nominal voltage
60 V
Nominal current
4 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 5.99 / piece)
€ 5.99
incl. VAT
14-day return policy included
Highlights & Details
Conec flange socket 43-01199
Our service for you
Technical specifications
- Design: Flange
- Contact type: Angled coupling
- Type of locking: Screw able
- Mounting type: Rear panel fitting
- Connection type signal: Angled solder pin
- Shielding: Shielded
- Operating voltage signal 60 V
- IP protection class IP67
- Ampacity signal: 4 A at +40°C
- Seal material FPM
- Case material: Copper alloy
- Insulation body material TPU GF, UL94
- Insulation body material color: Black
- Signal contact material: Copper alloy
- Signal contact surface (plug-in area): Gold over nickel
- Standard current carrying capacity IEC 61076-2-101
- Lower operating temperature: -30° C.
- Upper operating temperature: +80° C.
- Housing color: Nickel
- PIN image/number of poles: 5-pin
- Mating cycles: 100
- Standard plug-in cycles IEC 60512-9a
- Standard protection class IEC 60529
- Size A-side: M12x1
- Coding: A-coded
- Thread type M16x1.5
- Pollution level 3/2
- Tightening torque 0.6 Nm
- Insulation resistance >=100M Ohm
- Cast material: Polyurethane resin, UL94
- Cast material color: Blue
- Standard insulation resistance IEC 60512
- Standard degree of contamination IEC 60664-1
- Standard rated voltage IEC 61076-2-101
- Standard ambient temperature: IEC 60664-1
- Type
43-01199
- Product type
Cable gland
- Connection side A
M12 socket, right angle
- No. of pins
5
- Jacket material
TPU
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Solder pins (right-angle)
- Factory colour
Nickel
- Coding
A
- Contact material
Copper alloy
- Contact surface
Gold on nickel
- Sensor/actuator connectivity fittings
Rear panel fitting
IP67
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Seal type
Screw-on
- Manufacturer part #
43-01199
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
Flange
- Mating cycles
100
Documents & Downloads
Datasheet
Datasheet 3374477 Conec 43-01199 Cable gland No. of pins (RJ): 5 1 pc(s)
Datasheet 3374477 Conec 43-01199 Cable gland No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3374477 Conec 43-01199 Cable gland No. of pins (RJ): 5 1 pc(s)
Description
Conec M12x1, flange, angled coupling, 5-pin
