Name: CONTA-CLIP KDS-FP 2x10/24 BK Cable grommet with seal, with flange, waterproof, screw fixing, with mounting hole, Cover (
Brand: CONTA-CLIP
SKU: 2617508
Availability: BackOrder

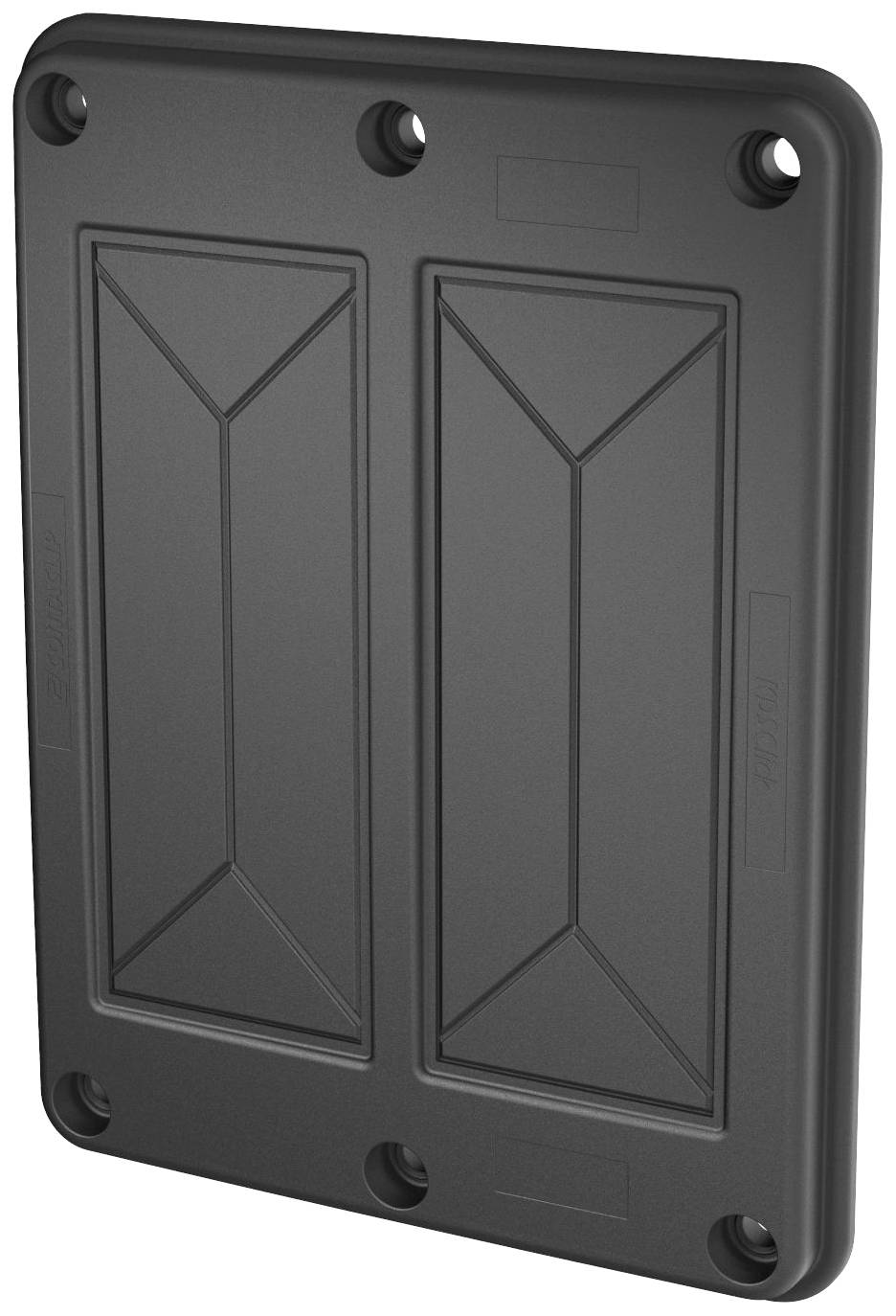

Rectangular black cover with a geometric pattern and rounded corners, featuring four screw holes at the corners.

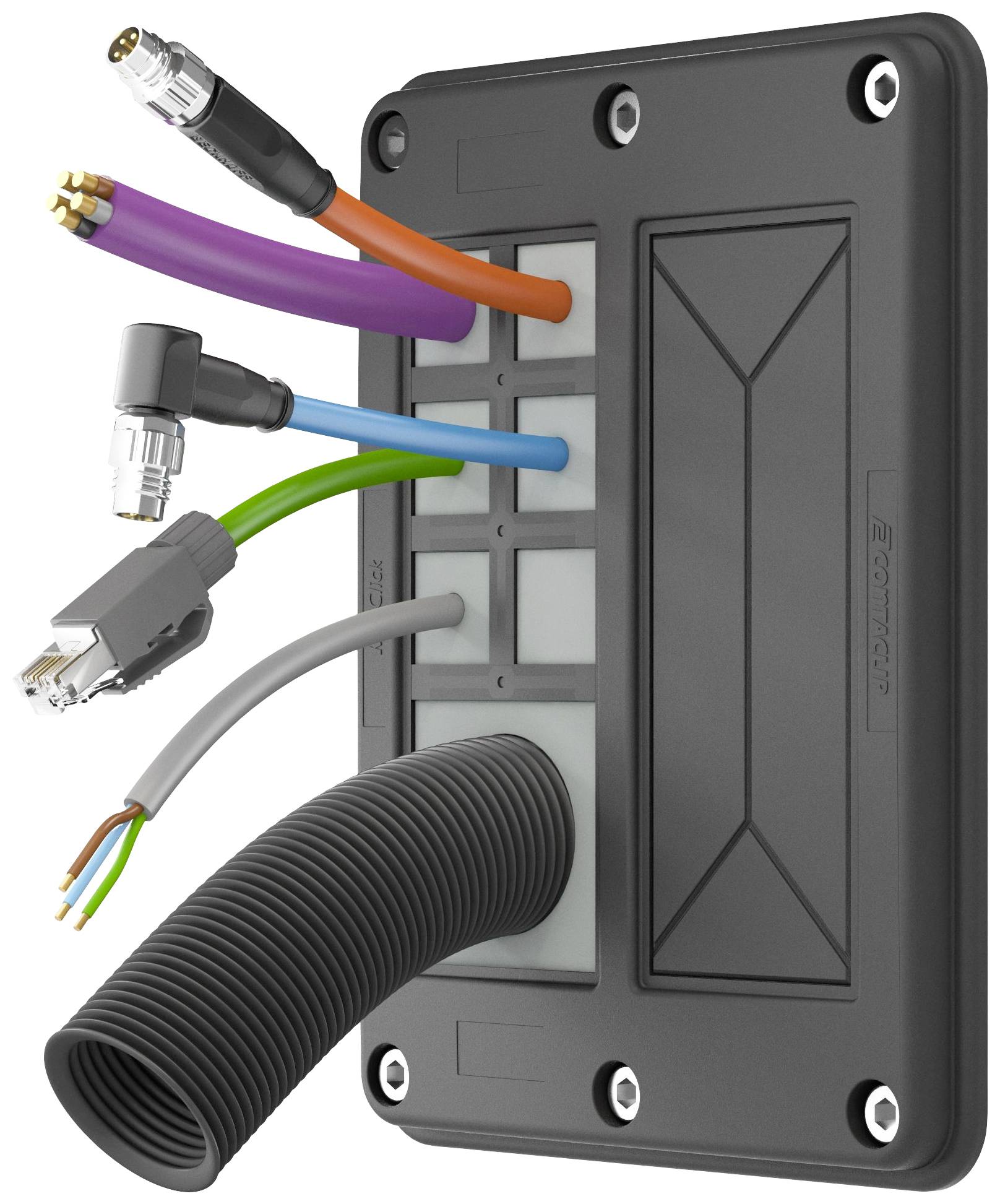

Several cables, including coloured ones and a flexible conduit, are routed through a robust, rectangular cable gland.

Technical drawing of a rectangular metal sheet with four holes in the corners. Dimensions: 142 x 110 mm, hole diameter 5.5 mm.

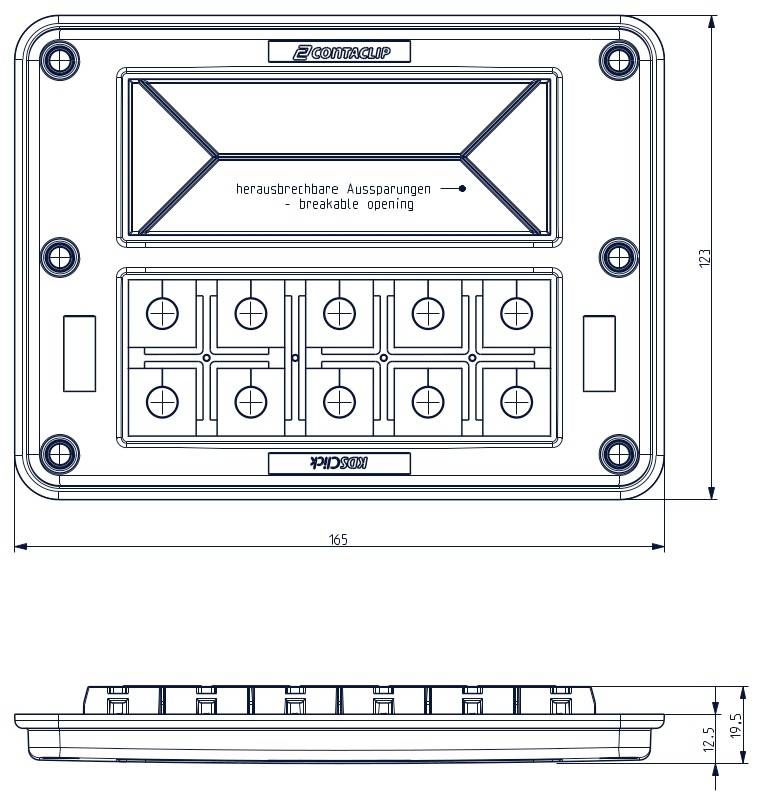

Technical drawing of a rectangular enclosure with dimensions 165 mm x 124 mm. It shows breakout openings and mounting holes.

1/4

Product type

Cable grommet

Features

with seal

with flange

waterproof

screw fixing

with mounting hole

Cover (black) (RAL 9005)

Material

Polyamide 6.6

Mounting hole

Factory colour

Black

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 40.99 / piece)

€ 40.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flange plate cable bushing

Our service for you

Technical specifications

Number of screw holes: 6Type of seal: Flexible sealing foam and foamBuilding height 10.5 mmFlammability class UL 94: V-0Sealing material: Polyurethane baseTightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmMounting type: ScrewsRAL 9005

Product type: Cable grommet

Features: with seal
with flange
waterproof
screw fixing
with mounting hole
Cover (black) (RAL 9005)

Factory colour: Black

Material: Polyamide 6.6

Length: 165 mm

Width: 123 mm

Height: 17.5 mm

Dim: (L x W x H) 165 x 123 x 17.5 mm

Mounting hole: M5

Min. temperature: -40 °C

Max. temperature: +120 °C

: IP66

Halogen-free: Yes

Content: 1 pc(s)

Manufacturer part #: 28660.4

Type: KDS-FP 2x10/24 BK

RoHS-compliant: Yes

Material properties: fibreglass-reinforced
silicone-free

Mounting hole diameter: 5.5 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2617508 CONTA-CLIP KDS-FP 2x10/24 BK Cable grommet with seal, with flange, waterproof, screw fixing, with mounting hole, Cover (

User & Safety Instructions

User & Safety Instructions 2617508 CONTA-CLIP KDS-FP 2x10/24 BK Cable grommet with seal, with flange, waterproof, screw fixing, with mounting hole, Cover (

Description

Cable bushing flange plate with foamed gasket, mounting type: Screws, length: 165 mm, width: 123 mm, IP66, Color: Black

This text is machine translated.

Description

Cable bushing flange plate with foamed gasket, mounting type: Screws, length: 165 mm, width: 123 mm, IP66, Color: Black

This text is machine translated.
