Name: CONTA-CLIP KDS-FP 3x10/24 BK Cable grommet with flange, waterproof, with seal, screw fixing Mounting hole diameter 5.5 m
Brand: CONTA-CLIP
SKU: 2617544
Availability: BackOrder

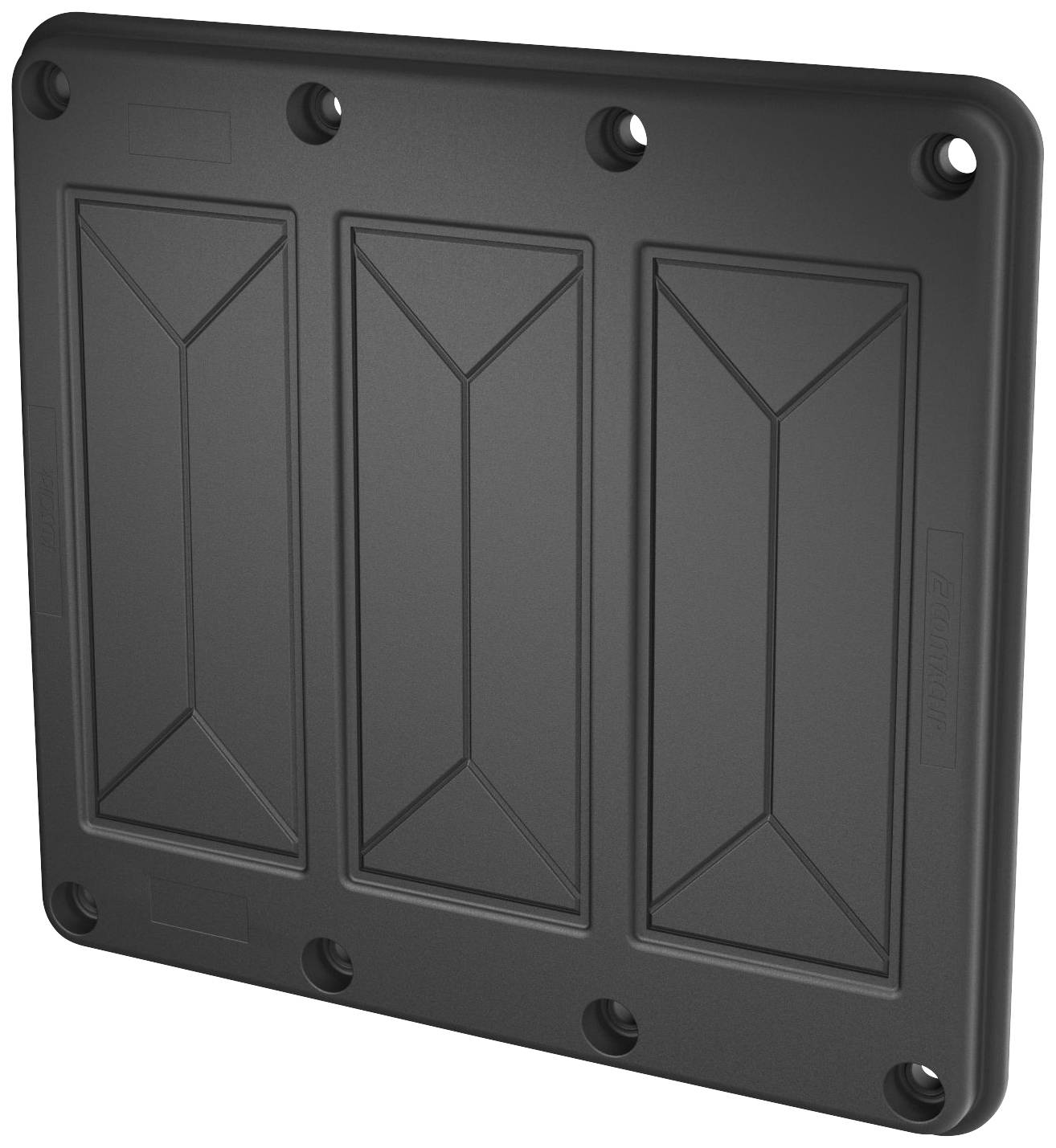

'Black plastic plate with nine mounting holes for cable routing.'

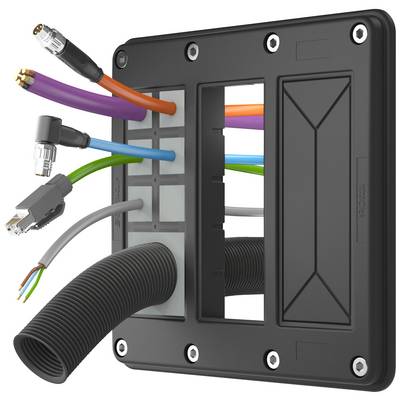

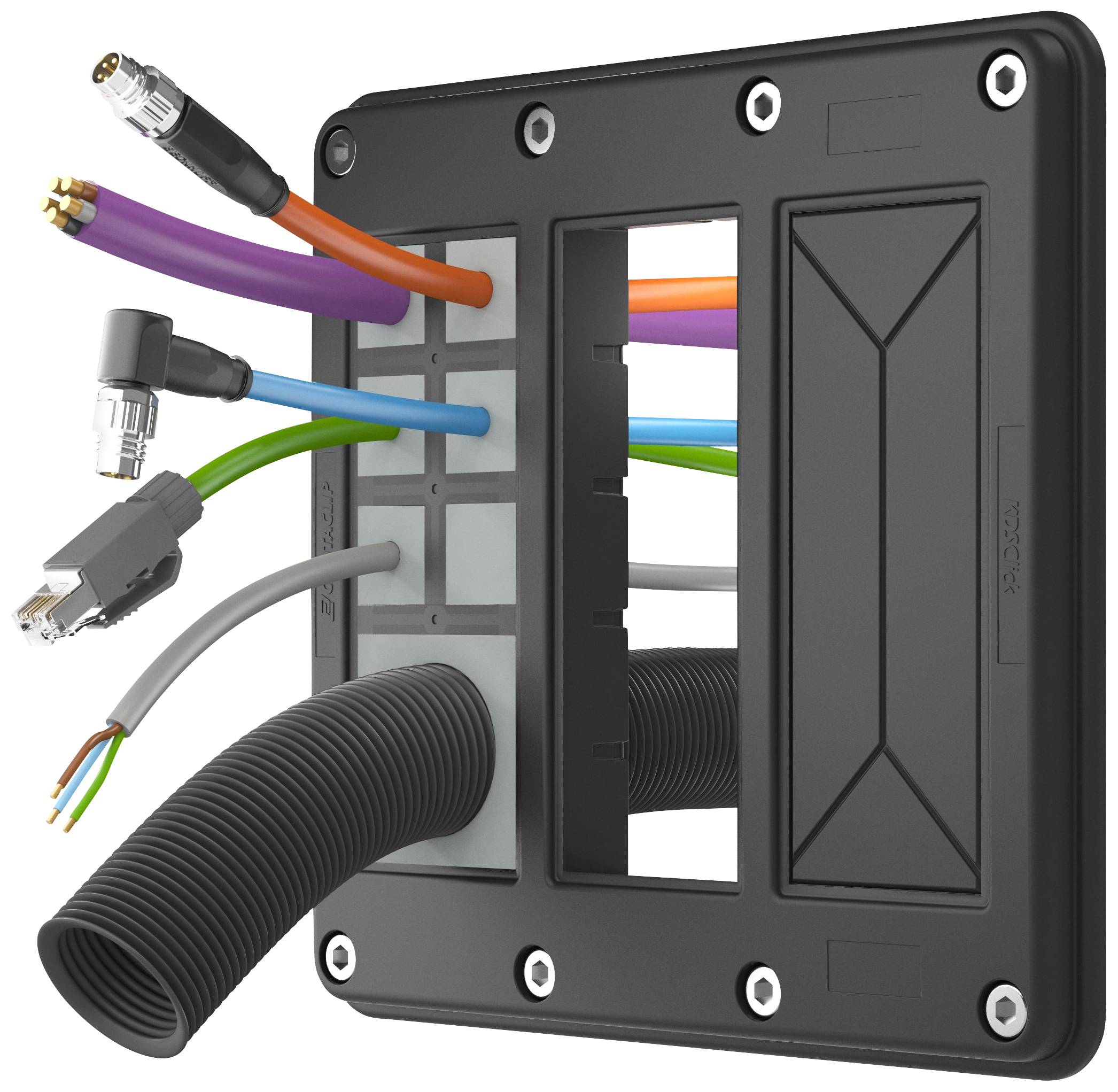

Cable entry system in a rectangular frame with multiple cables and hoses of various colours and connections, which are routed through separate openings.

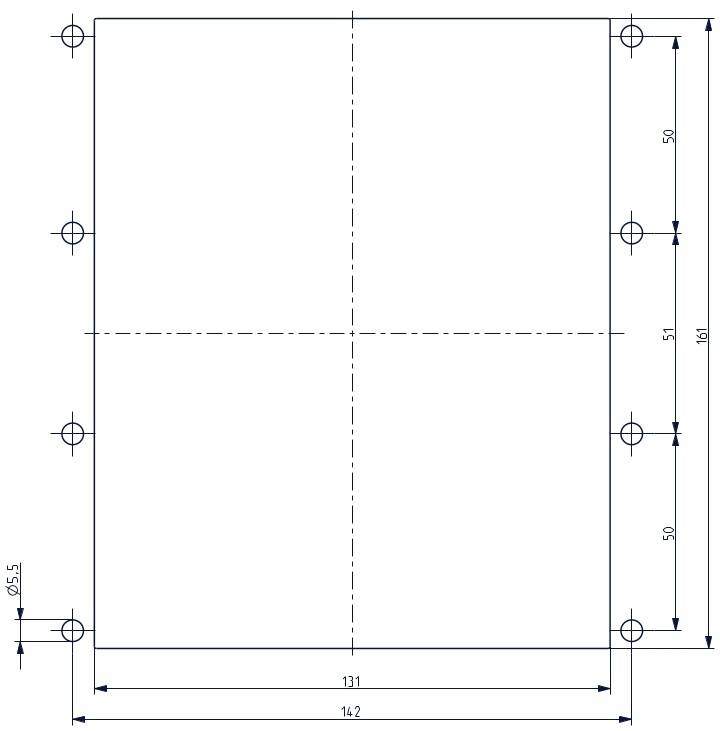

Technical drawing of a rectangular component with dimensions: width 131 mm, height 142 mm. Holes at corners, spacing 50 mm.

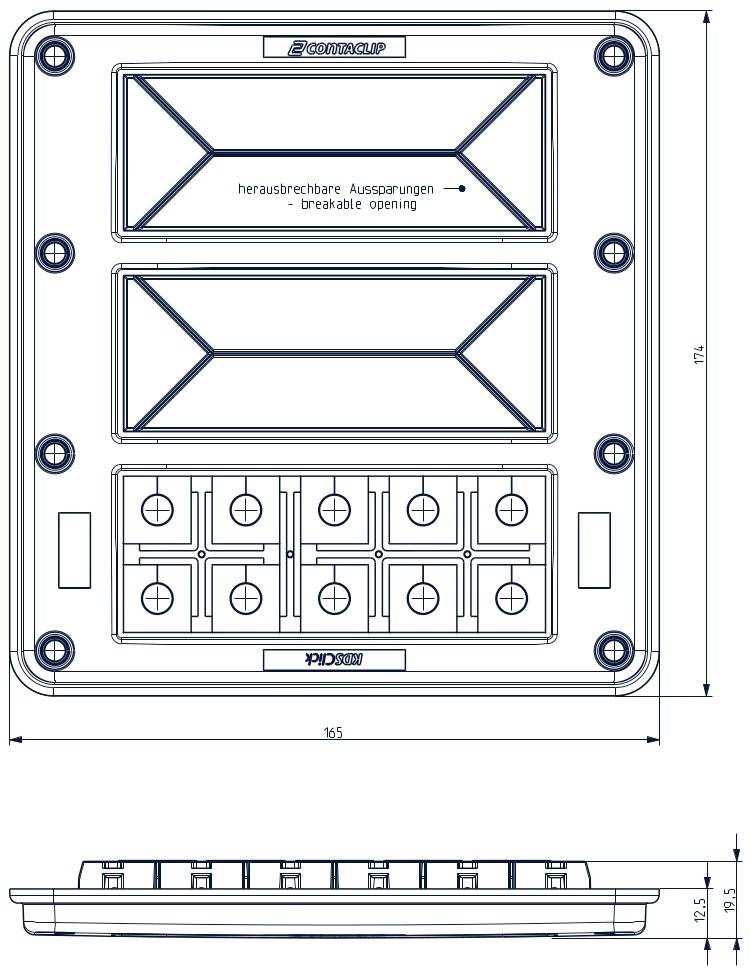

Technical drawing of a rectangular plastic cover with breakout openings and precise dimensioning in millimetres.

1/4

Product type

Cable grommet

Features

with flange

waterproof

with seal

screw fixing

Material

Polyamide 6.6

Mounting hole

Factory colour

Black

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 61.99 / piece)

€ 61.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of screw holes: 8Type of seal: Flexible sealing foam and foamBuilding height 10.5 mmFlammability class UL 94: V-0Sealing material: Polyurethane baseTightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmMounting type: ScrewsRAL 9005

Product type: Cable grommet

Features: with flange
waterproof
with seal
screw fixing

Factory colour: Black

Material: Polyamide 6.6

Length: 165 mm

Width: 174 mm

Height: 17.5 mm

Dim: (L x W x H) 165 x 174 x 17.5 mm

Mounting hole: M5

Min. temperature: -40 °C

Max. temperature: +120 °C

: IP66

Halogen-free: Yes

Content: 1 pc(s)

Manufacturer part #: 28661.4

Type: KDS-FP 3x10/24 BK

RoHS-compliant: Yes

Material properties: fibreglass-reinforced
silicone-free

Mounting hole diameter: 5.5 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2617544 CONTA-CLIP KDS-FP 3x10/24 BK Cable grommet with flange, waterproof, with seal, screw fixing Mounting hole diameter 5.5 m

User & Safety Instructions

User & Safety Instructions 2617544 CONTA-CLIP KDS-FP 3x10/24 BK Cable grommet with flange, waterproof, with seal, screw fixing Mounting hole diameter 5.5 m

Description

Cable bushing flange plate with foamed gasket, mounting type: Screws, length: 165 mm, width: 174 mm, IP66, Color: Black
