CONTA-CLIP KDS-Set 1-4 BK Cable grommet Polyamide 6.6 Black 1 pc(s)
Product type
Cable grommet
Material
Polyamide 6.6
Factory colour
Black
Bore diameter
5.5 mm
Length
81 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 32.99 / piece)
€ 32.99
incl. VAT
14-day return policy included
Highlights & Details
Cable bushing set
Our service for you
Technical specifications
- Number of screw holes: 4Type of seal: Flexible sealing foam and foamBuilding height 19.6 mmWidth of wall cut-out: 46 mmFlammability class UL 94: V-0Sealing material: Polyurethane baseTightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmLength of wall cut-out: 46 mmMounting type: ScrewsRAL 9005
- Product type
Cable grommet
- Factory colour
Black
- Bore diameter
5.5 mm
- Material
Polyamide 6.6
- Length
81 mm
- Width
70 mm
- Height
19.6 mm
- Min. temperature
-40 °C
- Max. temperature
+120 °C
IP66
- Weight
0.0460 kg
- Halogen-free
Yes
- Content
1 pc(s)
- Dim
(L x W x H) 81 x 70 x 19.6 mm
- RoHS-compliant
Yes
- Manufacturer part #
28602.4
- Type
KDS-Set 1-4 BK
- Material properties
fibreglass-reinforced
silicone-free
- Mounting hole
M5
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2617480 CONTA-CLIP KDS-Set 1-4 BK Cable grommet Polyamide 6.6 Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2617480 CONTA-CLIP KDS-Set 1-4 BK Cable grommet Polyamide 6.6 Black 1 pc(s)
Description

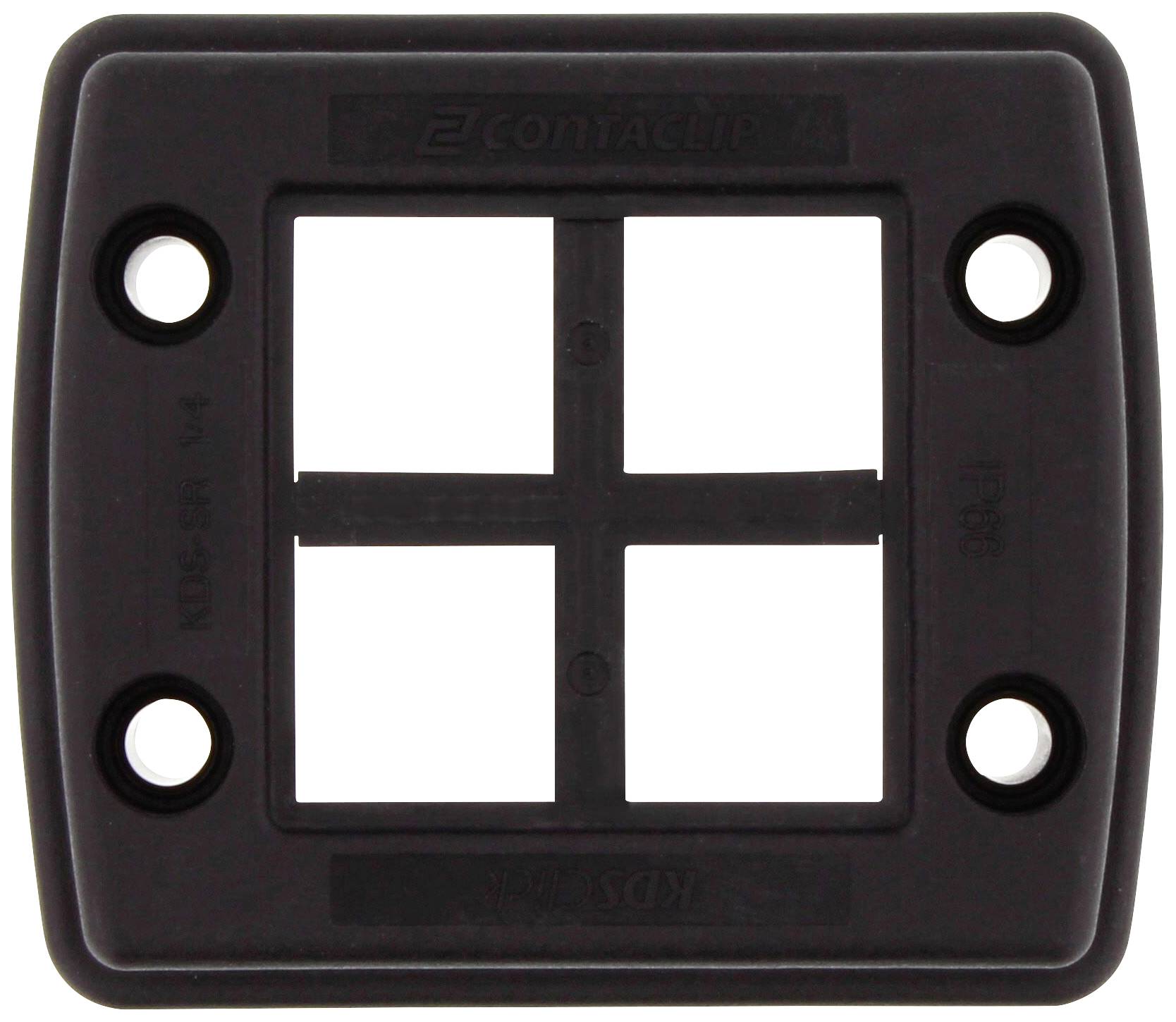

Cable grommet set, IP66, consisting of: 1 x KDS-SR 1-4 BK, 1 x KDS-Inlay 4 BK
This text is machine translated.
This text is machine translated.
