CONTA-CLIP KDS-SR 1-4 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

Black rectangular plastic plate with four screw holes and a square open centre, for mounting purposes.

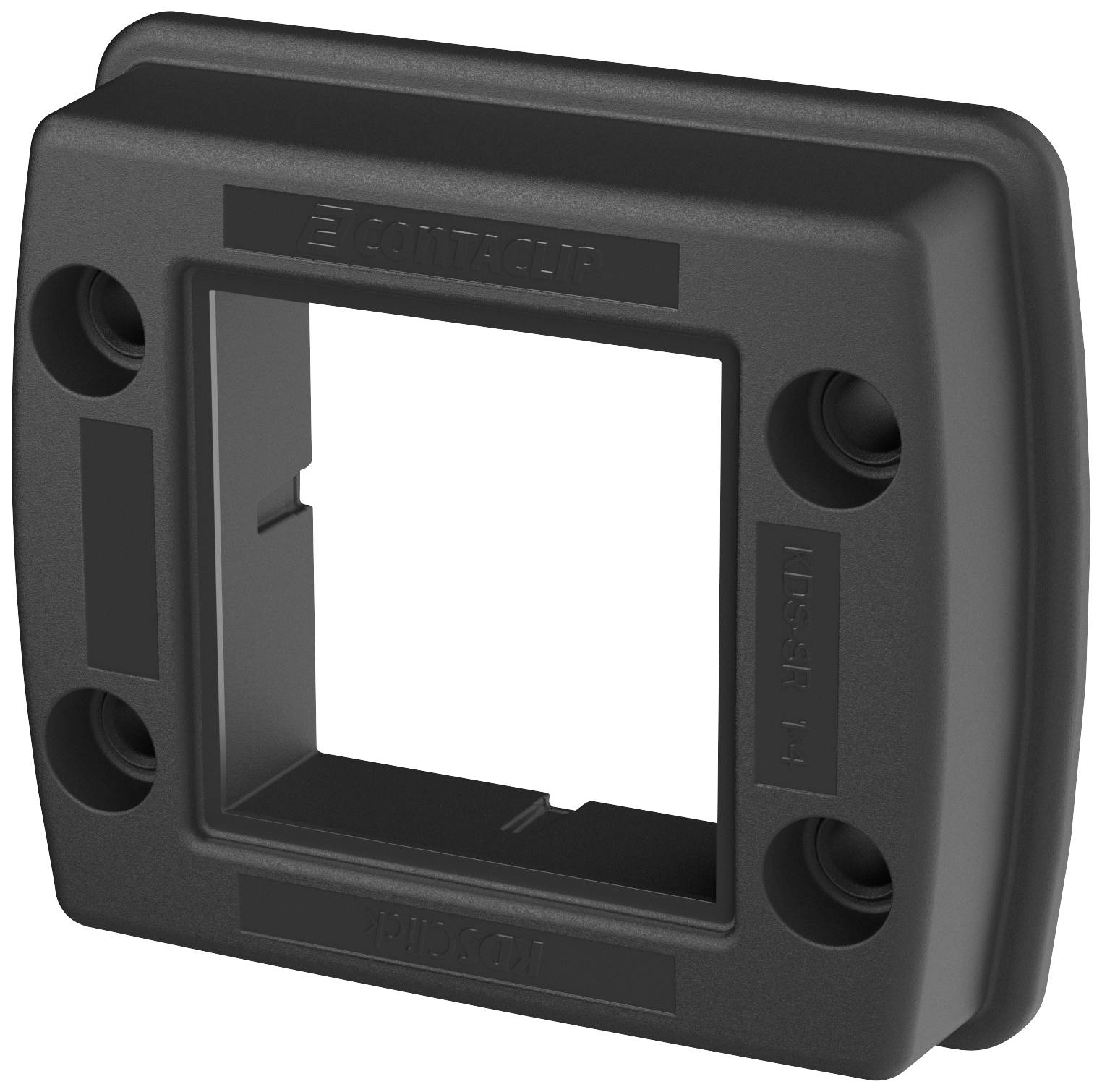

A rectangular black frame with four screw holes at the corners. Suitable for mounting electrical devices or covers.

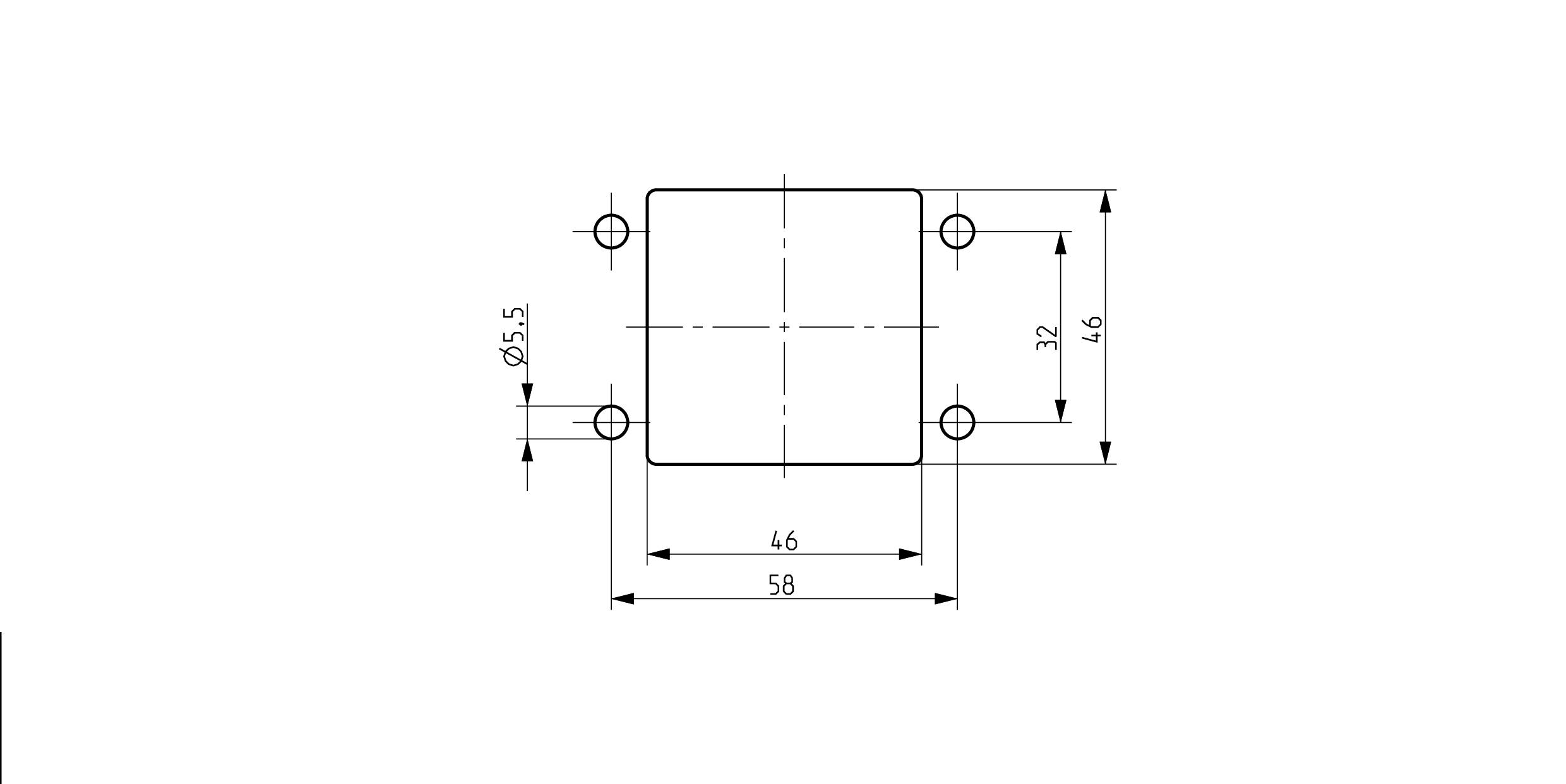

Technical drawing of a square component with dimensions: 58 mm width, 46 mm height, holes Ø5.5 mm.

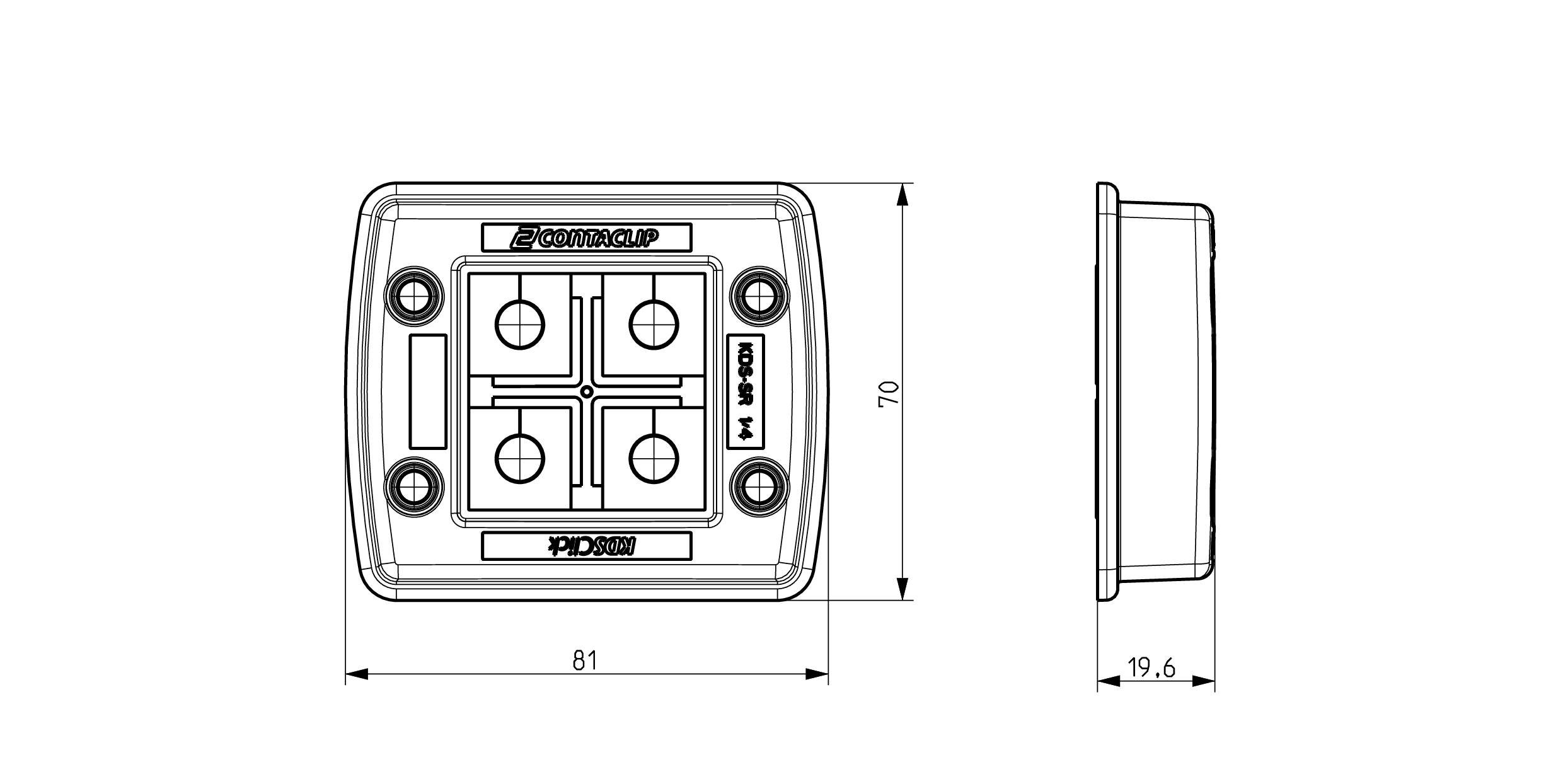

Technical drawing of a rectangular enclosure with buttons and dimensions: 81 mm width, 70 mm height, 19.6 mm depth. Top view and side view.
1/4
Product type
Cable grommet
Features
with seal
Material
Polyamide 6.6
Mounting hole
M5
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 15.99 / piece)
€ 15.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Grommet

Our service for you

Technical specifications

  • Number of screw holes: 4Type of seal: Flexible sealing foam and foamBuilding height 19.6 mmWidth of wall cut-out: 46 mmFlammability class UL 94: V-0Sealing material: Polyurethane baseTightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmLength of wall cut-out: 46 mmMounting type: ScrewsRAL 9005
Product type

Cable grommet

Features

with seal

Factory colour

Black

Material

Polyamide 6.6

Length

81 mm

Width

70 mm

Height

19.6 mm

Dim

(L x W x H) 81 x 70 x 19.6 mm

Mounting hole

M5

Min. temperature

-40 °C

Max. temperature

+120 °C

IP66

Halogen-free

Yes

Content

1 pc(s)

Manufacturer part #

28506.4

Type

KDS-SR 1-4 BK

RoHS-compliant

Yes

Material properties

fibreglass-reinforced

silicone-free

Mounting hole diameter

5.5 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2617372 CONTA-CLIP KDS-SR 1-4 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2617372 CONTA-CLIP KDS-SR 1-4 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

Description

Cable gland with foamed gasket, mounting type: Screws, length: 81 mm, width: 70 mm, IP66, Color: Black
