CONTA-CLIP KDS-SR 10/24 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

Black, rectangular plastic bracket with two large, empty, rectangular cutouts in the centre and four mounting holes in the corners.

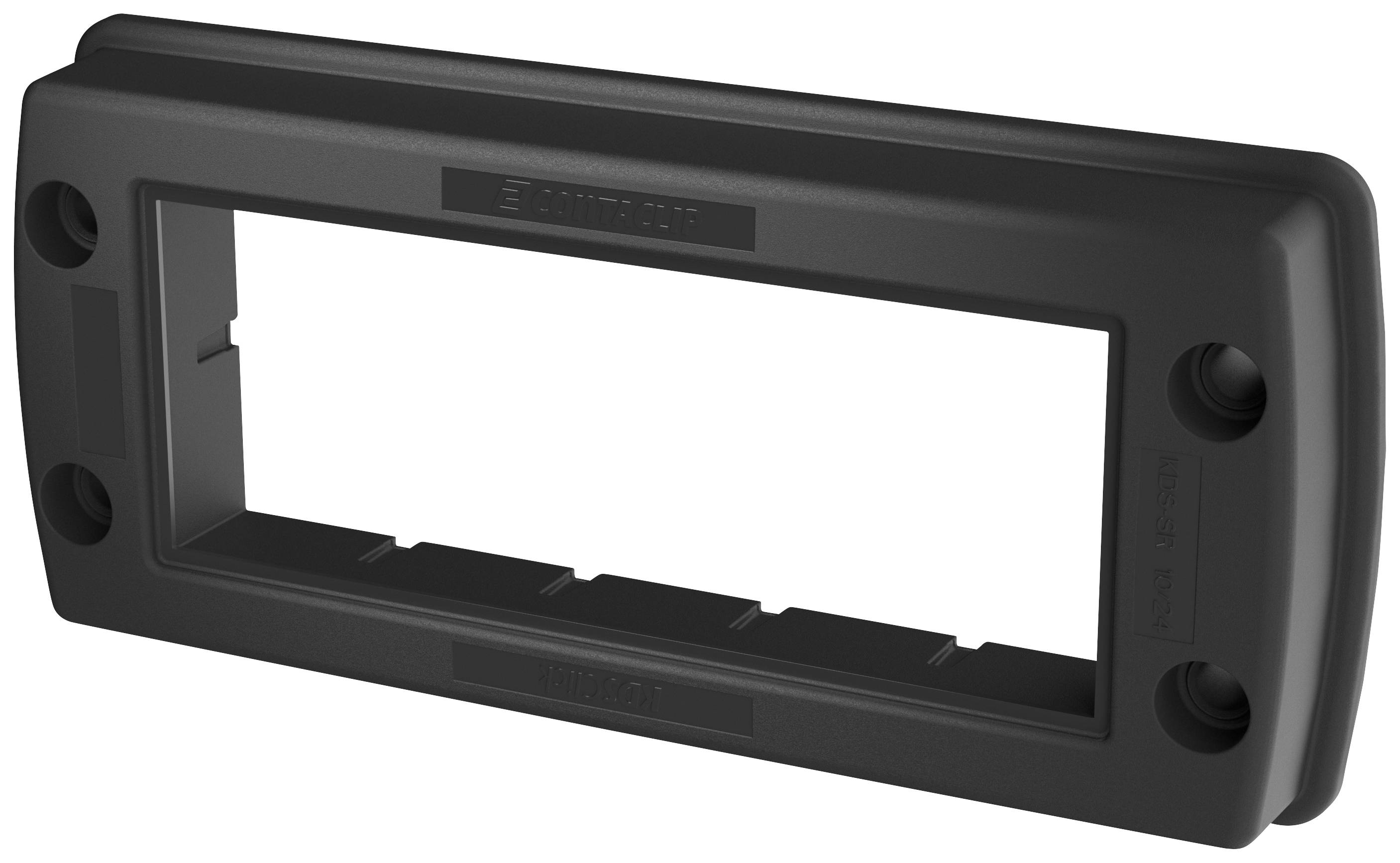

Black rectangular plastic frame with four mounting points. Suitable for installation in electronic devices.

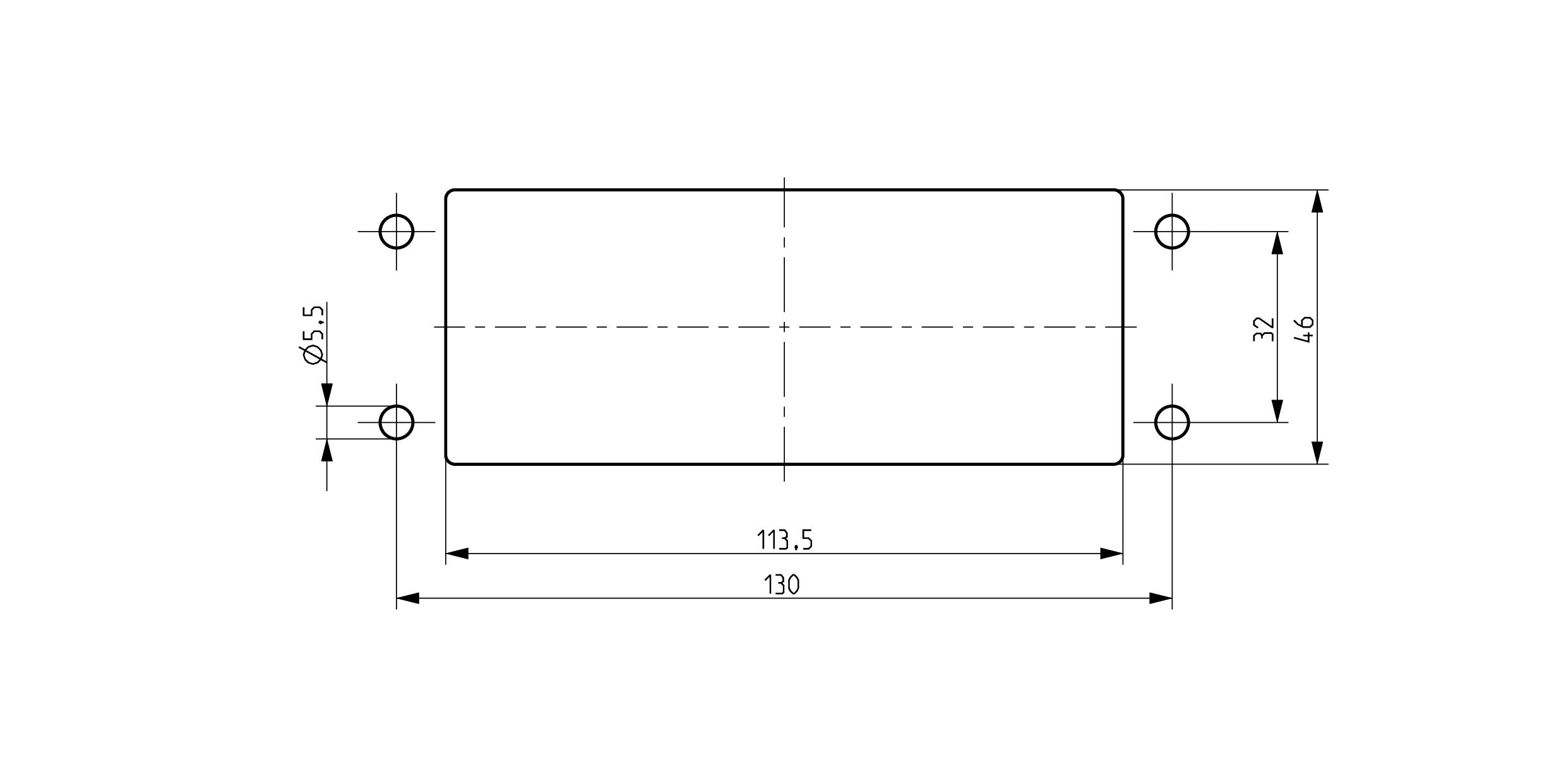

Technical drawing of a rectangular part with holes in the corners. Overall width 130 mm, height 32 mm, holes Ø5.5 mm.

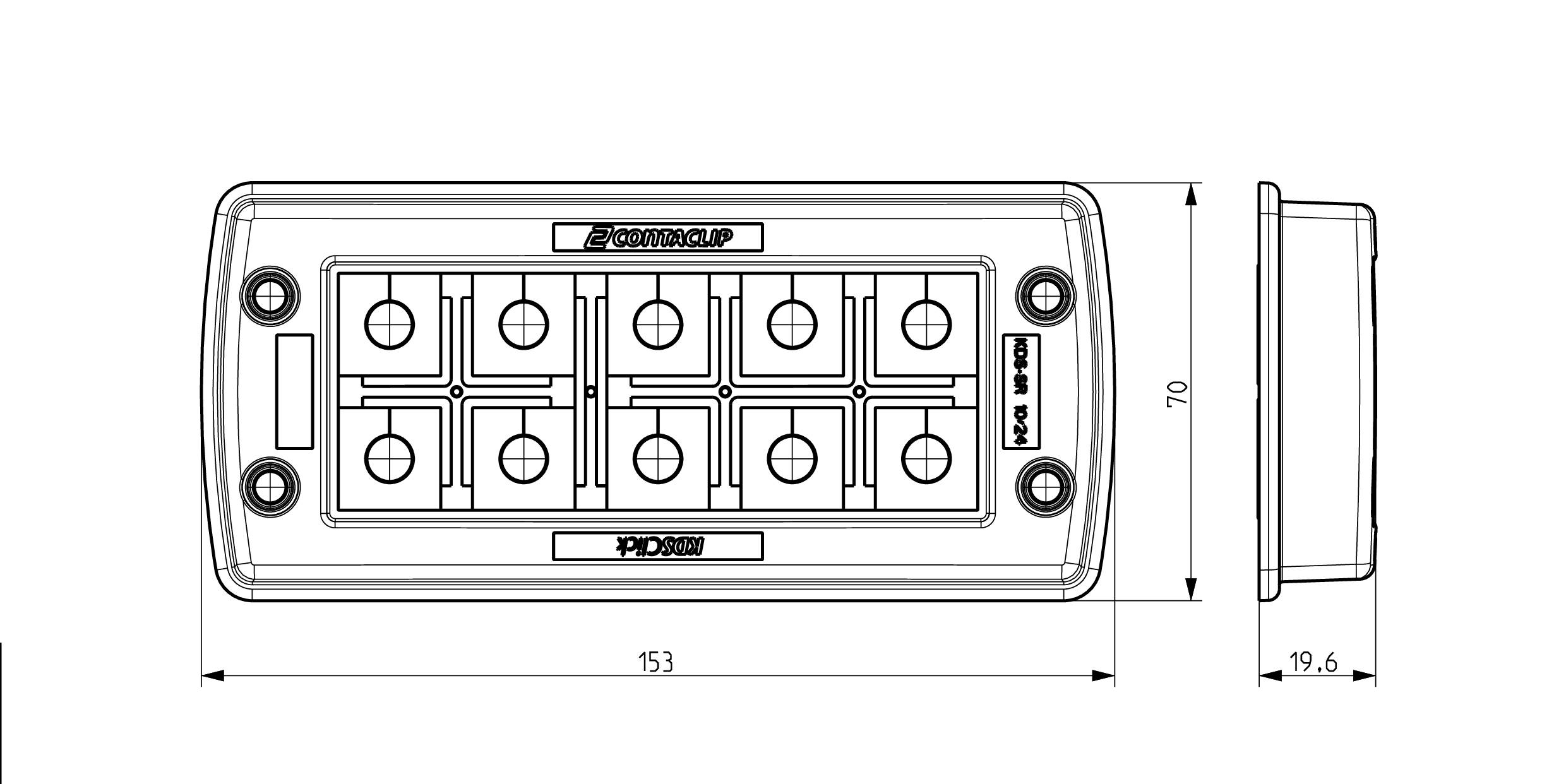

Technical drawing of a rectangular enclosure with nine push buttons. Dimensions: 153 x 70 x 19.6 mm. Top and side view.
1/4
Product type
Cable grommet
Features
with seal
Material
Polyamide 6.6
Mounting hole
M5
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
2 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 31.99 / piece)
€ 31.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

Grommet

Our service for you

Technical specifications

  • Number of screw holes: 4Type of seal: Flexible sealing foam and foamBuilding height 19.6 mmWidth of wall cut-out: 46 mmFlammability class UL 94: V-0Sealing material: Polyurethane baseTightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmLength of wall cut-out 113.5 mmMounting type: ScrewsRAL 9005
Product type

Cable grommet

Features

with seal

Factory colour

Black

Material

Polyamide 6.6

Length

153 mm

Width

70 mm

Height

19.6 mm

Dim

(L x W x H) 153 x 70 x 19.6 mm

Mounting hole

M5

Min. temperature

-40 °C

Max. temperature

+120 °C

IP66

Halogen-free

Yes

Content

1 pc(s)

Manufacturer part #

28504.4

Type

KDS-SR 10/24 BK

RoHS-compliant

Yes

Material properties

fibreglass-reinforced

silicone-free

Mounting hole diameter

5.5 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2617401 CONTA-CLIP KDS-SR 10/24 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2617401 CONTA-CLIP KDS-SR 10/24 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

Description

Cable gland with foamed gasket, mounting type: Screws, length: 153 mm, width: 70 mm, IP66, Color: Black
