CONTA-CLIP KDS-SR 8/16 BK Cable grommet screw fixing, with seal, Cover (black) (RAL 9005) Mounting hole diameter 5.5 mm

Black plastic frame with rectangular cut-out and four mounting holes, likely for an electronic display or device.

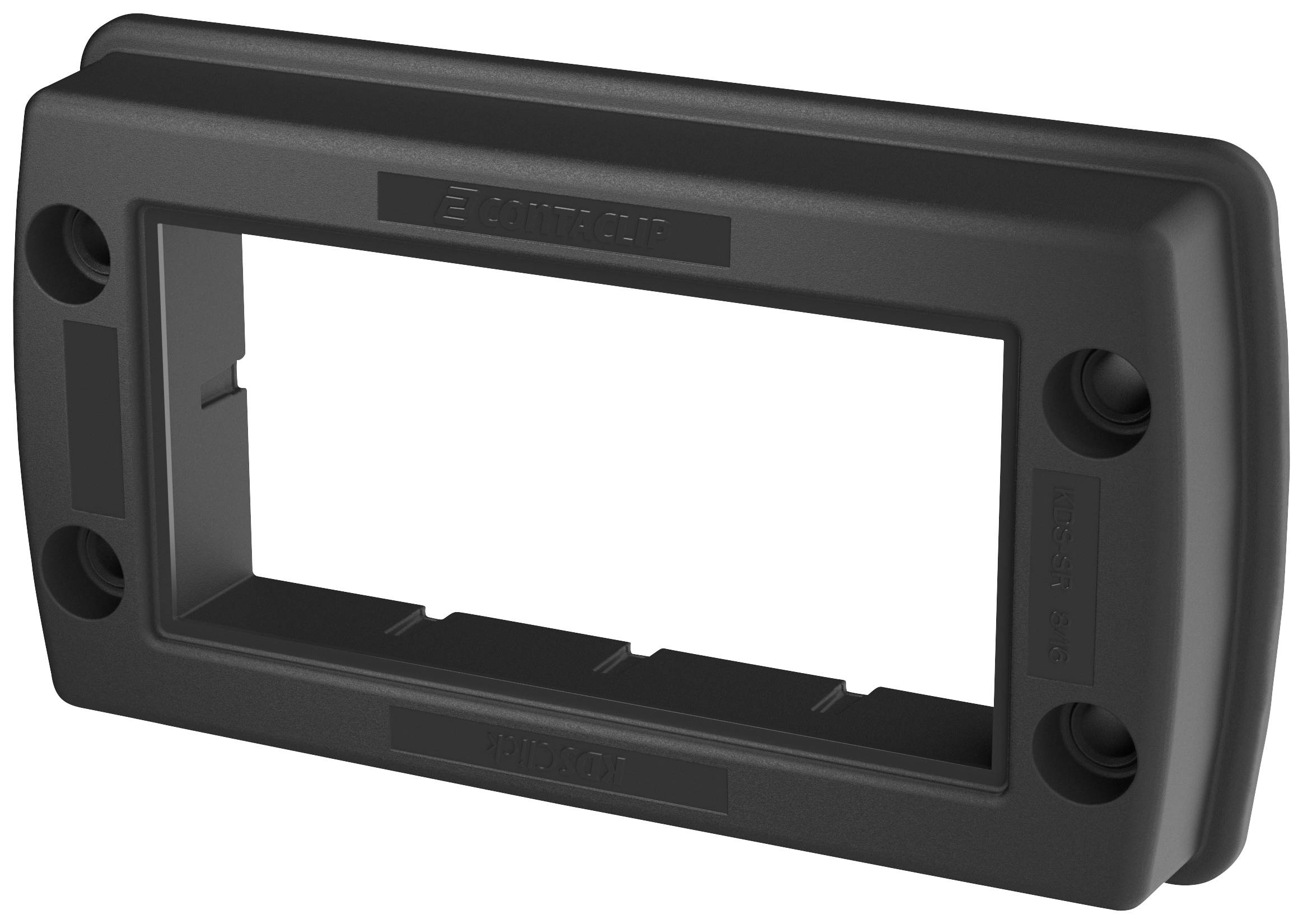

Black rectangular plastic frame with screw holes at the corners, possibly suitable for mounting devices or covers.

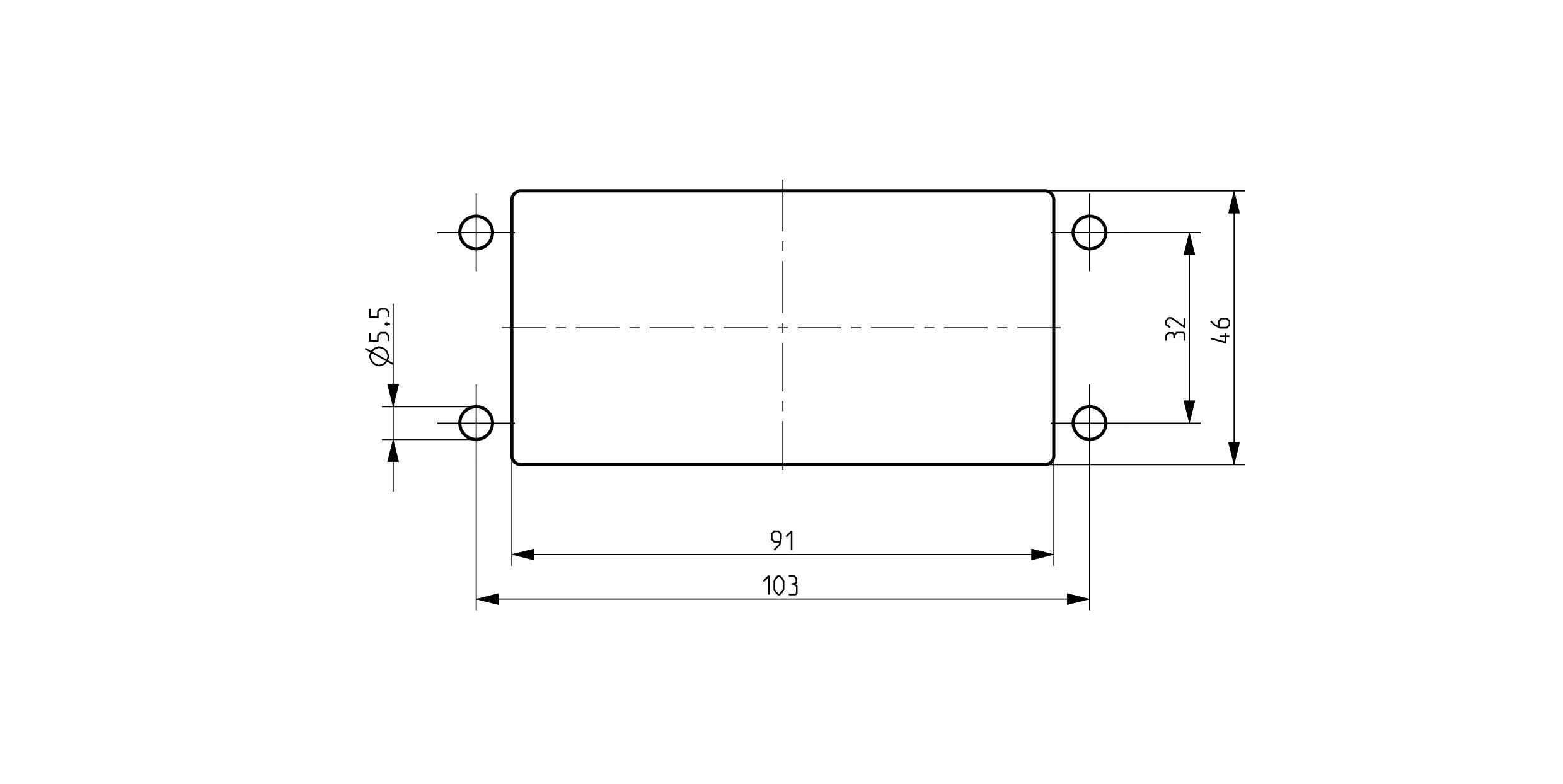

Technical Drawing of a Rectangular Component with Dimensions: 103 mm Width, 32 mm Height, Holes with 5.5 mm Diameter.

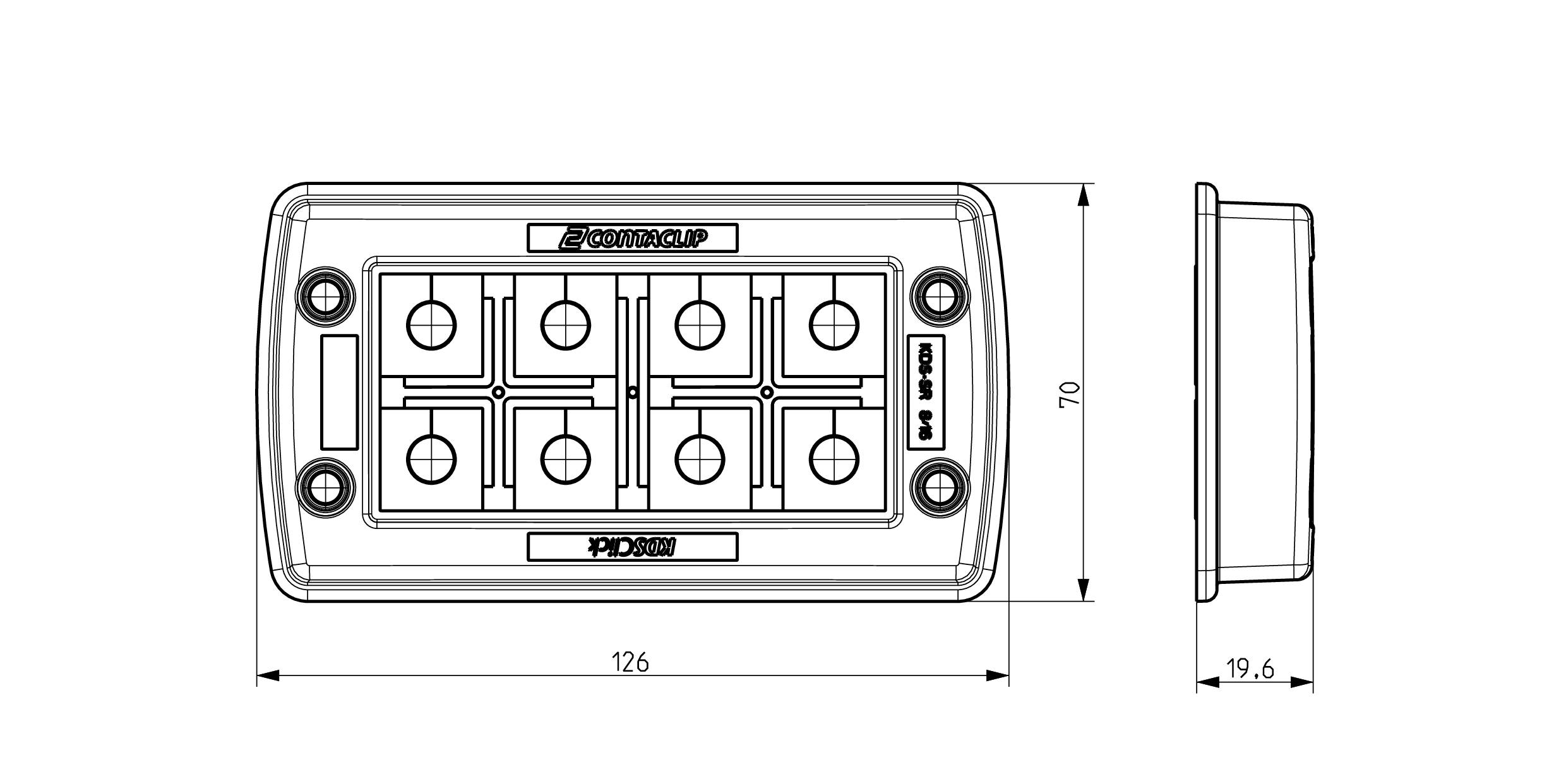

Technical drawing of a rectangular device with dimensions 126 mm x 70 mm x 19.6 mm. At the top it says 'Optimist Plus SX' and 'PF-334090'.
1/4
Product type
Cable grommet
Features
screw fixing
with seal
Cover (black) (RAL 9005)
Material
Polyamide 6.6
Mounting hole
M5
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
14 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 29.99 / piece)
€ 29.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Grommet

Our service for you

Technical specifications

  • Number of screw holes: 4Type of seal: Flexible sealing foam and foamBuilding height 19.6 mmWidth of wall cut-out: 46 mmFlammability class UL 94: V-0Sealing material: Polyurethane baseTightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmLength of wall cut-out: 91 mmMounting type: ScrewsRAL 9005
Product type

Cable grommet

Features

screw fixing

with seal

Cover (black) (RAL 9005)

Factory colour

Black

Material

Polyamide 6.6

Length

126 mm

Width

70 mm

Height

19.6 mm

Dim

(L x W x H) 126 x 70 x 19.6 mm

Mounting hole

M5

Min. temperature

-40 °C

Max. temperature

+120 °C

IP66

Halogen-free

Yes

Content

1 pc(s)

Manufacturer part #

28502.4

Type

KDS-SR 8/16 BK

RoHS-compliant

Yes

Material properties

fibreglass-reinforced

silicone-free

Mounting hole diameter

5.5 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2617377 CONTA-CLIP KDS-SR 8/16 BK Cable grommet screw fixing, with seal, Cover (black) (RAL 9005) Mounting hole diameter 5.5 mm

User & Safety Instructions

User & Safety Instructions 2617377 CONTA-CLIP KDS-SR 8/16 BK Cable grommet screw fixing, with seal, Cover (black) (RAL 9005) Mounting hole diameter 5.5 mm

Description

Cable gland with foamed gasket, mounting type: Screws, length: 126 mm, width: 70 mm, IP66, Color: Black
