CONTA-CLIP KDSI-SET 8/16 BK Cable grommet waterproof, with cable feeder, dust resistant , with seal, screw fixing Mounti

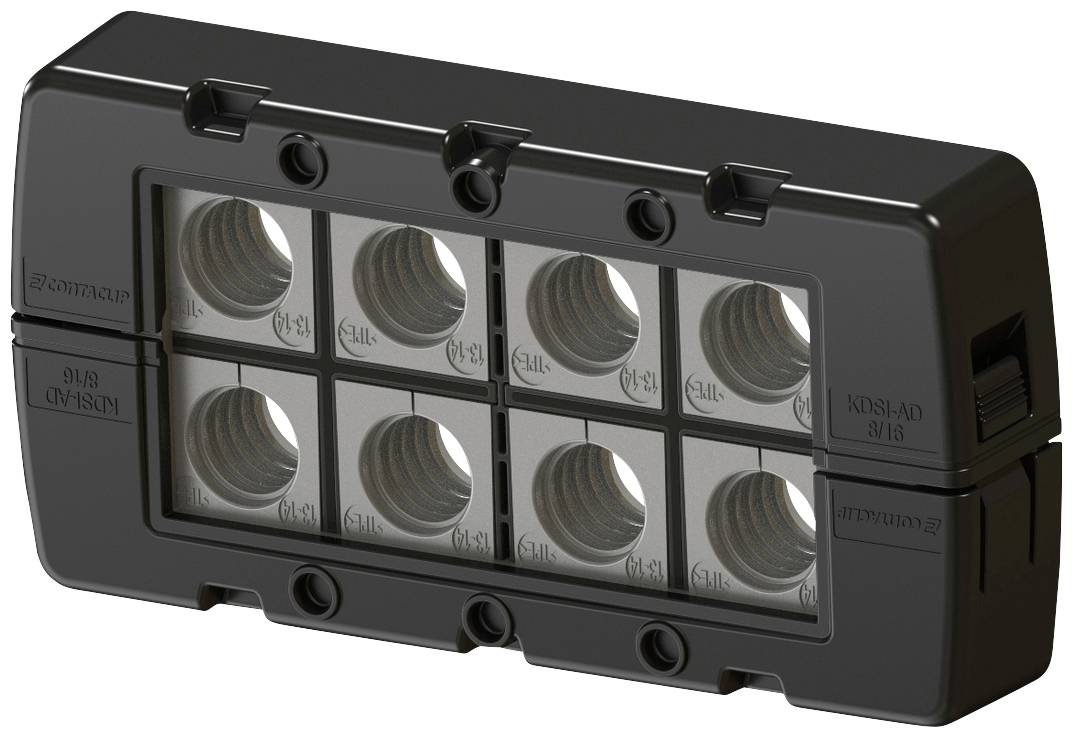

A black cable pass-through frame with eight openings for cable glands in a rectangular enclosure.
Product type
Cable grommet
Features
waterproof
with cable feeder
dust resistant
with seal
screw fixing
Material
Polyamide 6.6
Mounting hole
M5
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 4 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 45.99 / piece)
€ 45.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Cable bushing set

Our service for you

Technical specifications

  • Distance of wall cut-outs min.: 70Number of screw holes: 4Building height 24.2 mmWidth of wall cut-out: 36 mmFlammability class UL 94: V-0Sealing material TPETightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmLength of wall cut-out: 86 mmMounting type: ScrewsMounting instructions: Also suitable for mounting on extended wall openings 91 mm x 46 mm.RAL 9005
Product type

Cable grommet

Features

waterproof

with cable feeder

dust resistant

with seal

screw fixing

Factory colour

Black

Material

Polyamide 6.6

Length

126 mm

Width

64 mm

Height

24.2 mm

Dim

(L x W x H) 126 x 64 x 24.2 mm

Mounting hole

M5

Min. temperature

-40 °C

Max. temperature

+120 °C

IP66

Halogen-free

Yes

Content

1 pc(s)

Manufacturer part #

28892.4

Type

KDSI-SET 8/16 BK

RoHS-compliant

Yes

Material properties

fibreglass-reinforced

silicone-free

Mounting hole diameter

5.5 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2617538 CONTA-CLIP KDSI-SET 8/16 BK Cable grommet waterproof, with cable feeder, dust resistant , with seal, screw fixing Mounti

User & Safety Instructions

User & Safety Instructions 2617538 CONTA-CLIP KDSI-SET 8/16 BK Cable grommet waterproof, with cable feeder, dust resistant , with seal, screw fixing Mounti

Description

Cable gland set, IP66, consisting of: 1xKDSI-SR 8/16, 2xKDS-Inlay 4
